Glass Vial Liquid Filling and Rubber Stoppering Machine
- FOB any Chinese port
- T/T
You May Like
-
Small Pharmaceutical Vial Liquid Filling and Plugging Machines
-
Small Bottle Filling and Capping Machine
-
Liquid Filler and Stopper Machinery
-
Automatic Pharmaceutical Vial Liquid Filling and Plugging Machine
-
High Speed Injectable Liquid Filling Machine
-
Small Oral Liquid Washing Drying Filling Capping Machine
Product Details
| Condition | New | Application | Other, Medical, Machinery & Hardware, Medical, Glass Vial Liquid Filling and Rubber Stoppering Machine | |
| Packaging Type | Bottles | Packaging Material | Glass | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | Glass Vial Liquid Filling and Rubber Stoppering Machine | Power | 20kw | |
| Place of Origin | Hunan, China | Brand Name | FE | |
| Model Number | KGF126 | Dimension(L*W*H) | 5025x1300x2400mm | |
| Weight | 2800kg | Certification | GMP/CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Glass Vial Liquid Filling and Rubber Stoppering Machine
Significant characteristic
1.Comply the weighing detection and automatic feedback information to adjust the unit during the whole procedure. This function avoided the undertected and cross-contamination happened on the same filling and sealing machine when get blank for weighing then put back for filling, the get bottle for weighing then put back for closing.The function effectively suppresses filling errors and cross-contamination.
2. Apply the linear stopper closing which is conducive to laminar flow, which completed avoided the rotary stoppering plate stop the laminar flow and the cross-contamination cauused by the whirling mixed flow, much meet the new GMP requirements.
3. table suraceis simple, no dead space and easy for cleaning

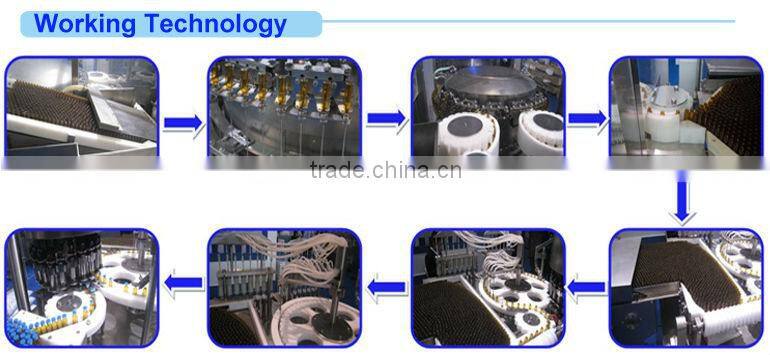

Picture introduction
Optional items
1. Restrict entrance system (RABS C-RABS)
2. Shield (ISOLATER)
3. Wind speed , air pressure, dust, particles, lanktonic bacteria on-line detection
4. On-line photographic detection and removing of unqualfied stoppering
5. Full on-line weighing system
6. Capping device
Main Technique Parameter
| Container size | Glass type plastic vial infusion bottle | Volume:1-500ml |
| Diameter:14-86mm | ||
| Height:30-180mm | ||
| Applicable products | water injection,lyophilized injection powder,infusion medicine and other solution of non terminal sterilization type terminal sterilization | |
| filling error | ≤±1% | |
| Model | filling heads | stoppering heads | capping heads | max capacity(b/h) |
| KGF4/2 | 4 | 2 | 2 | 8000 |
| KGF8/4 | 8 | 4 | 4 | 16000 |
| KGF12/6 | 12 | 6 | 6 | 24000 |
| KGF16/8 | 16 | 8 | 8 | 32000 |
Shipping and Payment
Packing | Export standard package |
MOQ | 1 set |
FOB price | Please contact for new price |
Delivery time | 60days |
FOB port | Shanghai |
Payment terms | T/T,L/C at sight |
