Home > Products > CATV Amplifier > Professional Power Amplifier for Sale with 2 Way Brodband Design

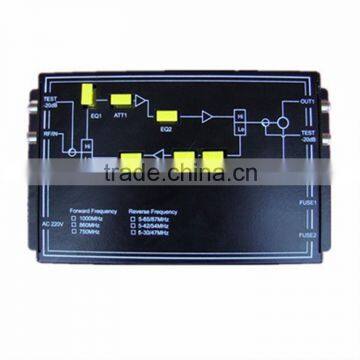

Professional Power Amplifier for Sale with 2 Way Brodband Design

FOB Price

US$ 13 - 21 / Piece

1 Piece(Min. Order)

Port Shanghai/Shenzhen/Tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JZ	Model Number	JZS8330TII/65KA
Type	Home Amplifier	Channels	Other
Place of Origin	Shaanxi, China

Product Description

Specifications

1.power amplifier
2.Competitive price with mini casing
3.Froward frequency:47/87~860/1000MHz
4. two-way broadband design

Professional Power Amplifier for Sale with 2 Way Brodband Design

1.Description:

CATV mini amplifier applies to catv trunk and distribution system.

--- Our JZS series of amplifier has two-way broadband design with dual-stage both forword and reverse.

---With back-stage power dual amplifier output.

---It has characteristics of wide working range and strong output.

2.Technical parameters :

Items	Unit	Technical parameter			Note
Items	Unit	Forward		Reverse	Note
Frequency range	MHz	47/87~862/1000	5~65		Custom other frequency segmentation ways
Rated gain	dB	36/32	20		reference frequency is 862MHz
Operating gain(two-way, AGC)	dB	30			Forward reference frequency point is 862, and reverse for 65MHz
Flatness in band	dB	±0.75	±0.75		Two-way is 0.75
Rated output level(OUT1)	dBuV	Branch108 distribution104	112		when testing, the output level is 110 dBuV, f1=65mhz, f2=63mhz,f3-57mhz
C/CTB	dB	≥ 62			Forward 79 way PAL-D analogue channel
C/CSO	dB	≥ 62	≥55
Noise figure	dB	≤8	≤10
Reflection loss	dB	≥16	≥16
Standard power voltage	V	A:60V B:220V			AC

size

230*123*40

3.Company information:

Business Type:	Manufacturer, Trading Company
	Main Products:	Transmitter,Receiver,Amplifier,EDFA,DVB-C Set Top Box
	Location:	Shaanxi, China (Mainland)
	Year Established:	1999
	Number of Employees:	51 - 100 People
	Total Revenue:	USD7,860,989
	Main Markets:	Domestic Market, South Asia, South America
	Product Certifications:	Certificate of network access for broadcasting equipment,Certificate of network Access for Broadcasting Equipment,Certificate of network Access for Broadcasting Equipment,Certificate of network Access for Broadcasting Equipment,Certificate of network Access for Broadcasting Equipment,Certificate of network Access for Broadcasting Equipment,AOI,Golden customer,The best partner,3C,certificate of abyding by contract,Famous Brand,hi-tech new industrial enterprise

4.Our advantages:

1)Trade Capacity

Domestic Market : 81.30%

South Asia : 18.58%

2)Production Capacity

Factory Size : Below 1,000 square meters

No. of Production Lines : 5

3)R&D Capacity

No. of R&D Staff : 5 - 10 People

Welcome to your inquiry and we can supply you best service.
