CATV mini Indoor Amplifier
- Shanghai/Shenzhen/Tianjin/Beijing
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | JZ | |
| Model Number | JZS8330TII/65KA |
Product Description
Hot sale both in domestic market and in international market. Welcome you inquiry and we supply you serve which you want. Large production line offer you fast delivery. Excellent perfomance equipment offer you best quality.
CATV Mini Amplifier
Description:
CATV mini amplifier applies to catv trunk and distribution system.
--- JZS series of amplifier has two-way broadband design with dual-stage both forword and reverse.
---With back-stage power dual amplifier output.
---It has characteristics of wide working range and strong output.
Technical parameters:
Items | Unit | Technical parameter | Note | ||
Forward | Reverse | ||||
Frequency range | MHz | 47/87~862/1000 | 5~65 | Custom other frequency segmentation ways | |
Rated gain | dB | 36/32 | 20 | reference frequency is 862MHz | |
Operating gain(two-way, AGC) | dB | 30 |
| Forward reference frequency point is 862, and reverse for 65MHz | |
Flatness in band | dB | ±0.75 | ±0.75 | Two-way is 0.75 | |
Rated output level(OUT1) | dBuV | Branch108 distribution104 | 112 | when testing, the output level is 110 dBuV, f1=65mhz, f2=63mhz,f3-57mhz | |
C/CTB | dB | ≥ 62 |
| Forward 79 way PAL-D analogue channel | |
C/CSO | dB | ≥ 62 | ≥55 |
| |
Noise figure | dB | ≤8 | ≤10 |
| |
Reflection loss | dB | ≥16 | ≥16 |
| |
Standard power voltage | V | A:60V B:220V | AC | ||
| size | mm | 230*123*40 |

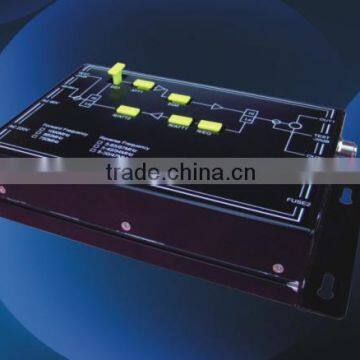

Picturers:
