Home > Products > Fireproof Rolling door motor > Industrial Roll Top Shutter Door Motor 800KG

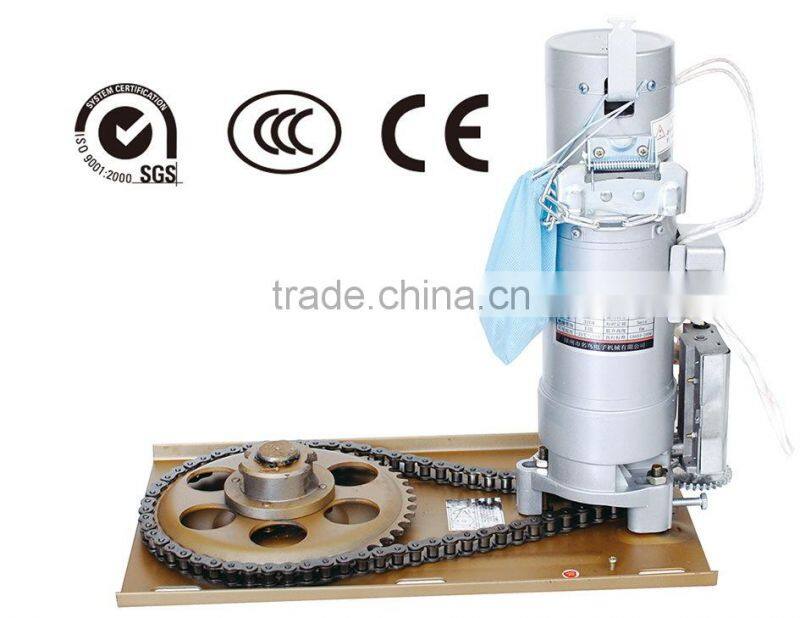

Industrial Roll Top Shutter Door Motor 800KG
- XIAMEN
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | XDS | |
| Model Number | XDS-FP-800-1P |
Product Description
Introduction of our company
We are professional industrial industrial roll top shutter door motor manufacturer with more than 12 years' experience. There is no question that we are the one who have the seniority and authority in industrial roll top shutter door motor industry. We believe that we can make the most suitable products for you. The following are what we can provide:
- manufacture AC, DC and AC&DC roll top shutter door motor.
- The industrial roll top shutter door motor can hold 300-2000kg.
- 110V/220V/380V are available for our industrial roll top shutter door motor.
- with four relays inside to make sure our industrial roll top shutter door motor can save more power.
- 100% copper material inside the motor, so it has a larger capacity and it's more durable than other motors.
- Now we have the following functions: infrared sensor, ups, rebound automatic when meet obstacle, alarm function, lighting and so on…
- If you want to make your own design, we can provide OEM service.
- our industrial roll top shutter door motor has got CE, CCC, SGS, ROHS certificates. High quality has been confirmed.
Description for Industrial Roll Top Shutter Door Motor
1.Powerful starting strength, loading up to 1500kg
2.Available in 3-phase (FP-500-3P,FP-600-3P,FP-800-3P,FP-1000-3P,FP-1300-3P)
3.Overworking for a short time
4.Overheat protection: if the temperature inside the motor is over 110℃, it stops working automatically. And it can work again if temperature returns to <70 ℃.
5.Limit switch enables precise adjustment in up and down positions
6.Electric and manual operations
7.Release chain in case of power failure
8.When the roller chain is break off, the safety lock device can protect vehicle or people from danger.
Technical Parameters for Industrial Roll Top Shutter Door Motor
Model | Lifting force (kg) | Max lifting height (m) | Power (W) | Current (A) | Output torque (Nm)
| Output turn speed (r/min) | Chain No. | Weight of host motor (kg) |
Single phase industrial roll top shutter door motor | ||||||||
XDS-FP-1P-300 | 300 | 7.5 | 250 | 3.3 | 168 | 5.2 | 08B | 11.6 |
XDS-FP-1P-500 | 500 | 8 | 370 | 3.9 | 343 | 6.2 | 10A | 12.3 |
XDS-FP-1P-600 | 600 | 8 | 370 | 3.9 | 412 | 5.2 | 10A | 12.6 |
XDS-FP-1P-800 | 800 | 8.5 | 400 | 4.5 | 607 | 3.4 | 10A | 15.5 |
Three phase industrial roll top shutter door motor | |||||||
Type | Rated Power (W) | Rate Load | Max raising height (M) | Rolling door maximum overall (m) | Chain number | ||
Lifting Force (KG) | Output torque (N.M) | Output rotate speed(R/.MIN) | |||||
XDS-FP-3P-(1500Kg) | 800 | 1500 | 1220 | 3.8 | 13 | 0.65 | 12A |
XDS-FP-3P-(1300Kg) | 600 | 1300 | 1050 | 4.2 | 13 | 0.65 | 12A |
XDS-FP-3P-(1000Kg) | 400 | 1000 | 810 | 4.2 | 10 | 0.65 | 12A |
XDS-FP-3P-(800Kg) | 300 | 800 | 650 | 3.4 | 10 | 0.54 | 10A |
XDS-FP-3P-(600Kg) | 250 | 600 | 412 | 3.4 | 6 | 0.48 | 10A |
How to Install the Industrial Roll Top Shutter Door Motor?
Certification for Our Industrial Roll Top Shutter Door Motor
How to Make a industrial roll top shutter door motor?
Now show you our workshop & factory ^.^
Why Choose US?
1. Free samples are available
2. Customization is warmly welcome
3. Vast selection of colors and sizes
5. Well-trained and experienced sales staffs will reply all your concerns in fluent English.
6. OEM,ODM services are welcomed, and we can help you to print your logo, company information etc
on our products and package .
7. Protection of your sales area, ideas of design and all your private information.
8. Delivery by air mail or ship for your orders.
9. With years of manufacture and promotion experience in global market, XDS
brings you profit and great success!
1. Are you manufacturer or Trade Company?
Thanks for your question. We are OEM professional and leading gate opener factory, founded in 2003.
2. What's the order process?
a. Inquiry--- The more information you provide, the suitable product we can provide for you! The information such as the gate weight, width, height, power source or other specials you give us will be more appreciated.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Sample confirmation---sample will be shipped out in 2 days.
e. Payment terms--- T/T 30% in advanced, balanced against copy of Bill of Lading.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
3. What terms of payment you use?
T/T, Western Union, L/C
4. Do you have any instant chat tool?
Thank you for your time to scan our website. Hope you can know more about our industrial roll top shutter door motor and our company. We warmly welcome you to visit us and hope we can built business realtionship with you in the near future. Please feel free to contact us.
