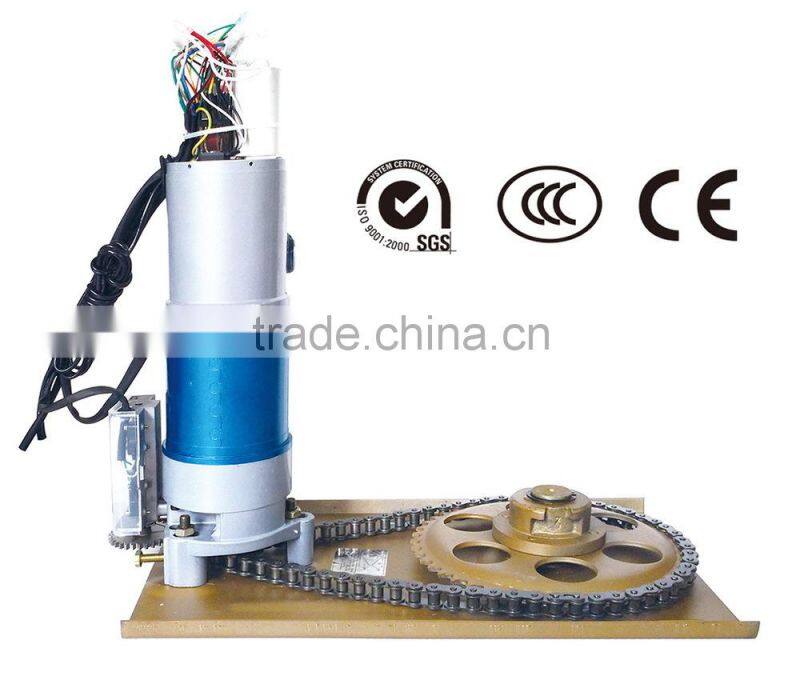

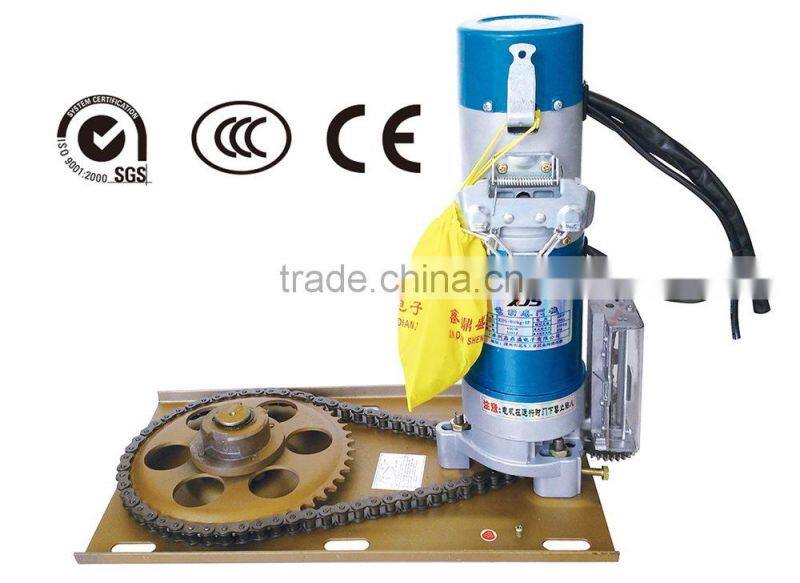

AC Gear Rolling Shutter Door Motor With Three Phase
- XIAMEN
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | XDS | |
| Model Number | XDS-600-3P |
Product Description
Introduction of our company
We are professional gear rolling shutter door motor manufacturer with more than 12 years' experience. There is no question that we are the one who have the seniority and authority in gear rolling shutter door motor industry. We believe that we can make the most suitable products for you. The following are what we can provide:
- manufacture AC, DC and AC&DC gear rolling shutter door motor.
- our rolling door motors can hold 300-2000kg.
- 110V/220V/380V are available for our gear rolling shutter door motor.
- with four relays inside to make sure our gear rolling shutter door motor can save more power.
- 100% copper material inside the motor, so it has a larger capacity and it's more durable than other motors.
- Now we have the following functions: infrared sensor, ups, rebound automatic when meet obstacle, alarm function, lighting and so on…
- If you want to make your own design, we can provide OEM service.
- our gear rolling shutter door motor has got CE, CCC, SGS, ROHS certificates. High quality has been confirmed.
Description for AC Gear Rolling Shutter Door Motor
*Notice: Please read the instructions carefully before installation.
1.The gear rolling shutter door motor has compact construction, large torque and run without noise.
2.The gear rolling shutter door motor comes with national patent of Chain-break protection.
3.The motor will not burn down for the protection of thermal effect
4.Separate circuit control ensures the security
5.Safety brake,accurate limited control positioning,with double limit switch protection, prevent door
over roll-up.
6.UPS automatic system is available,No bother of power failure

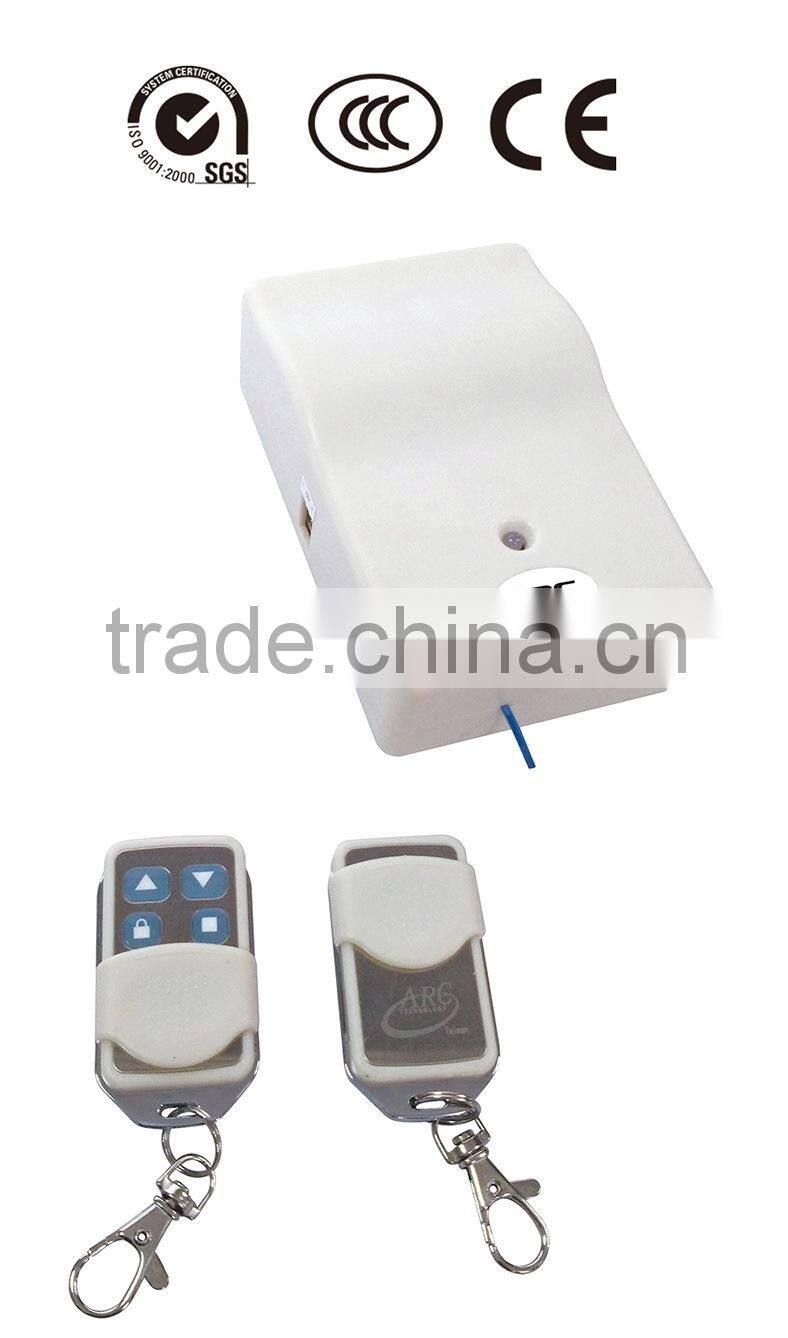

7.Can work with remote controller
8.Easy to install, easy to maintenance and long useful life.
Main Specifications for AC Gear Rolling Shutter Door Motor
Type | Power source | Rated frequency | Rated Power (W) | Rate Load | Output rotate speed (R/.MIN) | Max raising height (M) | Short-team ration (MIN) | ||||||||||
Rated current (A) | Lifting Force (KG) | Output torque (N.M) | |||||||||||||||
Single phase rolling shutter door motor technical | |||||||||||||||||
XDS-1P-300 | 220V | 50Hz | 180 | 2.5 | 300 | 168 | 5.0 | 6.0 | 6 | ||||||||
XDS-1P-400 | 220V | 50Hz | 250 | 2.7 | 400 | 225 | 5.0 | 6.0 | 6 | ||||||||
XDS-1P-500 | 220V | 50Hz | 370 | 2.9 | 500 | 345 | 5.0 | 6.0 | 6 | ||||||||
XDS-1P-600 | 220V | 50Hz | 370 | 3.0 | 600 | 412 | 5.0 | 10.0 | 6 | ||||||||
XDS-1P-800 | 220V | 50Hz | 400 | 4.0 | 800 | 647 | 4.6 | 10.0 | 6 | ||||||||
XDS-1P-1000 | 220V | 50Hz | 400 | 4.7 | 1000 | 810 | 4.6 | 10.0 | 6 | ||||||||
Three phase rolling shutter door motor technical | |||||||||||||||||
XDS-3P-300 | 380V | 50Hz | 180 | 0.8 | 300 | 168 | 5.2 | 6.0 | 10 | ||||||||
XDS-3P-500 | 380V | 50Hz | 250 | 1.0 | 500 | 345 | 5.2 | 6.0 | 10 | ||||||||
XDS-3P-600 | 380V | 50Hz | 250 | 1.0 | 600 | 412 | 5.2 | 6.0 | 10 | ||||||||
XDS-3P- 800 | 380V | 50Hz | 400 | 1.1 | 800 | 647 | 4.6 | 10.0 | 10 | ||||||||
XDS-3P-1000 | 380V | 50Hz | 400 | 1.5 | 1000 | 810 | 4.2 | 10.0 | 10 | ||||||||
XDS-3P-1300 | 380V | 50Hz | 600 | 2.0 | 1300 | 1050 | 4.2 | 13.0 | 10 | ||||||||
XDS-3P-1500 | 380V | 50Hz | 600 | 2.5 | 1500 | 1520 | 4.2 | 13.0 | 10 | ||||||||
XDS-3P-2000 | 380V | 50Hz | 750 | 4.5 | 2000 | 2450 | 3.6 | 13.0 | 10 | ||||||||
Installation
Certification
Now show you our workshop & factory ^.^
Why Choose US?
- OEM: we can open new mould according to original sample or technical drawings.
- Price: competitive and best EXW price. (The more you order, the lower the will be).
- Warranty: one year!!
- Aftersale: we promise to provide the most professinal asftersale service for our gear rolling shutter door motor.
Thank you for your time to scan our website. Hope you can know more about our gear rolling shutter door motor and our company. We warmly welcome you to visit us and hope we can built business realtionship with you in the near future. Please feel free to contact us.
