Backup Battery Shutter Steel Door Motor
- XIAMEN
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | XDS | |
| Model Number | XDS-DC-500 |
Product Description
Introduction of our company
We are professional shutter steel door motor manufacturer with more than 12 years' experience. There is no question that we are the one who have the seniority and authority in shutter door motor industry. We believe that we can make the most suitable products for you. The following are what we can provide:
- manufacture AC, DC and automatic AC&DC rolling shutter door motor.
- our rolling shutter door motor can hold 300-2000kg.
- 110V/220V/380V are available for our rolling shutter door motor.
- with four relays inside to make sure our rolling shutter door motor can save more power.
- 100% copper material inside the motor, so it has a larger capacity and it's more durable than other motors.
- Now we have the following functions: infrared sensor, ups, rebound automatic when meet obstacle, alarm function, lighting and so on…
- If you want to make your own design, we can provide OEM service.
- our rolling shutter door motor have got CE, CCC, SGS, ROHS certificates. High quality has been confirmed.

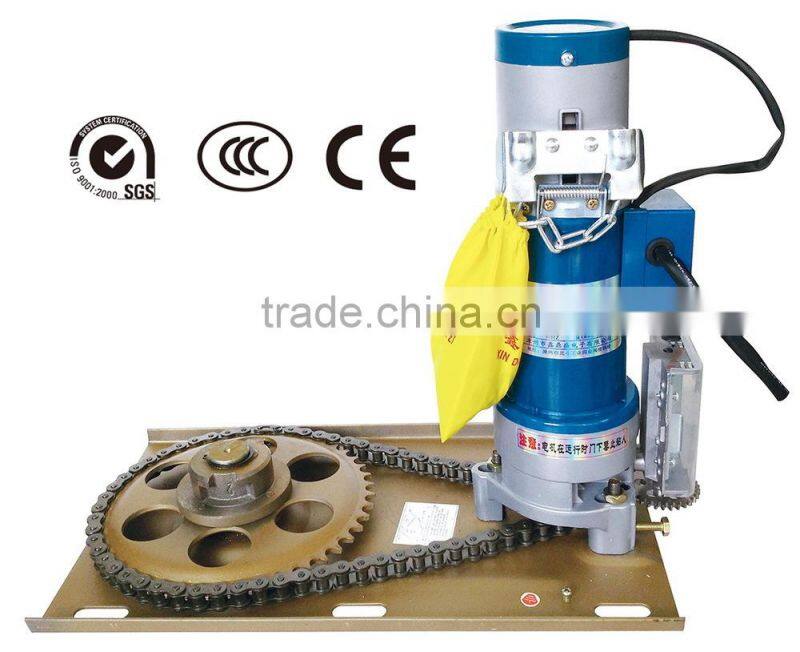

Description for Backup Battery Shutter Steel Door Motor
*Can also be used when the power was cut off. The battery backup shutter door motor can run at least 20 times without normal power supply.
*Notice: Please read the instructions carefully before installation.
Backup battery shutter steel door motor is a new product which is developped by our company. We have many new patent technologies for this product,. Thus, our backup battery shutter steel door motor has better outstanding performance and it's much easier to install. What's more, it can be more reliable.
1.100% copper material inside the battery back up shutter door motor.
2.Transmission mechanism has reasonable design, advanced technology and specially developed grease. The gear is not easy to wear. It's durable, low noise and small shaking.
3.Protective measures : Placed inside the motor overheat protector, overheating protection function.
4.Battery backup (UPS) is the market used batteries for universal product (4.5 Ah / 12v); safe voltage: 24V.
5.It is available to match with Storage power(Battery)DC operation, in the case without electricity. AC&DC drive roller shutter door motor can run more than 20 times.
6. Backup battery shutter steel door motor with low voltage and strong power. Adopt the machine limit device, simple adjusting and sensitive location controller. Adopt currency power in regular state. Auto turn to battery supply while the power is broken.
7. Can add wireless door magnetic and buzzer, realize alarm function.
Main Specifications for Backup Battery Shutter Steel Door Motor
Type | Adaptable Voltage | Rated Power (W) | Rate Load | ||
Lifting Force (kg) | Output Torque (N.m) | Output Rotate Speed (r/min) | |||
XDS-DC-300 | DC24V | 180 | 300 | 240 | 3.7 |
XDS-DC-500 | DC24V | 230 | 500 | 345 | 3.7 |
XDS-DC-600 | DC24V | 250 | 600 | 412 | 3.7 |
XDS-DC800 | DC24V | 380 | 800 | 650 | 3.9 |
Remark: If you need any special design, please feel free to send us your design or tell us your request.
How to install a rolling shutter door motor?


How to make rolling shutter door motor?
Now show you our workshop & company ^.^
- OEM: we can open new mould according to original sample or technical drawings.
- Price: competitive and best EXW price. (The more you order, the lower the will be).
- Warranty: one year!!
- Aftersale: we promise to provide the most professinal asftersale service for our rolling shutter door motor.
Thank you for your time to scan our website. Hope you have got more infomation about our backup battery rolling shutter steel door motor and our company. We warmly welcome you to visit us and hope we can built business realtionship with you in the near future. Please feel free to contact us.
