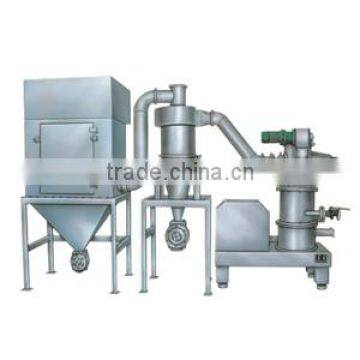

JCFJ Series Inner-Grading Mechanical Crusher
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | Hongda | |
| Model Number | JCFJ Series |
Product Description
Specifications
1. made of stainless steel2. CE and ISO approved
3. pre-grading and grading check function
4. super fine grinder
Features:
1) The best feature is pre-grading function and grading check function; these
functions make it possible to release the satisfied particle directly so as to
enhance the grinding efficiency and reduce material wastage
2) Other features includes: high speed flow rate, high grinding efficiency, low
energy consumption, few material wastage, capable of grinding material of
great hardness, easy to adjust the fineness of the powder; easy operation,
fully sealed chamber, wide application, stable and reliable operation
Packing:
Plastic film and wooden case
Model
| Feeding size
| Grinding granularity (mesh)
| Motor power
| Spindle speed (r/min)
| Rotating speed of grading wheel (r/min)
| Production Capacity (kg/h)
| Blast of fan
| Press of fan
| Weight (kg)
| Overall dimension (mm)
| |||
200-1000
| crush
| grade
| draught
| discharge
| |||||||||
JCFJ-400
| <5mm
| 11 | 7.5 | 15 | 0.75 | 5600 | 6000 | 100-500 | 1200 | ≈1300
| 1200 | 5000*1200*2400 | |
JCFJ-600
| <10mm
| 30 | 11 | 30 | 1.5 | 3550 | 4000 | 200-1000 | 2400 | ≈1300
| 2000 | 6000*1200*2400 | |
JCFJ-1000
| <15mm
| 75 | 15 | 45 | 2.2 | 2250 | 2400 | 500-3000 | 6000 | ≈1200
| 5700 | 8000*1500*2400 | |
