Home > Products > Hongda Crushers and Grinders > B Series Cyclone-seperating Pulse Dust Collecting Crushing Set
B Series Cyclone-seperating Pulse Dust Collecting Crushing Set
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Hongda | |
| Model Number | B Series | Application | Powder | |
| Type | Other, grinder | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.low feed hopper2. no dust flying
3. CE and ISO approved
4. new GMP standard
5. discharge continuously
Main Application :
This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust-collecting and continuous-discharge into a unit.
Working Principle :

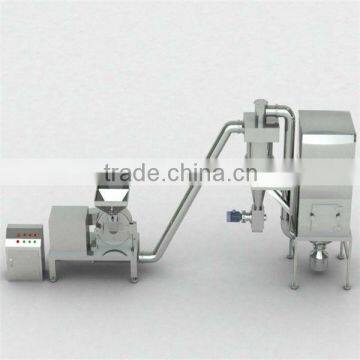

This machine is made up of crusher, cyclone separator, pulse dust collecting box and blower fan etc.. By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then discharges through gate blower, dust come into the pulse dust collecting box, filtrated and recycled by the filter cylinder. The crushing size can be adjusted by the screen. Designed by the standard of "GMP" the whole machine is made of stainless steel, and there is no flying dust during the process of production.
Technical Parameters :
| Model | Production Capacity | Feeding Size | Crushing Fineness | Spindle Speed | Crushing motor | Dust collecting motor | Discharge Motor | overall | weight |
|---|---|---|---|---|---|---|---|---|---|
| 20BIV,V,VI | 60-150kg/h | 6mm | 20-120mesh | 4500r/min | 4kw | 1.5kw | 0.75kw | 2800*850* 2300mm | 580kg |
| 30BIV,V,VI | 100-400kg/h | 6mm | 20-120mesh | 3800r/min | 5.5kw | 2.2kw | 0.75kw | 3200*850* 2380mm | 880kg |
| 40BIV,V,VI | 160-1000kg/h | 10mm | 20-120mesh | 3400r/min | 11kw | 3kw | 0.75kw | 3500*900* 2380mm | 1200kg |
| 60BIV,V,VI | 300-1500kg/h | 12mm | 20-120mesh | 2800r/min | 18.5kw | 7.5kw | 1.1kw | 3850*1100* 2380mm | 2000kg |
| 80BIV,V,VI | 500-2200kg/h | 15mm | 20-120mesh | 2200r/min | 37kw | 11kw | 1.5kw | 4800*1100* 2500mm | 3000kg |
| 100BIV.V.VI | 2000-8000kg/h | 15mm | 20-120mesh | 1500r/min | 55kw | 18.5kw | 2.2kw | 9980*1280* 2800mm | 6000kg |
(P.S.:IV-mild steel,V-stainless steel,VI-stainles steel with water cooler) |
Contact Us
- Jiangyin Hongda Power Equipment Co., Ltd.
- Contact nameJohnson Sun Chat Now
- Phone86-510-86906308
- AddressNo. 68, Jincheng Road, Zhouzhuang Town
