High Capacity Wood Sawdust Dryer Rotary Dryer
- Qingdao port

You May Like
-


Sand Mining Rotary Dryer / Drum Dryer for Sale
 -


Grain Rotary Dryer Main Dryer Machine
 -


Joying Machinery Dryer Coal Slurry Rotary Dryer
 -


Brewer's Grains Dryer, White Lees Dryer and Vinegar Vinasse Rotary Dryer
 -


Supply Fertilizer Dryer Rotary Dryer / Dryer Equipment/ Drum Dryer
 -


New Deisign 80 Vertical Crusher for Hard Raw Material

Product Details
| Condition | New | Type | Drum Drying Equipment | |
| Place of Origin | Henan, China | Brand Name | JOYING | |
| Model Number | HGT 1000*10 | Voltage | 380v | |
| Power(W) | 4kw | Dimension(L*W*H) | Diameter 1m, Length 10 m | |
| Weight | 6000kg, 6000kg | Certification | CE certification, CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High capacity Wood sawdust dryer Rotary dryer

Production Introduction:
Rotary drier is used to dry slag, clay, limestone; it is mainly used for cement, chemical, metallurgical, building materials industries.
Its advantages are as follows: high dry capacity, smooth rotation, low energy consumption, easy operation, high output and so on.

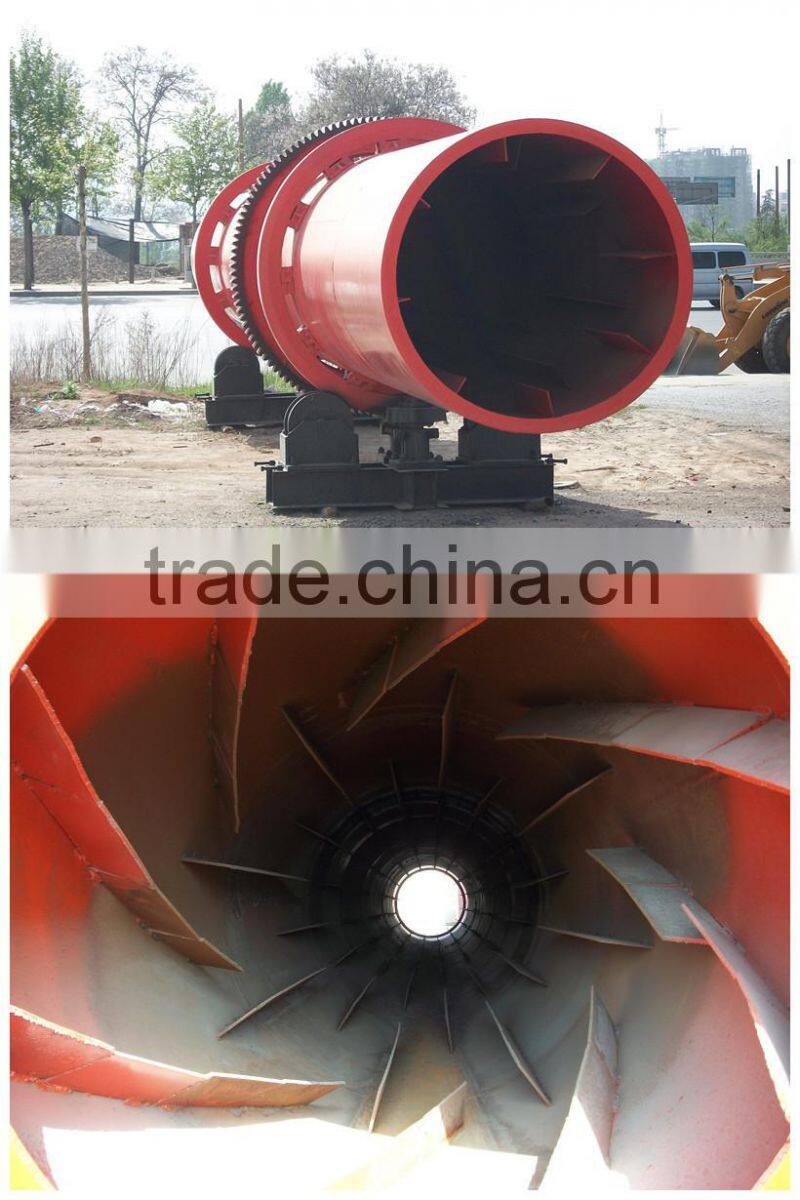

Rotary drier mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc.

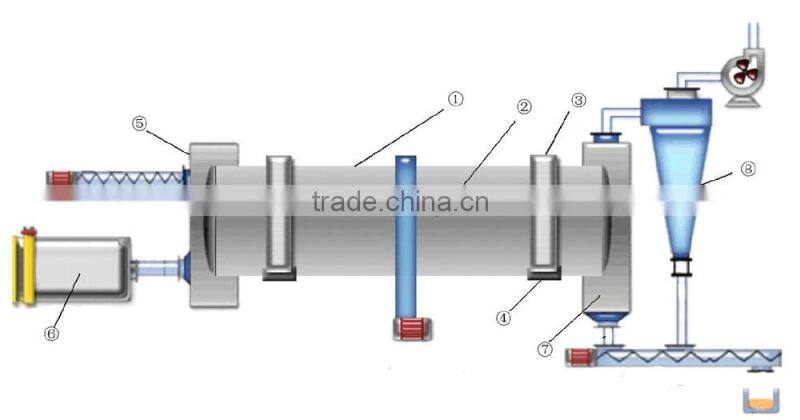

Its principle of operation: the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dried.
Note:
Drum rotational speed: 3-7r/m
Drum tilted angle: 3-5°
Technical Parameter:
Model  | HGT-1000 x 10  |
Power  | 4kw  |
Capacity  | 1~3ton/h  |
Diameter of feed materials  | 0-200*240 mm  |
Working Temperature  | stove 300℃  |
Consumption of wood waste  | 20-30kg/h  |
Overall size  | Φ1m, length 10 m  |
Drum Volume(m³)  | 7  |
Weight  | 6000kg  |

Wood sawdust rotary dryer advantages:
1)  Reasonable structure;
2)  Low consumption, energy saving;
3)  Easy to maintain, easy to operate;
4)  Quick deliveries, solid construction;
5)  Novel design, fine manufacturing;
6)  Customized for every application;
7)  Best price on the market.
Our payment terms:
1. We usually accept T/T.
2. We take pictures of finished products before delivery.
Ways of packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Delivery
1.Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available.
2.We will remind you before boat arrival.
