Single door aluminum aging furnace L=6m.

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Giansun
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

We can produce 300T-3600T 6m,12m,18m single door or double door aging furnace,send us inquiry,and back you a success.

Parameters of 6m single door aging furnace

Product	Description
Basket size	60001000650mm
Chamber size	750023002300mm
Basket distribution	6 baskets, 2 rows each level, 3 levels in total
Max length of profile	6.5meters
Overall size of furnace	860027003400mm (furnace door and circulation fan is not included)
Thickness of liner	Side: 200mm
	Top: 160mm
	Bottom: 120mm
Circulation fan	Air volume:65000 m3/h, motor power: 30 KW
Circulation fan	The fan is frequency controlled to save energy
fuel	Gas, directly heating model
Rated working temp.	205°C
Max working temp.	250°C
Furnace door	Single door, electric lift
Furnace door	Self locked
Working time	Less than 90 min (from room temp. to rated temp.)
Temp. difference after keeping 30 min	Less than 5°C
Temp. control	4 K type thermocouple, the temp. automatically displayed on the screen.
Temp. control	Automatically temp. control, with alarm system
Furnace structure	Stand: made of high quality steel
	Sealing plate: Q235 plate
	insulation material: high quality alumina silicate fibre
Surface temp. of the furnace	20°C higher than room temperature at most

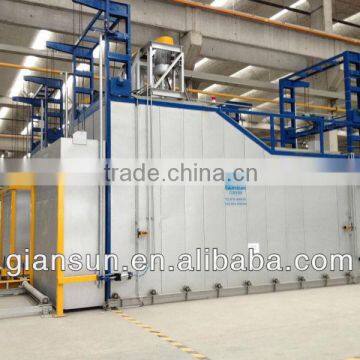

Pictures of aging furnace:

Total aluminum extrusion production line:

All items:

1,Billet heating furnace with hot log shear;

http://giansun.en.china.cn/search/product?SearchText=billet+heating+furnace

2,Aluminum extrusion press;

http://giansun.en.china.cn/search/product?SearchText=hydraulic+extrusion+press

3,Quenching system;

4,Handing table(Runout table-catching table-puller-cooling table-stretcher table-stretcher-store table-profile saw table-profile saw-saw gauge table-finishing saw)

http://giansun.en.china.cn/search/product?SearchText=handing+system

5,Puller

http://giansun.en.china.cn/search/product?SearchText=single+head+puller

6,stretcher

7,Aging furnace

http://giansun.en.china.cn/search/product?SearchText=aging+furnace

8,Control system

9,Die furnace

http://giansun.en.china.cn/search/product?SearchText=die+oven

We can do complete extrusion line for you,and our engineers are ready for sever you.

Factory:

Project case:
