Home > Products > Carbonated Drink Production line > User friendly Carbonated / soda / cola drinks filling machine
User friendly Carbonated / soda / cola drinks filling machine
- 10 Set / Sets per Month
- port in China for Carbonated / soda / cola drinks filling machine
- T/T
You May Like
-
Customized Carbonated drinking making machine / plant CE
-
Sheenstar Carbonated beverage filling machine / plant CE
-
High design quality Carbonated beverage filling line / machine
-
good quality carbonated drink filling machine
-
2016 carbonated beverage packing line
-
Stable operation automatic soft drink filling Machine \ Machinery \ equipment Quality Choice
Product Details
Condition | New | Place of Origin | Jiangsu, China | |
Brand Name | SHEENSTAR | Model Number | DCGF | |
Voltage | 220V/380V | Power(W) | 3000--10000W | |
Weight | 2000----9500KG | Dimension(L*W*H) | 2080*1560*2130 etc. | |
Processing Types | COLA,CARBONATED WATER,SODA WATER | Certification | BV CE ISO | |
Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2015 Sheenstar Carbonated / soda / cola drinks filling machine

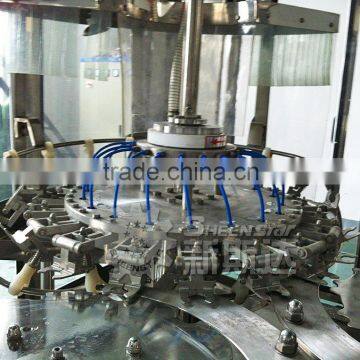

This Carbonated Water filling machine is mainly used in washing, filling and sealing gas containing beverage into bottles such as carbonated drink, cola, soft drinks ect.The machine is based on the introduction of foreign technology, combined with our years of manufacturing experience. The machine combines filling and capping, with scientific and rational design, beautiful shape. It is Easy in maintenance, with high automation. It is a automatic filling & capping machine.With high precision mechanical filling valves,our filling machine stops vacuum when there are no bottles. This machine is equipped with external mechanical valve,inside which there is no spring or sealing element. It makes use of combined transmission by open gear and gearbox,and adopts frequency conversion stepless speed control,extending the speed modulating scope. It has an automatic lubricating device so that the lubrication points can be automatically lubricated regularly in time.Also,our beer filling machine has high transmission efficiency,low noise and long life. In case of the blowout due to poor quality of the bottles during gas or beer filling,the filling valve will automatically close and the auto-cleaning device will work to treat the broken bottles.The sealer has the function of automatic reloading,which helps lower the bottle breakage.The movement of the beer bottle and capping heads is driven by electricity in order to fit bottles of different sizes.
Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.
Filling: counter pressure filling with holding bottle neck.
Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
We are the carbonated machinery manufacturer from China.
main technical data
Model: | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-12 | DCGF40-40-12 | ||
Capacity :500ml | 5000 | 8000 | 12000 | 16000 | ||
Bottle shape: | roud or square | |||||
PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | |||||
Cap: | PE srew cap | |||||
Filling precision: | ≤±5mm | |||||
Filling pressure:(Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | ||
Rinsing pressure:(Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | ||
Filling volume :(L) | 3.5 | 4 | 6 | 8 | ||
Overall size:(mm) | 2450*1800 *2350 | 2780*2200 *2350 | 3600*2650 *2350 | 3800*2950 *2400 | ||
Weight: (kg) | 3500 | 4500 | 5500 | 6500 |
flow chart
products
Zhangjiagang Sheenstar Technology Co., Ltd. is a professional manufacturer of beverage packaging solutions. We supply water treatment, water filling production line, carbonated drink making filling production line, juice making filling production line, 5 gallon filling production line, labeling machine and shrink packing machine. With our machines, bottles can be plastic bottle, glass bottle barrel and cans. In other words, customized machines can be produced according to client's requirements.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
3.If we get the permission of the customers who have bought the machines from us,we can provide you their contact imformation and you can go and visit.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our
professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout
and so on.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine
quickly
2.When you finish the Preparation conditions,our fast and professional after service engineer team will go to
your factory to install the machine,give you the operating manual,and train your employee until they can
operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory
for some time.
4.We provide one year warranty with spare parts free
Why choose SHEENSTAR?
Stable high quality of machine
Competitive price
Fast,sincere and efficient service
Quality-packaging
1-year warranty
