High Quality Turbine Air Flow Meter
- Tianjin Port
 - T/T

You May Like
Product Details
| Place of Origin | Tianjin, China | Brand Name | SURE | |
| Model Number | LWQ |
Product Description
Cheap high quality turbine air flow meter
Specification

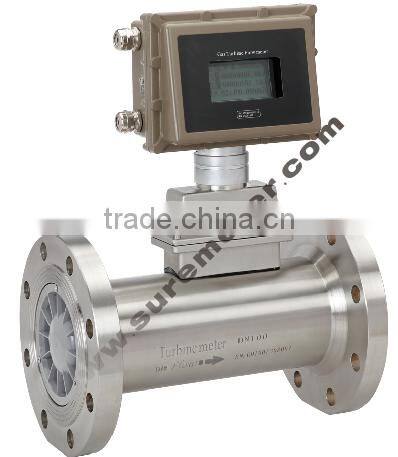

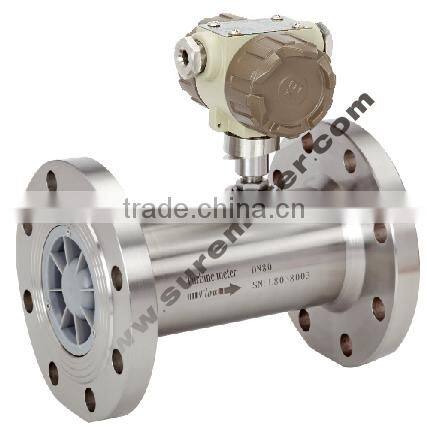

Photo  |     | ||||
Model  | LWQ-N  | LWQ-A  | LWQ-E1  | LWQ-E2..E5  | LWQ-D  |
Diameter  | DN25 to DN300 (1 to 12 inches)  | ||||
Output Signal  | Pulse  | 4-20mA  | No  | 4-20mA/Pulse  | Optional 4-20mA or Pulse  |
Power Supply  | +24VDC±15%  | +24VDC±15%  | Lithium Battery  | 24VDC±15%  | 24VDC±15% and Lithium Battery  |
Accuracy  | 2.5% or 1.5%  | 1.5% or 1.0%  | 1.5% or 1.0%  | ||
Flow Range  | Standard  | Standard or Extended  | Standard or Extended  | ||
Local Display  | No  | Yes  | Yes  | ||
Temperature  | No  | No  | Yes  | ||
Communication  | No  | No  | RS485  | RS485  | |
Housing Material  | Aluminum Alloy or Stainless Steel  | ||||
Impeller Material  | Aluminum Alloy or ABS Resin  | ||||
Explosion Proof  | ExdIIBT6 or ExiaIICT4  | ||||
Protection Level  | IP65  | IP65  | IP65  | ||
Diameter  | DN25 to DN300  | ||||
End Connection  | Flange (Standard: ISO; Optional: ANSI, DIN, JIS)  | ||||
Fluid Temperature  | -20°C~80°C  | ||||
Ambient Temperature  | -30°C~60°C  | ||||

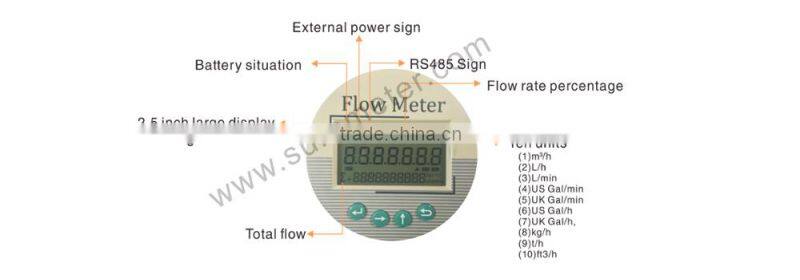

LWQ-E display
Technical Data Selling Points
- Output: Pulse / 4-20mA                                                         Ø  Certificate of CE & ISO 9001: 2008
- Accuracy:±1.0 of Rate / ±1.5% of Rate                                 Ø OEM & ODM services
- Operating Temp.: - 20...+60°C                                             Ø  Enough stock with short delivery time
- Fluid Temp.: - 20...+80°C                                                     Ø  Quality product with competitive price
- Housing Material: SS304 / SS316                                         Ø  Fast response services
- Rotor Material: ABS/ Aluminium Alloy                                    Ø Guarantee time is 24 months.
- Temperature and pressure compensation
Operate Principle
The operation of the International Gas Turbine Meter is based on the measurement of the velocity of gas. The flowing gas is accelerated and conditioned by the meters straightening section. The straightening vanes prepare the gas flow profile by removing undesired swirl, turbulence and asymmetry before the gas flows to the turbine wheel. The dynamic forces of the flowing fluid cause the rotor to rotate.
The turbine wheel is mounted on the main shaft, with special high precision, low friction ball bearings. The turbine wheel has helical blades that have a known angle relative to the gas flow. The conditioned and accelerated gas drives the turbine wheel with an angular velocity that is proportional with the gas velocity.

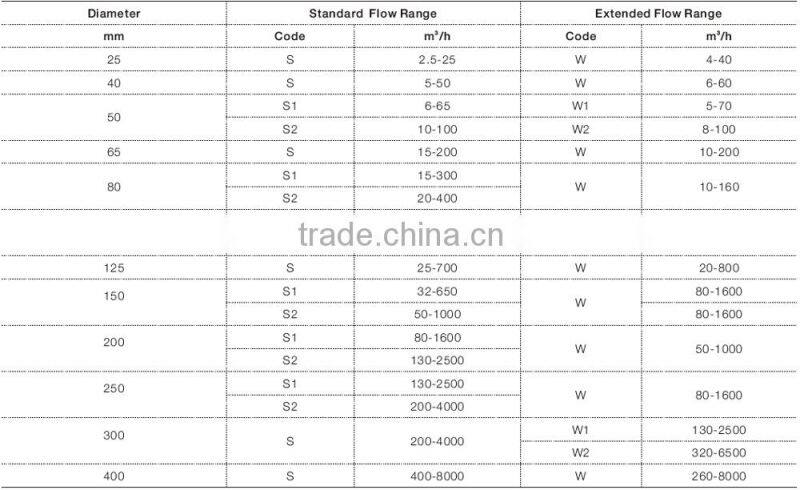

Flow range

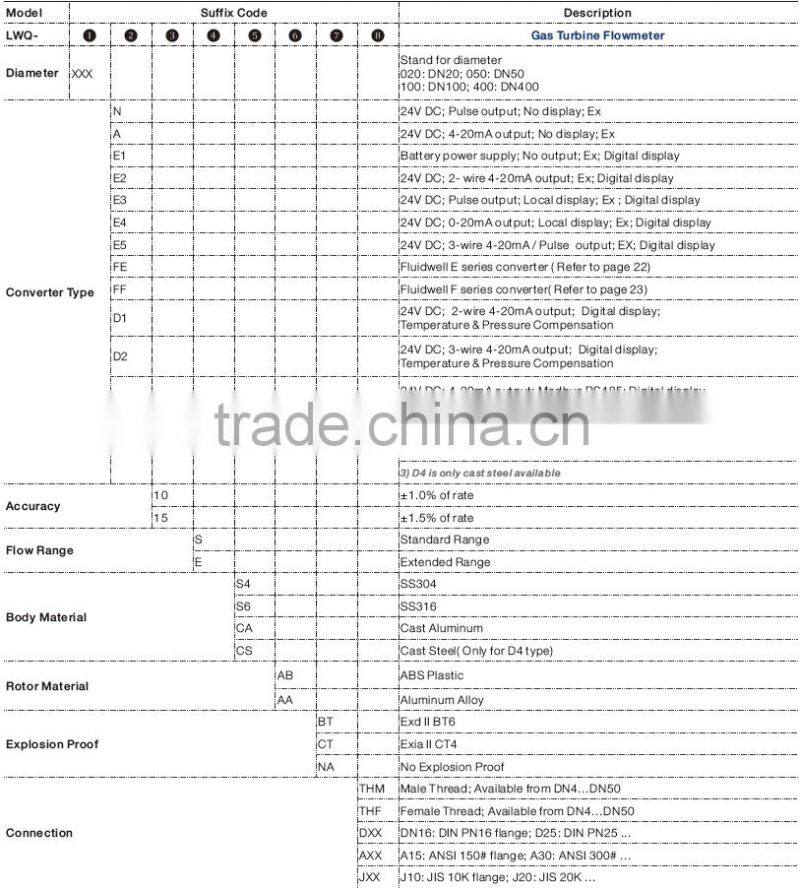

Model Selection

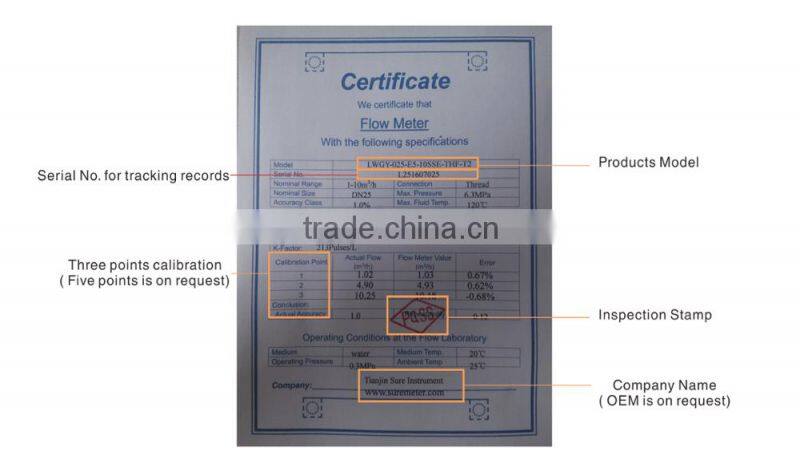

Calibration certificate
Nameplate

SUER Exhibition

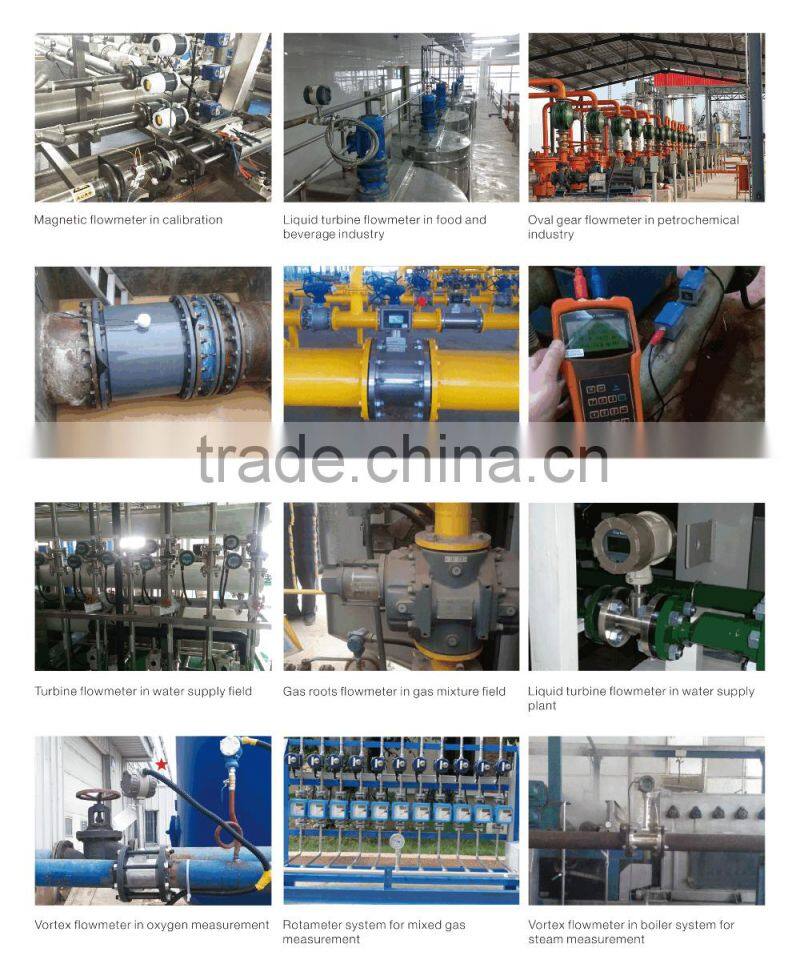

Product Application

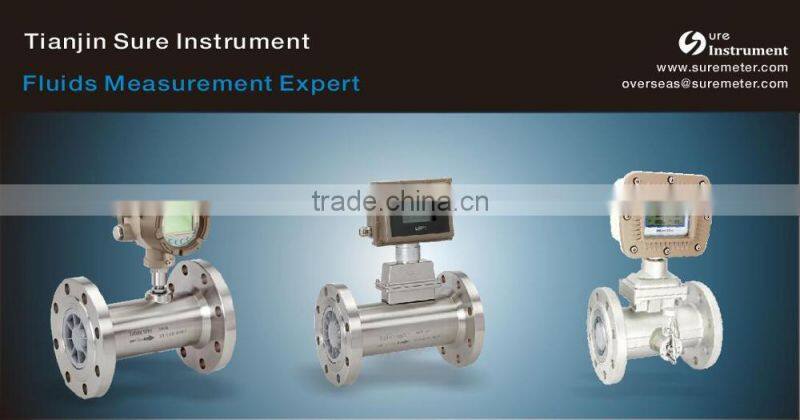

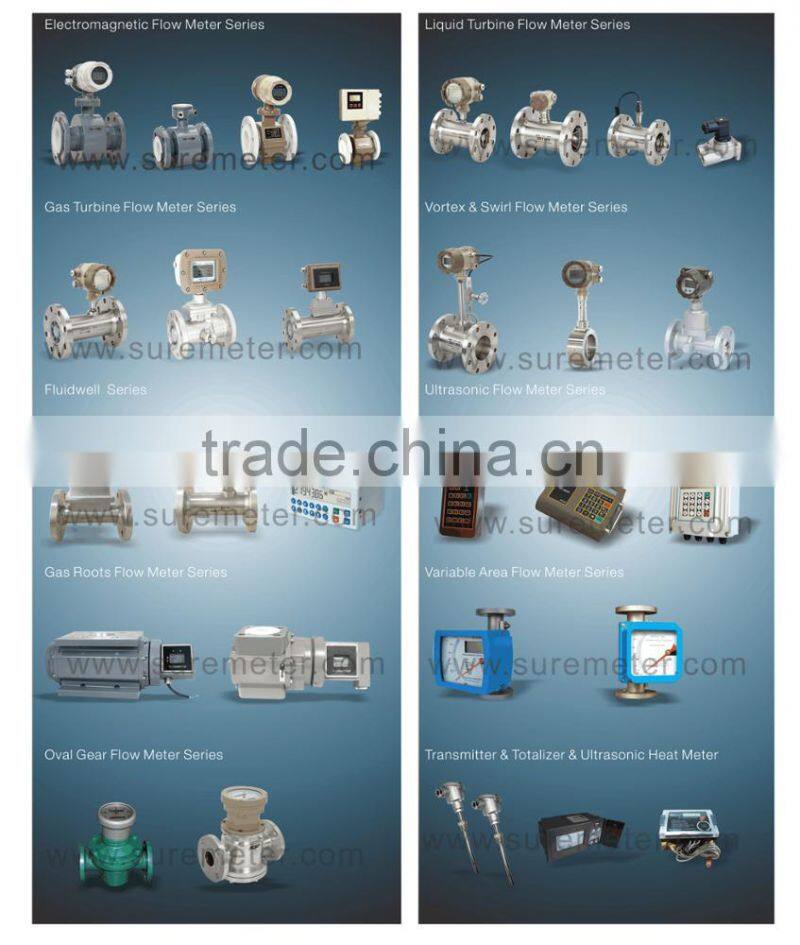

Product Gallery
How to contact us
