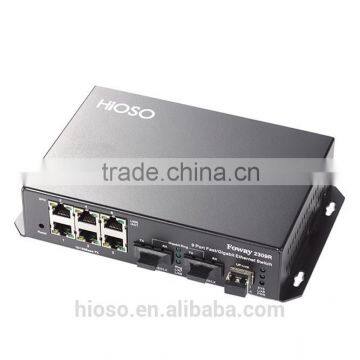

9 ports 100/1000M managed Ring Function Industrial optical fiber Ethernet switch
FOWAY2309R 100M/1000M Ring Function Switch
Overview
HiOSO FOWAY2309R is a 9 ports 100M 1000M ring function Ethernet fiber switch. It offers six FE RJ45 ports, two GE fiber ring function ports and one GE SFP uplink port (support 1000M SFP module and 1000M RJ45 electric module), inside web management.
FOWAY2309R supports RSR (Rapid Super Ring) technology and HD video flow transmission. Fiber port supports dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode.
FOWAY2309R supports to establish redundant back bone ring type network, applies to security system, electric system, traffic system requirements.
Character
l Support maximum 2 GE fiber ports, 6 100M Ethernet ports access and 1 GE SFP uplink port
l Support to establish Gigabit fiber redundant network
l Support redundant network protection (switch time less than 50ms)
l Support RSTP/STP, VOIP transmission
l Support web management
l Support 100M port and 1000M port full rate, full duplex non-blocking forwarding
l Support 8K MAC learning, 1Mbit storage and forward cache space, 4.6G back plane bandwidth
l Support HD network video flow transmission
l Fiber port supports dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode
l Aluminum alloy design better for heap radiation and anticorrosion
Technical Specification
Parameter | Specification |
Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T ,IEEE802.3z 1000Base-SX/LX Gigabit thernet, IEEE802.1d Spanning Tree |
Wavelength | 850nm/1310nm/1550nm |
Distance | Multi-mode: 220m(fiber 62.5/125μm)/550m (fiber 50/125μm) Single-mode: 10/20/40/60/80/100/120Km, |
Port | 6 FE RJ45 ports: 100Mbps 2 GE fiber ports: 1 Gbps SC/FC port 1 GE SFP ports: 1 Gbps, support 1000Base-SX/LX SFP module and 1000Base-T module |
MAC address | 8K |
Buffer memory space | 1Mbit |
Bit error rate | <1/1000000000 |
MTBF | 100000 hours |
Power | DC12V/2A |
Power consumption | 9W |
Working temperature | -10~60℃ |
Storage temperature | -40~80℃ |
Humidity | 5%~90% non-condensing |
Dimension | 42mm (H)×195mm(W)×116mm (D) |
Product information
No. | Type | Managed or not | Ports |
1 | FOWAY2309R-S20-SC-H | not | 6x10/100M TP ports + 2x1000M SC fiber ports (fixed, dual-fiber single-mode 20km, SC port) + 1x1000M SFP port, survailance industrial type, aluminum casing, DC12V |
2 | FOWAY2309R-SS20-SC-H | not | 6x10/100M TP ports + 2x1000M SC fiber ports (fixed, dual-fiber single-mode 20km, SC por)+ 1x1000M SFP port, survailance industrial type, aluminum casing, DC12V |
