Managed 8 ports fiber switch 100/1000M gigabit ethernet optical fiber switch

FOB Price

USD $1 - $145 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	HiOSO
Model Number	FOWAY1309FCM

Product Description

Managed 8 ports fiber switch 100/1000M gigabit ethernet optical fiber switch

Overview

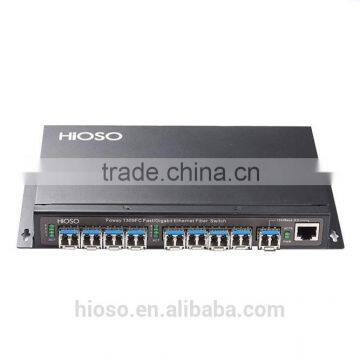

HiOSO FOWAY1309FC is a nine ports 100M all optic fiber switch. It offers 8 100M SFP fiber ports access and 1 Gigabit Combo port (1000M SFP port or 10/100/1000M adaptive RJ45 Ethernet optional) uplink.

FOWAY1309FC supports SFP modules hot plug, and supports to work with fiber switches, fiber converters and other devices witch fiber ports. It supports WEB management and SNMP management; applies to security system, electric system, traffic system requirements.

Character

l Support maximum 8 SFP fiber ports and 1 GE Combo port (SFP fiber port/RJ45 port interchange)

l Support SFP hot plug

l Support each port full rate, full-duplex non-blocking forwarding

l Support 8K MAC learning, 1Mbit storage and forward cache space, 4.6G back plane bandwidth

l Supports to substitute central fiber converter, simplify network structure, lower network establishing cost, reduce device fault

l All optic ports, strengthen the an-interference ability

l Metal casing design, better for heat dissipation

Technical Specification

Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree
Wavelength	850nm/1310nm/1550nm
Distance	100M SFP multi-mode: 2Km Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m
Port	8 100M SFP fiber ports: 100Mbps 1 Gigabit Combo port:1 Gbps, 1000M SFP&10/100/1000M RJ45
MAC	8K
Buffer memory space	1Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC12V/2A
Power consumption	10W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	28mm (H)×193mm(W)×119mm (D)
