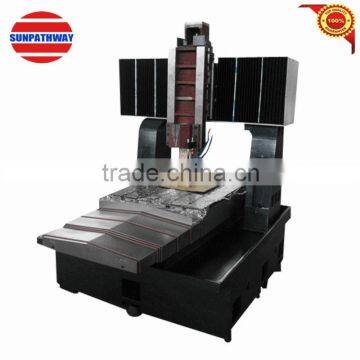

specially produce cnc milling machine frame SW-DX6060

Item

Unit

SW-DX6060

Table size

mm

550×650

Travel(X/Y/Z)

mm

600/600/250

Max height of workpiece

mm

400

Max weight permissible

kg

300

Precision

mm

0.002(Automatic)

Positioning

mm

0.01/300

Repeating

mm

0.005

Uprightness of X,Y axis

mm

0.015/300

 name

Brand/specification

note

1

 Coupling  Shaft

Mikipulley(Japan)

2

 Shield Of Y-axis

Domestic

Stainless Steel

3

 Ball screw of three axles

C3 level double nuts ball screw of 3 axis

4

Beeline rail of three axles

High Precision beeline guide of HIWIN (Taiwan)

5

Lubrication way

Nanjing(Jiangsu)

Centralized Oiling (include liduid level,pressure alarm)

6

Bearing

NSK(Japan) or NACHI

P4 level of high accurate match bearings

7

Accurate Round Nuts

taiwan

8

the main motor seat

bore diameter can decided by customer

7

Whole  Machine Painting

Plastic Spraying

9

Resin sand casting of machine body

OME of DMG

Company Brief

Nantong sunway technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service.

Assembly shop of vertical machining center

We follow strict assembly technique after we check each parts are eligible.

Assembly shop of cnc engraving and milling machine

Complete engraving and milling machine

After finishing leave factory testing,we will use waterproof and anti extrusion to protect the machine’s safety during transportation.

Small Gantry milling machine

We could supply OEM service and custom design service.

Electrical discharge machine which will be exported to SAMSUNG,Korea

Our electrical discharge machine have exported to SAMSUNG(Korea),

MAKINO(Japan),Brazil,Argentina,Mexico,Turkey.All machines runs well,they have not broken till now,we always trust”no maintenance service is the best service”.

Metal plate

Our metal plate use laser cutting and international advanced welding technique,while supply elegant appearance for surface of machine.

Casting

Our casting are made for resin sand,grade HT250,we are the sole casting factory which exported to DMG(German) in our domestic and meanwhile we are the supplier of Foxconn(supplier of Apple Inc) and supply 6000 sets casting to Foxconn.

Gantry machining center

Using famouse brand gantry machining center,is the key point to guarantee the precisio and surface finishment of machining face.

Detection of assembling

In strict accordance with German standard to do precision detection on our linear rail,ball screw,table surface, to guarantee the integral precision of machine.

Precision detection

Laser inspection equipment

Owning the advanced laser inspection equipment,which is made in USA,are stable guarantees of improving the quality and precision of machines.
