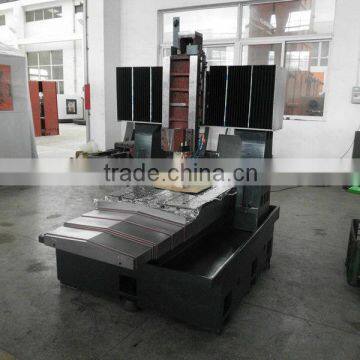

Top Quality CNC Milling Machine Frame SW-DX5050

Model

Table dimension

(length×width)(mm)

Table T groove

(mm)

Workingload(kg)

Travel(X,Y,Z)(mm)

Spindle speed

(rpm)

SW-DX5050

550×500

5-17

200

500×500×250

600-24000

Type

NO.

       Name

       Brand Habitat

         Remarks

1

 High-speed electrical spindle

 Xingcheng

4KW/3.2KW/Constant Power

2

  Coupling  Shaft

 Mikipulley (Japan)

3

  Ball screw of three axles

 C3 level double nuts ball

screw of 3 axis

4

 Beeline rail of three axles

  High Precision beeline

guide of HIWIN (Taiwan)

5

 Lubrication way

  Nanjing (Jiangsu)

  Centralized Oiling

6

 Axletree

  Japan of  NSK  or NACHI

  P4 level of high accurate match

axletrees

7

 Whole  Machine Painting

  Plastic Spraying

8

 Accurate Round Nuts

  Taiwan

9

 Shield Of Y-axis

  Domestic

   Stainless Steel

10

 Bolts of  whole machine

  High Intensity 12.9 Grade

Company Brief

Nantong sunway technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service.

Assembly shop of vertical machining center

We follow strict assembly technique after we check each parts are eligible.

Assembly shop of cnc engraving and milling machine

Complete engraving and milling machine

After finishing leave factory testing,we will use waterproof and anti extrusion to protect the machine’s safety during transportation.

Small Gantry milling machine

We could supply OEM service and custom design service.

Electrical discharge machine which will be exported to SAMSUNG,Korea

Our electrical discharge machine have exported to SAMSUNG(Korea),

MAKINO(Japan),Brazil,Argentina,Mexico,Turkey.All machines runs well,they have not broken till now,we always trust”no maintenance service is the best service”.

Metal plate

Our metal plate use laser cutting and international advanced welding technique,while supply elegant appearance for surface of machine.

Casting

Our casting are made for resin sand,grade HT250,we are the sole casting factory which exported to DMG(German) in our domestic and meanwhile we are the supplier of Foxconn(supplier of Apple Inc) and supply 6000 sets casting to Foxconn.

Gantry machining center

Using famouse brand gantry machining center,is the key point to guarantee the precisio and surface finishment of machining face.

Detection of assembling

In strict accordance with German standard to do precision detection on our linear rail,ball screw,table surface, to guarantee the integral precision of machine.

Precision detection

Laser inspection equipment

Owning the advanced laser inspection equipment,which is made in USA,are stable guarantees of improving the quality and precision of machines.
