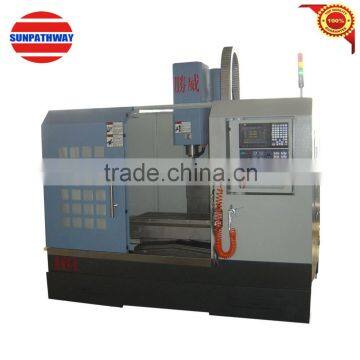

Mini 3 Axis Cnc Machine Center Vmc Price Vmc430 For Education

  Machine Type

Unit

VMC-430

Working table's size(length×width)

 mm

600×350

Left-to-right travel(X axle)

 mm

420

Front-to-back travel(Y axle)

 mm

320

Spindle travel(Z axle)

 mm

350

The distance from spindles center to vertical guide surface

 mm

377

The distance from the spindle's bottom end to table surface

 mm

185-535

Working table's T groove

 mm

3-14

Specifications of Ball screw's diameter

3210

Working table's bearing capability

  kg

400

Machine's net weight

  T

2.5

Spindle speed

 rpm

6000

Rapid feed rate(X/Y/Z)

M/min

30/30/30

Spindle out power

 kw

3.5/5.5

Precision

 Positioning

 mm

0.005/300

 Repeating

 mm

0.003

Travel No.

Name

Brand Habitat

Remarks

1

CNC System

MITSUBISHI/FANUC(Japan)

M70

2

Drive motor

MITSUBISHI/FANUC(Japan)

3

Spindle motor

MITSUBISHI/FANUC(Japan)

4

Relay

OMRON(Germany)

5

Contactor

SCHNEIDER(France)

6

Breaker

SIEMENS(Germany)

7

Transformer

JUCHE(China)

8

Switch power supply

MEAN WELL(Taiwan)

9

Electron hand wheel

Japan

10

Water tank motor

China

Travel No.

Name

Brand Habitat

Remarks

1

Spindle

PUSON(Taiwan )

8000r/ min

2

Coupling shaft

Germany R+W

3

Pressurizes vat

HAOCHENG or SHENGYU(Taiwan )

4

Lead screw of three axles

HIWIN C3(Taiwan)

5

High accurate beeline lead rail of three axles

HIWIN(Taiwan) or THK(Japan)

6

Lubricant oil road

NIKKA YUKI(Japan )

7

Bearing

NSK (Japan )

(P level of high accurate avoid matching bearings)

8

20 bamboo hat style or 24 manipulator tool changer

9

Accurate round nuts

Taiwan

10

Whole  machine bolts

Taiwan

(High intensity 12.9 grade)

Company Brief

Nantong Sunway Technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and

milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service.

Engraving and milling machine DX5050,6060,7080 including the cover protection

   DX5050,6060               DX7080

Fuselage assembly shop of cnc engraving and milling machine

Graphite engraving and milling machine(complete) which exported to Korea DX-6050

engraving and milling machine(complete)6060

Graphite engraving and milling machine(complete) which exported to Brazil DX7070

Angle to open the door, in order to hoist workpiece directly by customer

High speed processing of graphite electrodes or electrode parts

Light-weight gantry type engraving and milling machine

We can provide OEM service for customers, also can meet the requirements of customers’ custom machine by themselves.

LM-1090, X,Y,Z travel: 1000×900×430 mm

LM-1311, X,Y,Z travel: 1300×1100×430 mm

LM-1613, X,Y,Z travel: 1600×1300×550 mm

The spindle installed motorized spindle to became large engraving and milling machine,to repair the light of large molds, carved, save a lot of artificial polishing time.

Small CNC gantry type engraving and milling machine

LM-1090, X,Y,Z travel:1000×900×430 mm

LM-1212, X,Y,Z travel:1200×1200×700 mm

LM-1612, X,Y,Z travel:1600×1200×700 mm

Spindle BT50,15KW, instead of the Y axis direction to small disadvantage of VMC,especially suitable for square, large width mould, product processing, low prices, high precision, long service life.

LM-1212 in our customer’s factory

LM-1612 with tool changer,with oil cooling for spindle

Electrical discharge machine which will be exported to SAMSUNG,Korea

Our electrical discharge machine have exported to SAMSUNG(Korea), Brazil,Argentina,Mexico,Turkey and other countries .All machines runs well,they have not broken till now,we always trust”no maintenance service is the best service”.

D450 Electrical discharge machine
