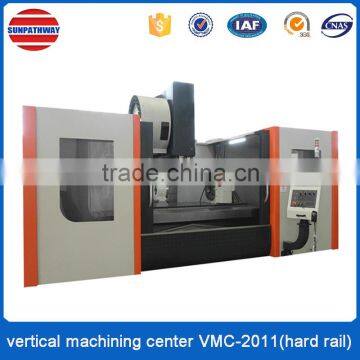

VMC-2011(hard rail) custom 3 axis cnc vertical machining center

FOB Price

US$ 107,692 - 115,385 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Sunparhway
Model Number	VMC-2011 (hard rail)	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Machine Descritption

Machine Type	Unit	VMC2011(hard rail)
Worktable
Worktable(length×width)	mm	2300×1100
Maximum load of table	kg	4500
T-slot(number of slot × slot width × pitch)	mm	7-22×150
Triaxial itinerary
Travel for X/Y/Z axes	mm	2000/1100/800
Distance from spindle nose to table surface	mm	250-1050
Distance from spindle center to column guide surface	mm	1150
Feed system
CNC system		Mitsubishi M70/FANUC-Oi MD
Rapid shift of axes of X/Y/Z	m/min	12
Maximum cutting feed speed	m/min	7
Automatic tool transform system(CNC milling without)
Standard tool quality	bundle	Disc type 24
The largest diameter cutter knife/length	mm	Φ110/300
Tool exchanging manner		Air-operated
Average tool exchanging time	sec	Disc type: 5s
Precision
Positioning accuracy	mm	0.020
Accuracy of repeated positioning	Mm	0.015
Spindle system
Spindle speed	r.p.m	6000
Spindle specifications(model/installation diameter)		BT50/Φ190
Drive manner of spindle		Belt drive
Motor power of spindle	kw	22/26
Air pressure
Requirements for air compressing	Kg/cm²	≥6
Air pressure flux	m³/min	≥0.3
Machine specifications
Integrated weight(kg)	kg	19000
Overall dimension(weight×width×height)	mm	5700×4100×3300

Machine Introduction

1. For hard rail type vertical machining center,the guide rails of machine tool are double-deck. machine base is box type design, coordinate with large span stand column, it is more wider 40% than other same type machine tool, the design is conform to mechanics principle.
2. Use C3 grade high precision ball screw and pre-pull treatment bearing to ensured the rigidity and precision.
3. The casting of machine tool which exported to DMG is high-grade, high quality gray casting iron with aging treatment, the TURCITE is from USA RULON, with hand scraping, the line rail is from Taiwan famous brand, ensure the precision and lengthen the working life of machine tool.
* Use Japan Mitsubishi,Fanuc or other international brand control system
* Use Taiwan Royal or Puson Spindle
* Use Taiwan Hiwin or PMI guide rail and ballscrew, Japan NSK or NARCH bearing to ensure the precision of machine tool
* Use Taiwan Deta 24 arm type tool changer
The forth axis and Chip conveyor, Renishaw tool guage are optional

Partial Workpiece

Precision Test

Packaging & Shipping

Our Customers

About Sunpathway

Contact Us
