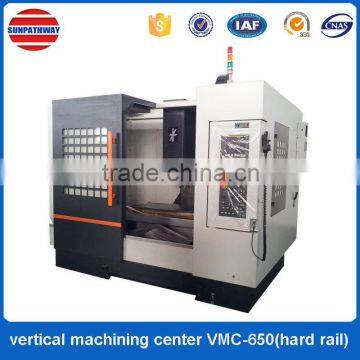

chinese cnc machining center for sale VMC-650 (hard rail)

FOB Price

US$ 30,000 - 36,923 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Sunpathway
Model Number	VMC-650(hard rail)	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

welcome to visit our website,the specification data of chinese cnc machining center for sale VMC-650 (hard rail) is as followed,if you need other information of our machine,please contact me freely or visit our factory by feild trip.

Machine Description

Machine Type	Unit	VMC650(hard rail)
Worktable
Worktable(length×width)	mm	800×420
Maximum load of table	kg	500
T-slot(number of slot × slot width × pitch)	mm	3-18×125
Triaxial itinerary
Travel for X/Y/Z axes	mm	600/420/500
Distance from spindle nose to table surface	mm	150-650
Distance from spindle center to column guide surface	mm	530
Feed system
CNC system		Mitsubishi M70/FANUC-Oi MD
Rapid shift of axes of X/Y/Z	m/min	16
Maximum cutting feed speed	m/min	7
Automatic tool transform system(CNC milling without)
Standard tool quality	bundle	Bamboo hat type 20/Disc type 24
The largest diameter cutter knife/length	mm	Φ80/300
Tool exchanging manner		Air-operated
Average tool exchanging time	sec	Bamboo hat type:5s/Disc type: 2.5s
Precision
Positioning accuracy	mm	0.008
Accuracy of repeated positioning	Mm	0.005
Spindle system
Spindle speed	r.p.m	8000
Spindle specifications(model/installation diameter)		BT40/Φ120
Drive manner of spindle		Belt drive
Motor power of spindle	kw	11/15
Air pressure
Requirements for air compressing	Kg/cm²	≥6
Air pressure flux	m³/min	≥0.3
Machine specifications
Integrated weight(kg)	kg	4000
Overall dimension(weight×width×height)	mm	2330×2200×2490

Machine Introduction

1. For hard rail type vertical machining center,the guide rails of machine tool are double-deck. machine base is box type design, coordinate with large span stand column, it is more wider 40% than other same type machine tool, the design is conform to mechanics principle.
2. Use C3 grade high precision ball screw and pre-pull treatment bearing to ensured the rigidity and precision.
3. The casting of machine tool which exported to DMG is high-grade, high quality gray casting iron with aging treatment, the TURCITE is from USA RULON, with hand scraping, the line rail is from Taiwan famous brand, ensure the precision and lengthen the working life of machine tool.
* Use Japan Mitsubishi,Fanuc or other international brand control system
* Use Taiwan Royal or Puson Spindle
* Use Taiwan Hiwin or PMI guide rail and ballscrew, Japan NSK or NARCH bearing to ensure the precision of machine tool
* Use Taiwan Deta 24 arm type tool changer
The forth axis and Chip conveyor, Renishaw tool guage are optional
