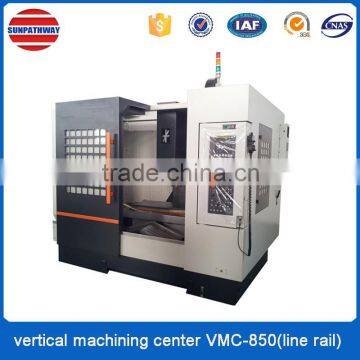

high quality 3 axis cnc milling machine with high quality
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Sunpathway | |
| Model Number | VMC-850 (line rail) | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Machine Type | Unit | VMC850(line rail) |
Worktable | ||
Worktable(length×width) | mm | 1050×500 |
Maximum load of table | kg | 650 |
T-slot(number of slot × slot width × pitch) | mm | 5-18×80 |
Triaxial itinerary | ||
Travel for X/Y/Z axes | mm | 800/500/600 |
Distance from spindle nose to table surface | mm | 150-750 |
Distance from spindle center to column guide surface | mm | 620 |
Feed system | ||
CNC system |
| FANUC-Oi MD |
Rapid shift of axes of X/Y/Z | m/min | 30/30/20 |
Maximum cutting feed speed | m/min | 12 |
Automatic tool transform system(CNC milling without) | ||
Standard tool quantity | bundle | Disc type 24 |
The largest diameter cutter knife/length | mm | Φ80 Tool/300 |
Tool exchanging manner |
| Air-operated |
Average tool exchanging time | sec | Disc type: 2.5s |
Precision | ||
Positioning accuracy | mm | 0.008 |
Accuracy of repeated positioning | Mm | 0.005 |
Spindle system | ||
Spindle speed | r.p.m | 8000 |
Spindle specifications(model/installation diameter) |
| BT40/150 |
Drive manner of spindle |
| Belt drive |
Motor power of spindle | kw | 11/15 |
Air pressure | ||
Requirements for air compressing | Kg/cm² | ≥6 |
Air pressure flux | m³/min | ≥0.3 |
Machine specifications | ||
Integrated weight(kg) | kg | 5000 |
Overall dimension(weight×width×height) | mm | 2700×2300×2600 |
1. For line rail type vertical machining center,the guide rails of machine tool are from HIWIN or PMI. Machine base is box type design, coordinate with large span stand column, it is more wider 40% than other same type machine tool, the design is conform to mechanics principle.
2. Use C3 grade high precision ball screw and pre-pull treatment bearing to ensured the rigidity and precision.
3. The casting of machine tool which exported to DMG is high-grade, high quality gray casting iron with aging treatment, ensure the precision and lengthen the working life of machine tool.
* Use Japan Mitsubishi,Fanuc or other international brand control system
* Use Taiwan Royal or Puson Spindle
* Use Taiwan Hiwin or PMI guide rail and ballscrew, Japan NSK or NARCH bearing to ensure the precision of machine tool
* Use Taiwan Deta 24 arm type tool changer
The forth axis and Chip conveyor, Renishaw tool guage are optional
