aluminium insulation windows

Aluminum windows and doors

1. Profile in common use, aluminum profile adopted 14.8 mm and 16.8mm heat insulated strip; 50 series, 77 series, 80 series, 90 series.

2. Can achieving different open styles. Such as: Fix window, awning window, Tilt window and tilt and turn window, sliding window, casement window.

3. European standard C-slot hardware.

4. Use sponge foam composite EPDM to achieve dual sealing and ensure the sealing performance, reducing the force for opening and closing.

5. Side frame, window sash follow the procedure of glue injection after corner crimping; Leading the flow of sealant through the guide plate, increasing the intensity and sealing performance for the corner of window.

6. Using different series of aluminum profiles and different configurations of glass.

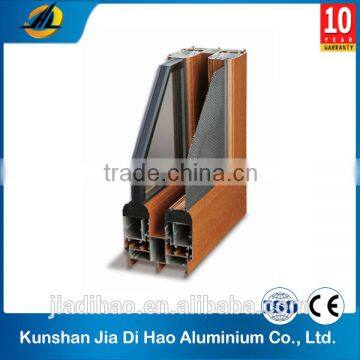

Thermal Break Aluminum Windows And Doors
Material
Profile
Thermal Break Profile Depth 70mm
Profile Thickness 1.4 mm
Profile Surface Treatment:Powder coated, Electrophoresis, Anodize,Wooden Transfer and PVDF
Color :RAL Series, and Wood Grain
Glass :Single glass, Tempered glass, Low-e glass, floated glass, refective glass, frosted glass, laminated glass and so on
Glass Thickness:5mm/6mm/8mm/12mm for single glass and 5mm+9A+5mm, 6mm+12A+6mm. etc for double/triple glazing
Sealant:EPDM, PVC, Silicone Sealant
Hardware:Roto, Kin Long
Dimension:According to client' s size or drawings
Fly Screen:Available
Performance Parameter:

Sound Isolation:28-45db
Air Pressure:3 th -5 th   Grade
Wind Resistance:3 th -5 th   Grade
Water Resistance:3 th -5 th   Grade
U-Value:2.2-3.5
