Adhesive Lined Heat Shrinkable Cable Breakout Termination for Suitable for Termination Kits for PVC, XLPE, and PILE Cable
- shenzhen
- Credit Card
You May Like
-
Adhesive Double Wall Heat Shrink Cable Wire Harness
-
Crimp Splices Red Connecter /splitter Wire Connectors /cable Splicing Wire Connectors
-
Heat Shrinkable Reinforce Telecommunication Shelter Sleeve
-
Heat Shrink Nylon Braided Pet Cable Sleeving
-
PVC Wire Wrapping Tape/wrapping Film 3M E-Z
-
Mastic Rubber Sealing Tape/3M 2900R
Product Details
| Place of Origin | Guangdong, China | Brand Name | Dicore | |
| Model Number | HSCB | Type | Other, Insulator, multi core cable breakout | |
| Material | Other, PE, PE | Application | Other, High Voltage, Suitable for termination kits for PVC, XLPE, and PILE Cable | |
| Rated Voltage | 35KV | Tensile Strength | 13MPa |
Product Description

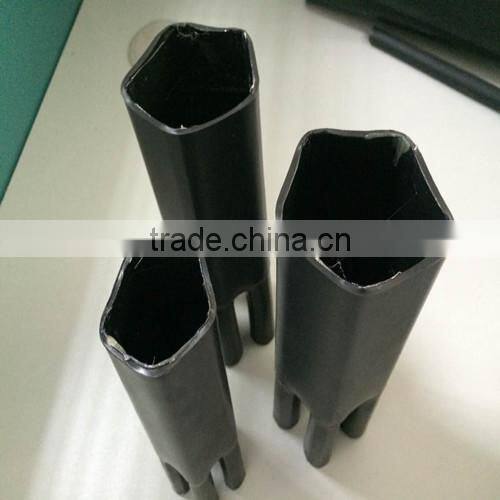

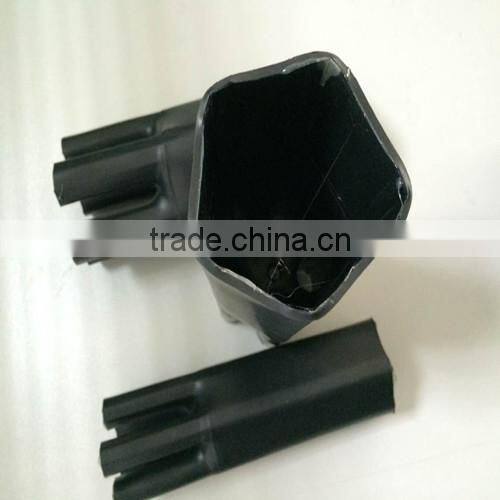

adhesive lined heat shrinkable cable breakout termination for Suitable for termination kits for PVC, XLPE, and PILE Cable
Made from radiation cross-linked polyolefin and suitable for applications up to 1kV. The properties of electrically insulating, UV resistant and water proof make HSCB widely used
in electric power industry to provide insulation and sealing over the crutch of multi-core cables.
Features
>Minimum shrink temperature: 110℃
>Minimum fully recovery temperature: 130℃
>Standard color: Black
Technical Data
Property | Test Method | Typical Data |
Operating temperature | IEC 216 | -55℃ to +110℃ |
Tensile strength | ASTM D 2671 | 13MPa (min.) |
Tensile strength after thermal aging (120℃/168hrs.) | ASTM D 2671 | 10MPa (min.) |
Elongation at break | ASTM D 2671 | 300% (min.) |
Elongation at break after thermal aging (120℃/168hrs.) | ASTM D 2671 | 250% (min.) |
Dielectric strength | IEC 243 | 15kV/mm (min.) |
Volume resistance | IEC 93 | 1013Ω.cm (min.) |
Water absorption | ISO 62 | 1% (max.) |

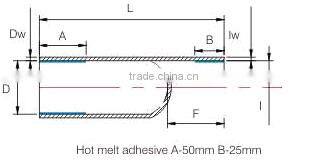

Specifications
Order Ref. Number | D (mm) | I (mm) | Recovery Length±10% | Recovery wall±10% | ||||
a (Min.) | b (Max.) | a (Min.) | b (Max.) | L (mm) | F (mm) | Dw (mm) | Iw (mm) | |
SHSCB-2-22/ 8 | 22 | 8 | 9 | 3.5 | 55 | 18 | 2.2 | 1.8 |
SHSCB-2-30/12 | 30 | 12 | 14 | 4.5 | 93 | 23 | 2.6 | 2.2 |
SHSCB-2-40/16 | 40 | 16 | 15 | 5.0 | 125 | 35 | 2.1 | 2.1 |
SHSCB-2-60/23 | 60 | 23 | 25 | 7.5 | 118 | 29 | 2.6 | 2.6 |
SHSCB-2-60/23L | 60 | 23 | 25 | 7.5 | 155 | 45 | 2.6 | 2.6 |
SHSCB-2-90/60 | 90 | 60 | 30 | 8.5 | 190 | 50 | 3.0 | 3.0 |
SHSCB-2-150/90 | 150 | 90 | 20 | 6.5 | 150 | 70 | 3.0 | 3.0 |
SHSCB-3-38/16 | 38 | 16 | 15 | 4.5 | 110 | 35 | 2.1 | 2.1 |
SHSCB-3-60/25 | 60 | 25 | 25 | 8.0 | 165 | 50 | 3.0 | 2.5 |
SHSCB-3-80/38 | 80 | 38 | 35 | 11.0 | 185 | 55 | 3.5 | 3.5 |
SHSCB-3-110/50 | 110 | 50 | 46 | 17.5 | 250 | 65 | 4.0 | 4.0 |
SHSCB-3-125/57 | 125 | 57 | 55 | 20.0 | 260 | 75 | 4.0 | 4.0 |
SHSCB-3-140/70 | 140 | 70 | 62 | 26.0 | 280 | 75 | 4.0 | 4.0 |
SHSCB-3-170/77 | 170 | 77 | 75 | 28.0 | 280 | 80 | 4.0 | 4.0 |
SHSCB-4-40/15 | 40 | 15 | 14 | 3.5 | 105 | 26 | 2.2 | 2 |
SHSCB-4-55/21 | 55 | 21 | 20 | 5.0 | 150 | 40 | 3.1 | 2.6 |
SHSCB-4-65/26 | 65 | 26 | 26 | 7.0 | 175 | 45 | 3.3 | 2.9 |
SHSCB-4-75/26 | 75 | 26 | 28 | 7.0 | 175 | 45 | 3.3 | 2.9 |
SHSCB-4-82/37 | 82 | 37 | 30 | 9.0 | 190 | 60 | 4.0 | 3.0 |
SHSCB-4-90/37 | 90 | 37 | 32 | 9.0 | 190 | 60 | 4.0 | 3.0 |
SHSCB-4-100/47 | 102 | 47 | 38 | 12.0 | 198 | 58 | 4.0 | 3.0 |
SHSCB-4-125/52 | 130 | 52 | 52 | 15.0 | 240 | 75 | 4.0 | 4.0 |
SHSCB-4-160/70 | 160 | 70 | 64 | 19 | 260 | 75 | 4.0 | 4.0 |
a: as supplied
b: after recovery
Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building&shipbuilding to provide effective insulation and protection the functional parts, components and systems.

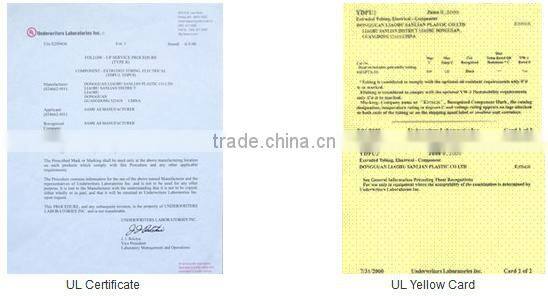

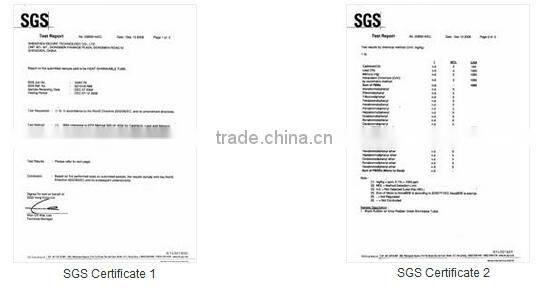

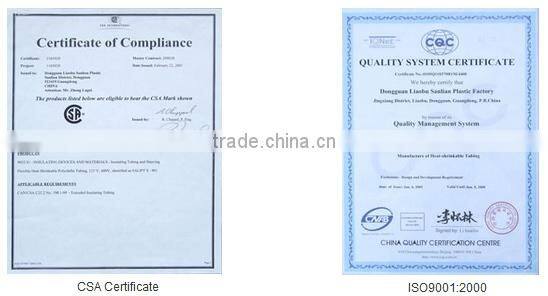

Certification:
Why Choose Dicore?
* Quality is our culture
* Dicore is a professional supplier in various material heat shrink tubing products including Polyolefin, Silicone Rubber, PTFE, Kynar, Polyvinylidene Fluoride(PVDF), Viton,etc.
* Dicore boast of a powerful technology team, big producing a capacity to offer a complete line of products with exceptional quality, and bring productivity improvements to all our cllients arcoss the globe.
* One-stop supply of Heat Shrink Tube products and Wiring Harness.
* Quality is our culture
* Competitive price, Flexible Payment Terms, Abundant Stocks, Short Delivery Time.
* 12 Years Professional Exporting Experience supported by the best service quality.
