7 inch slim lcd monitor built-in integrated lipo battery used as wireless camera security system dji lightbridge

7 inch slim lcd monitor built-in integrated lipo battery used as wireless camera security system dji lightbridge

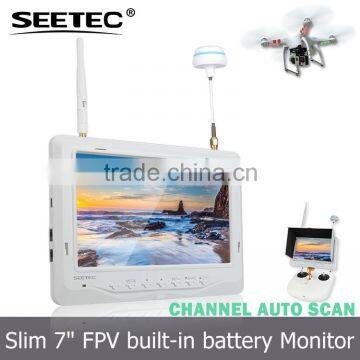

This FPV monitor has a very slim 7" screen with a super bright LCD, and 5.8GHz 32CH diversity receiver and built in rechargeable battery. This monitor is an excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 500cd/m² is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The integrated rechargeagble battery keeps your FPV grounstation compact and easy to use. The auto RF searching feature makes it easy to match your FPV transmitters frequency with the click of a button.

This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.

1. Super Light and Slim 18mm Width
2. Built-in integrated lipo battery
3. Channel Auto searching ,selection via button
4. Best Channel Receiption via Antenna Auto-switching
5. 5.8GHz,32 Channels Receiver
6. Video outputs and DC output to connect and power other equipment
7. High resolution 1024x600,Bright 500cd/m²
8. No blue screen
9. High Sensitivity:-90dBM
10. Compable with all 5.8GHz transmitters 32ch, such as Fatshark, Boscam
11. Not affected by 2.4ghz radio controller

Photography Functions:

1.Peaking Focus Assist
2.Check Field(Red,Green,Blue,Mono)
3.Camera 5D II Mode
4.Screen Marker
5.Centre Marker
6.4:3&16:9 image adjustable
7.Full Screen Display in mode of Monitoring & Recording


 Multiple Inputs and Outputs

 Mini HDMI,AV,RF input,AV ,3.5mm Earphone Jack output.DC in and out,and with USB for
 upgrade

Channel Auto Scan

It supports 32-channels totally, Long press “Search” button to realize auto channel searching function when aerial photography. It’s much more convenient than traditional methods.
