7 inch tft lcd video high sensitivity diversity receivers display ips panel anti-glare screen fpv gimbal
- 10000 Piece / Pieces per Month
- xiamen
- T/T
You May Like
-
7" LCD screen radio helicopter with integrated battery video audio 5.8g receiver 32ch wireless
-
RC hobby wireless diversity 5.8GHz 32ch 7 inch HDMI AV monitor camera quadcopter gimball
-
7 inch hd HDMI AV FPV monitor 5.8g 32ch wireless slim portable phantom 2 lcd battery
-
7 inch built in battery FPV monitor auto searching compable 5.8GHz transmitters Phantom 3
-
7 inch fpv screen built in 5.8g wireless receiver 32 channels dji quadcopter phantom vision 2
-
7 inch wireless fpv monitor camera gimbals with 5.8ghz receiver no blue screen
Product Details
Type | Airplane | Power | Battery | |
Material | Plastic | Plastic Type | ABS | |
Scale | Other, 16:9 | Radio Control Style | RC Hobby | |
Place of Origin | Fujian, China | Brand Name | SEETEC | |
Model Number | FPV-720 |
Product Description
7 inch tft lcd video high sensitivity diversity receivers display ips panel anti-glare screen fpv gimbal

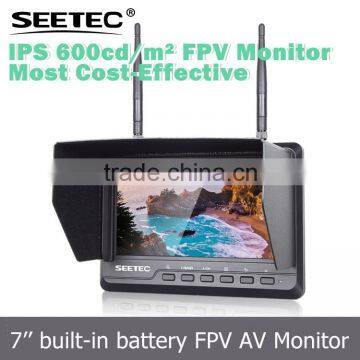

This FPV monitor is the most cost-effective 5.8G 32CH Diversity Receiver 7” IPS Screen with a super bright LCD 600cd/m² and built in rechargeable battery. The input signals is AV,RF .The OSD with battery status and channel information .FPV720 is excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 600cd/m² is plenty of brightness for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The integrated rechargeagble battery keeps your FPV ground station compact and easy to use.Perfect for outdoor operation.
This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.
1. IPS Panel High resolution 1024x600, Brightness 600cd/m² | ||||
2. Built-in integrated lipo battery | ||||
3. Channel Auto searching ,selection via button | ||||
4.High sensitivity diversity receivers for the best possible reception,Built in Dual receiver Automatically for best reception automatic switching. | ||||
5.FPV aerial dedicated input port,High Definition. | ||||
6.High brightness,contrast ratio sunshade cover,can see clearly under sunlight | ||||
7.No Blue Screen under weak signal | ||||
8.Multiple color format support,manually enter the menu to select the appropriate standard,stronger adaptability | ||||
9.Analog composite video AV input,connect FPV aerial camera | ||||
10.16:9 screen radio,switch 16:9/4:3 display mode freely | ||||
11.Multiple installation ways,convenient for different angles to view |
Description | 7'' high brightness 600cd/m² IPS panel FPV Monitor with built-in battery dual 32CH 5.8GHz diversity receivers | ||
Model | FPV720 | ||
Screen Size | 7'' | ||
Dot Resolution | 1024x600 | ||
Dot pitch | 0.1506(H) × 0.1432(V) mm | ||
Aspect Ratio | 16:9 | ||
Brightness | 600cd/m² | ||
Contrast Ratio | 800:1 | ||
Backlight | LED | ||
Response Time | 30ms | ||
Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) | ||
Support video format | PAL-4.43;NTSC-3.58 | ||
Input Signals | AV,RF | ||
Surface Treatment | Anti-Glare matte screen | ||
Built-in battery | 7.4v/2200mA(2 hours) | ||
Input Voltage | 9-18V | ||
Power Consumption | ≤13W(with battery) | ||
workingTemperature | -20℃~50℃ | ||
storage Temperature | -30℃~65℃ | ||
Install Way | "1/4"-20 Thread mounting socket | ||
Unit Size | 191L×134.7H ×23D (mm) | ||
Unit Weight | 380g/ 470g (with battery) |
5.8GHz Wireless AV Receiver
.Built-in AV receiver support PAL / NTSC
.Simulation of composite video AV inputs, aerial camera connection.
.5.8Ghz frequency 4 Bands and total 32 channels.
.Snow screen, no more “blue” screen.
Channel Auto Scan
It supports 32-channels totally, Long press “ ” button to realize auto channel searching function when aerial photography. It’s much more convenient than traditional methods.
