HDMI VGA Input 10.1 Inch Tft Lcd Display Resolution 1366X768 Full hd Touchscreen Monitor
- xiamen
- T/T
You May Like
-
8" Car Display Vga Hdmi Input Tft Lcd Led Touch Panel Monitor With Sks Cable
-
VGA Video Audio HDMI Input Resolution 800X600 DC12V Input 8 Inch pc Touch Monitor
-
8 " Led Panel Widescreen Lcd Tft Monitor for Car Application Vga Hdmi Input
-
7 Inch Tft Panel Vga Video Audio Input 4-wire Resistive Touch Lcd Hdmi Monitor
-
8 Inch Tft Lcd Panel Touchscreen Standalone Car Display High Brightness Speaker Monitor
-
8 Inch 12v Hdmi Input Widescreen Portable Tablet Panel Display Vga Lcd Car Monitor
Product Details
| Products Status | Stock | Screen Size | Other, 7" | |
| Type | Resistive | Interface Type | USB, Other, USB, VGA,Video1,Video2,Audio,HDMI (DVI Input for Optional) | |
| Resolution | Other, 800X480 | Brand Name | SEETEC | |
| Model Number | ST101AHT | Place of Origin | Fujian, China |
Product Description
HDMI VGA input 10.1 inch tft lcd display resolution 1366X768 full hd touchscreen monitor

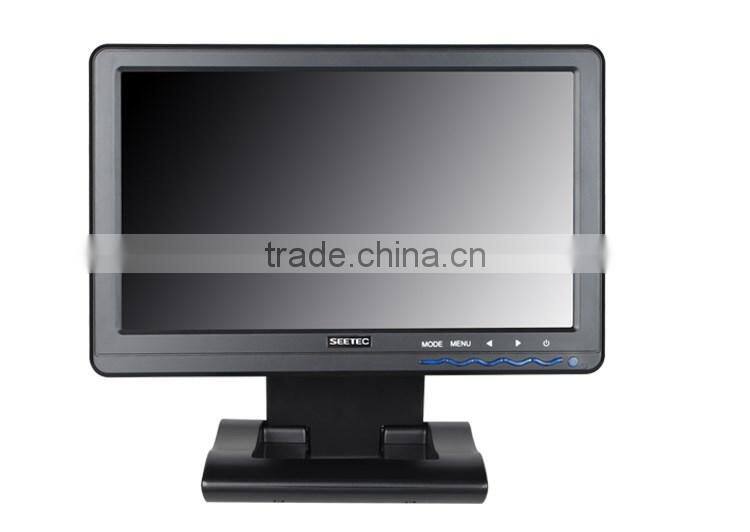

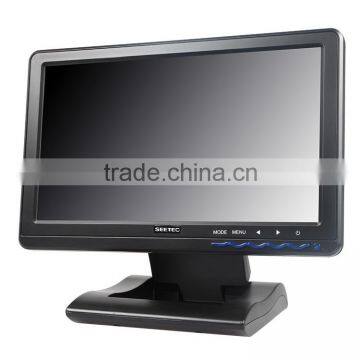

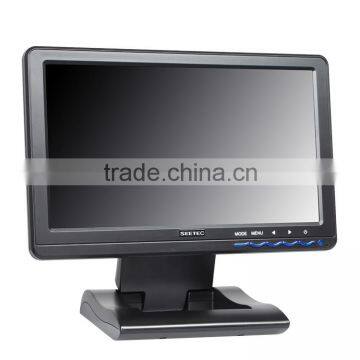

ST-101AHT is a 10.1 inch TFT LCD monitor.
> It uses a high quality new LCD Panel,with 1024X600/1366x768 resolution, 450cd/m²/250cd/m² high brightness and 50°/50°(L/R) 30°/50°(U/D) wide angle, which can display clear images.
> It uses LED backlight,which has advantage like Energy-Saving, Long life and environmental protection.
| Description | 10.1" TFT LCD Touch Monitor w/ HDMI Input | ||
| Model | ST-101AHT | ST101AHT-450 | |
| ST101AH W/O Touch | ST101AH-450 W/O Touch | ||
| Brightness | 250cd/m² | 450cd/m² | |
| Touch Screen | 4-Wire Resistive Touch(5-Wire for Optional) | ||
| Touch Interface | USB (RS232 for Optional) | ||
| Dot Resolution | 1024*600 pixels ,up to1920*1440(1366*768 pixels for optional) | ||
| Aspect Ratio | 16:9 | ||
| Contrast Ratio | 500:1 | ||
| Backlight | LED | ||
| Viewing Angle | 50°/50°(L/R) 30°/50°(U/D) | ||
| Input Signal | VGA,Video1,Video2,Audio,HDMI,YPbPr (DVI Input for Optional) | ||
| HDMI Format | 480i,480p,576i,576p,720p,1080i,1080p(50/60Hz) | ||
| Mounting Process | Foldable Stand Bracket and VESA 75*75mm | ||
| Input Voltage | DC9-15V | ||
| Power Consumption | ≤6W | ||
| workingTemperature | -20℃~50℃ | ||
| storage Temperature | -30℃~65℃ | ||
| Unit Size | 255L×163W×34H mm | ||
| 255L×163W× 69H (folding) | |||
| 255L×150W×236H (stretch) (mm) | |||
| Unit Weight | 1040 g | ||

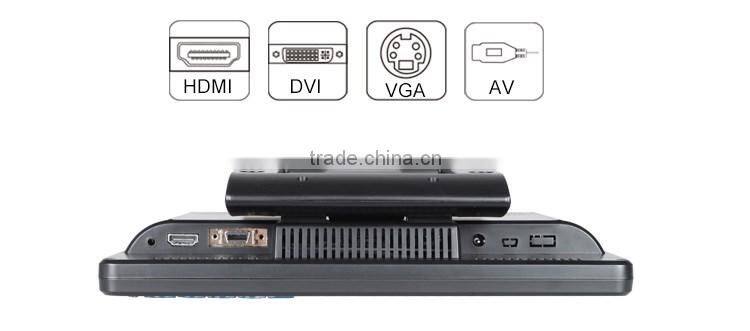

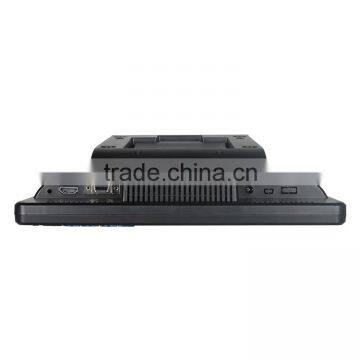

Abundant Interface:
Even small size as 10.1 inch,ST-101AHT also has HDMI,DVI-D,VGA,Audio (1 RCA)&Video (2 RCA)input, which can support many devices like PC, DVR, Camera, DVD,HD Video Player and so on.
>On HDMI Mode,using under scan function,it is possible to display Full HD videos.

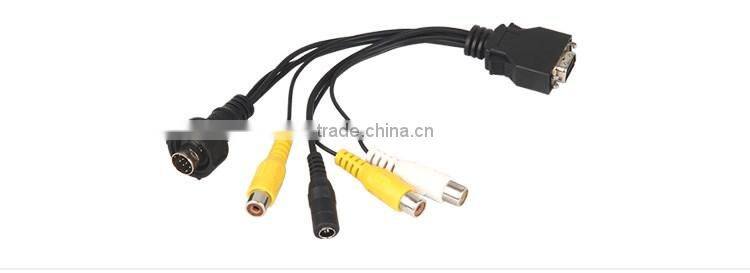

Customized SKS Cable
One Side: Customized 14 Pin SKS terminal
The other side:
> 9 Pin VGA terminal (Black)
> 2 RCA Video terminal (Yellow)
> 1 RCA Audio terminal (White)
> 1 DC input (Black)

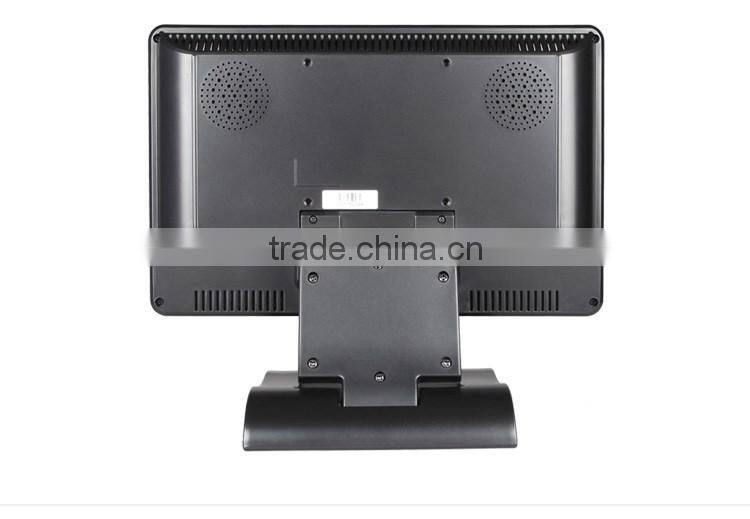

Speaker Built-in:
As the built-in speaker,if there is audio output it does not need to connect external speaker equipment

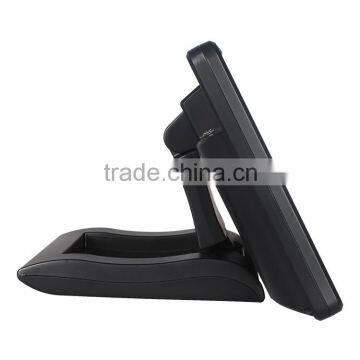

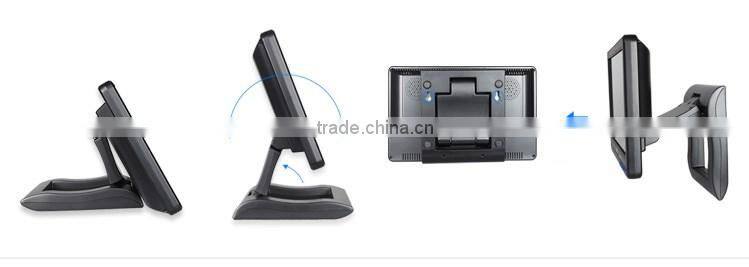

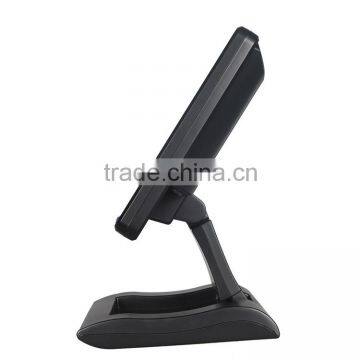

Folding Bracket
> Possible to stretch & folding
> Wall Mount possible

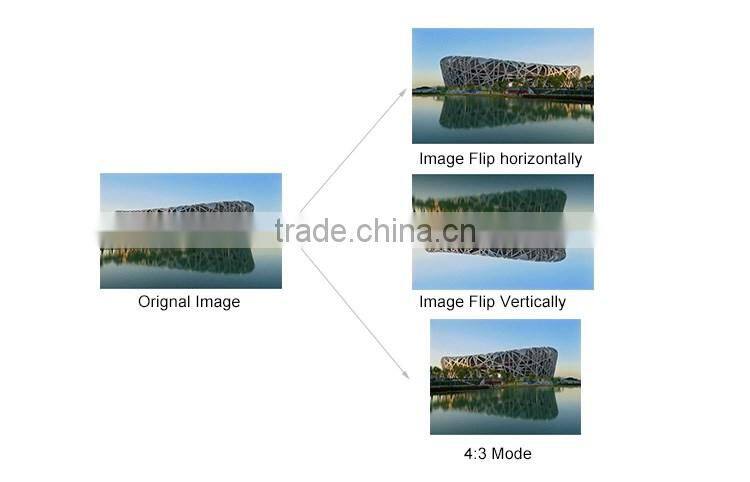

Image Flip Function(Optional)
ST-101AHT has Image Flip(Horizontally & Vertically) function.Using this function.it is convenient to watch the display even the monitor is reverse installation.
Mode Shift between 16:9 to 4:3
Base on different signal input or Practical purposes, you can change the display mode between 16:9 to 4:3.
Support System for Touch:
MAC
Vista
Linux
Win CE
MS-DOS
Window XP
Window NT4
Window 9X/ME
This product employs new integrate circuits and high quality TFT LCD Screen. Advanced advantage is low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with. The color TFT LCD is the most suitable display for VGA,VCD, DVD and GPS system for motorcars and ships. It also can be used in the office, in flat, at home, ATM, Automation, Gaming, Kiosk, Transportation, Military,Oil Gas & Energy,Retail and also in other suitable position. You will certainly benefit from this monitor in lots of ways,to some of them:convenience,safety,space-saving.
Gift&neutral box 10 pcs/carton
Delivery Information:
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Shipping Method:
By Express: Fedex,DHL,EMS,TNT,UPS,
By Logistics: by air&sea
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
.If by paypal, Please note items will only be shipped to verified users with confirmed shipping addresses
.If by T/T, shipping address as communicate
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible After Service
SEETEC designs and manufactures small HD LCD monitors. Products cover on-camera LCD field monitor, VGA/HDMI/HD-SDI LCD monior, LCD touchscreen monitor,Industril PC etc.
Our products are finely engineered to ease of use, maximum portability, dependability and durability. We make products at the finest quality you can find in the video and photography field.
SEETEC R&D core team leaders are composed by a dozen senior technical engineers have years of experience. They ensure our products are innovative and consistently push the boundaries of both technology and design.
We listen to every customer, and take care of their feedback and advices. It is a good way to improve our products and service. Our mission is to develop creative products to customers with a good experience.
We have also several years experience in OEM & ODM orders, and we can meet a variety of customized requirements of customers worldwide. If you have any interest or advice, please feel free to contact us.
