Product Details
| Products Status | Stock | Screen Size | Other, 8" | |
| Type | Resistive | Interface Type | USB, Other, USB, VGA,Video1,Video2,Audio,HDMI (DVI Input for Optional) | |
| Resolution | Other, 800X480 | Brand Name | SEETEC | |
| Model Number | ST819AHT | Place of Origin | Fujian, China |
Product Description
8 inch touch panel tft standalone tablet digital display widescreen lcd monitor

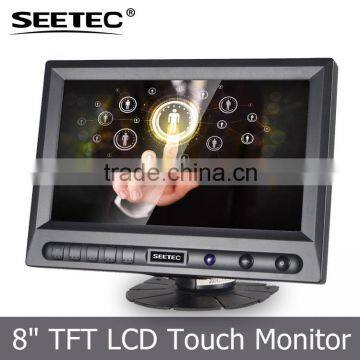

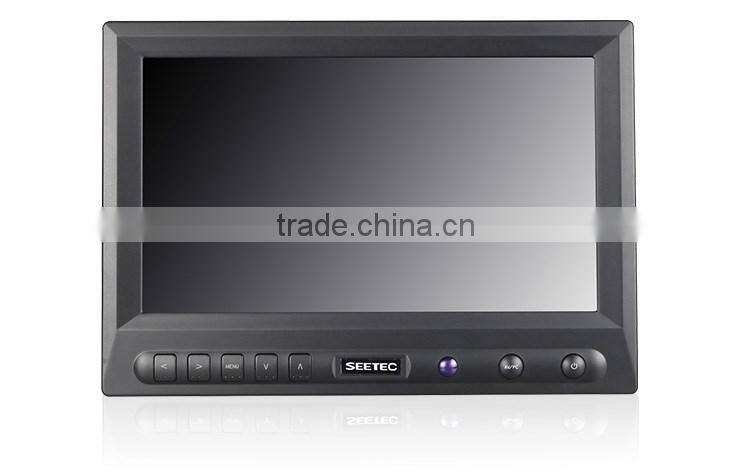

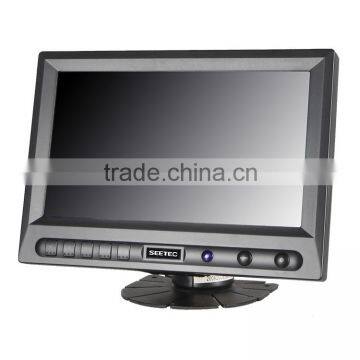

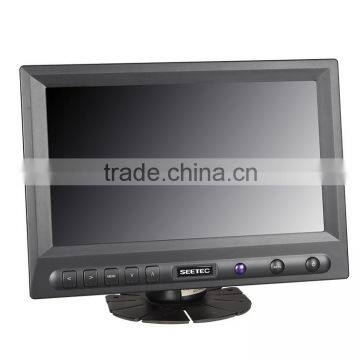

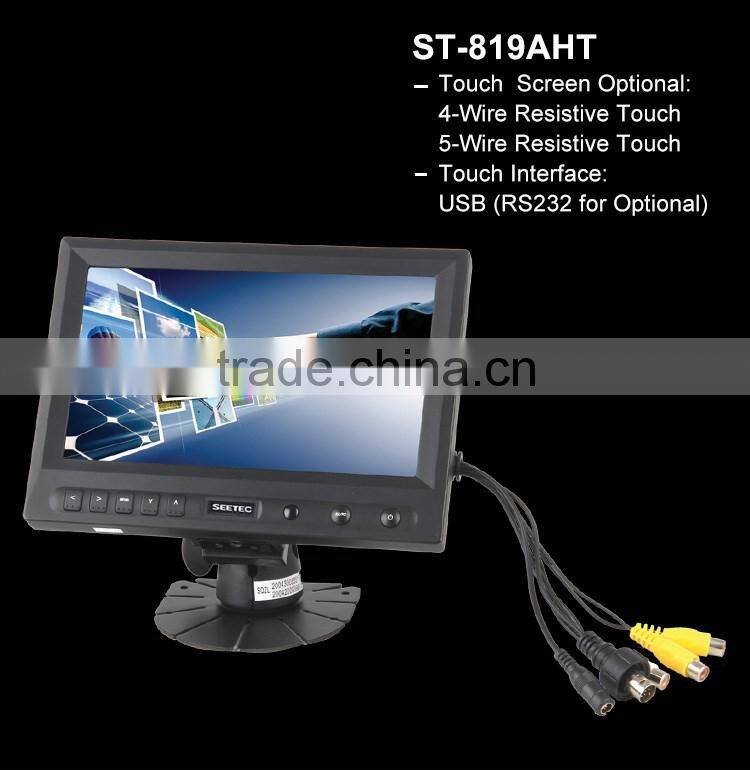

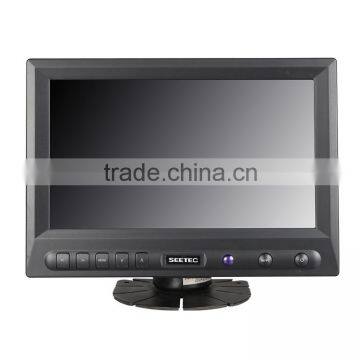

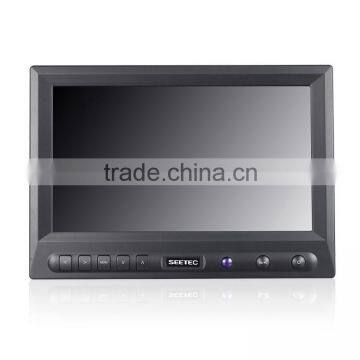

> ST-819AHT is a 8 inch TFT LCD monitor.
> It use a high quality new LCD Panel,with 800x480 resolution,300/450cd/m² high brightness and 70°/70°(L/R) 50°/70°(U/D) wide angle, which can display clear images.
> It uses LED backlight,which has advantage like Energy-Saving,Long life and environmental protection.
| Description | 8" TFT LCD Touch Monitor w/ HDMI Input | ||
| Model | ST-819AHT | ST819AHT-450 | |
| ST-819AH W/O Touch | ST819AHT-450 W/O Touch | ||
| Brightness | 300cd/m² | 450cd/m² | |
| Touch Screen | 4-Wire Resistive Touch(5-Wire for Optional) | ||
| Touch Interface | USB (RS232 for Optional) | ||
| Dot Resolution | 800*480 pixels (max to1920*1440) | ||
| Aspect Ratio | 16:9 | ||
| Contrast Ratio | 500:1 | ||
| Backlight | LED | ||
| Viewing Angle | 70°/70°(L/R) 50°/70°U/D | ||
| Input Signal | VGA,Video1,Video2,Audio,HDMI (DVI Input for Optional) | ||
| HDMI Format | 480i,480p,576i,576p,720p,1080i,1080p(50/60Hz) | ||
| Mounting Process | Stand Bracket | ||
| VESA 75*75mm | |||
| 1/4-20 Hole in the bottom | |||
| Input Voltage | DC 7-18V | ||
| Power Consumption | ≤6W | ||
| workingTemperature | -20℃~60℃ | ||
| storage Temperature | -30℃~70℃ | ||
| Unit Size | 208L x 147W x 33H(mm) | ||
| Unit Weight | 535g | ||
Abundant Interface:
Even small size as 8 inch,ST-819AHT also has HDMI,DVI-D,VGA,Audio (1 RCA)&Video (2 RCA) input, which can support many devices like PC, DVR, Camera, DVD,HD Video Player and so on.
>On HDMI Mode,using under scan function,it is possible to display Full HD videos.

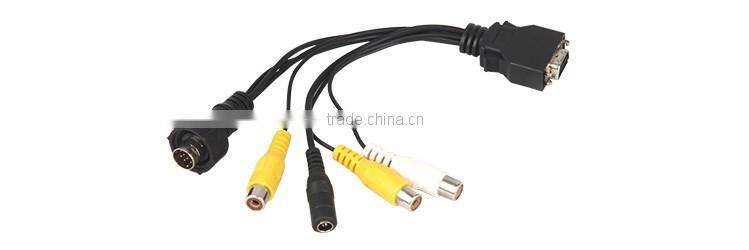

Customized SKS Cable
One Side: Customized 14 Pin SKS terminal
The other side:
> 9 Pin VGA terminal (Black)
> 2 RCA Video terminal (Yellow)
> 1 RCA Audio terminal (White)
> 1 DC input (Black)

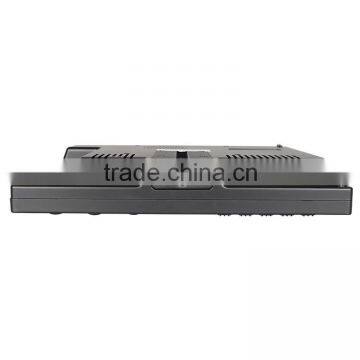

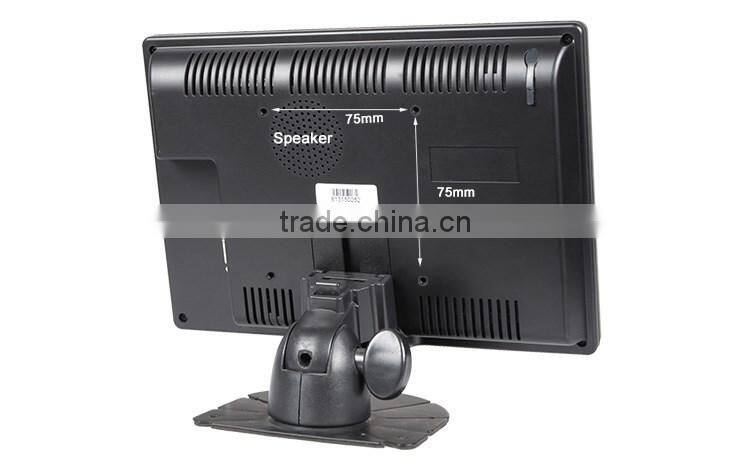

VESA 75mm Mount Holes:
There are VESA 75 mm Mount holes (FPMPMI) On rear side of the monitor.So it can be used with wall mount arm which support VESA 75mm.
Speaker Built-in:
As the built-in speaker,if there is audio output it does not need to connect external speaker equipment

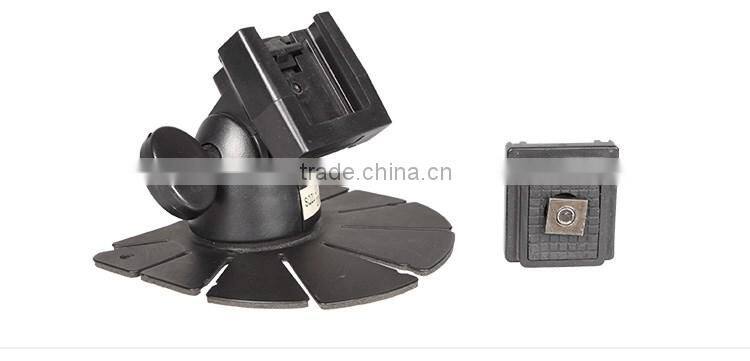

Standard Bracket:
Portable Bracket . It is convenient to adjust the monitor as 360-degree horizontal and 90 degree vertical.
Support System for Touch:
MAC
Vista
Linux
Win CE
MS-DOS
Window XP
Window NT4
Window 9X/ME
Image Flip Function
ST-819AHT has Image Flip(Horizontally & Vertically) function.Using this function.it is convenient to watch the display even the monitor is reverse installation.
Mode Shift between 16:9 to 4:3
Base on different signal input or Practical purposes, you can change the display mode between 16:9 to 4:3.
This product employs new integrate circuits and high quality TFT LCD Screen. It is putting out with its low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with. The color TFT LCD is the most suitable display for VGA,VCD, DVD and GPS system for motorcars and ships. It also can be used in the office, in flat, at home, ATM, Automation, Gaming, Kiosk, Transportation, Military,Oil Gas & Energy,Microscope,Retail and also in other suitable position. You will certainly benefit from this monitor in lots of ways,to some of them:convenience,safety,space-saving.
Gift&neutral box 10 pcs/carton
