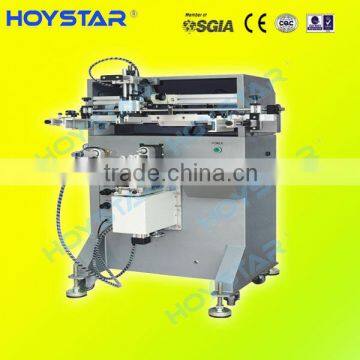

perfume bottle manual/semi automatic type curved surface screen printer for pens and mugs

application:

it is a curved surface screen printer, it can print round items, such as, pen, bottle, cap,ball, mugs,oil filter, syringes

Product production:

1. All function is controlled by Mico-computer,high automatic and easy operation
2.4-digit automatic counter built-in
3.Having the function of printing cylindric or taper object
4.Both printing stroke and speed are adjustable that meets different printing requirement
5.Worktable adjustable on up/down,left/right and plane angle,easy and fast adjustment to
achieve high printing precision
6.Pneumatic printing controlled and equipped woth pressure adjustment system
7.The machine is controlled by mico-computer which is stability and reliability
8.Clear bright blue display,can display work estate of the machine at any moment
9.High-quality AUTONICS sensor and perfect fault alarm system
10.Convenient food switch,easy operation and maintained convenience
11.Light and steady aluminum alloy parts and import of enduring bearings and axle sleeves
12.International famous pneumatic units such us SMC,FESTO and so on
13.Independently printing and ink covering speed control.

Technical parameter:

piece diameter:≤120mm
2.Printing height: ≤ 250mm
3.Max. printing speed: 1500pcs/hour
4.Power: 220V 60/50Hz 50VA
5.Out dimension:1000x720x1250mm
6. Weight:170kg
