1 color semi-automatic glass bottle round screen printing machine

1.All function is controlled by Mico-computer,high qutomatic and easy operation
2.4-digit automatic counter built-in

3. Having the function of printing cylindric or taper object
4.Both printing stroke and speed are adjustable that meets different printing requirement
5.Worktable adjustable on up/down,left/right and plane angle,easy and fast adjustment to
achieve high printing precision
6.Pneumatic printing controlled and equipped woth pressure adjustment system
7.The machine is controlled by mico-computer which is stability and reliability
8.Clear bright blue display,can display work estate of the machine at any moment
9.High-quality AUTONICS sensor and perfect fault alarm system
10.Convenient food switch,easy operation and maintained convenience
11.Light and steady aluminum alloy parts and import of enduring bearings and axle sleeves
12.International famous pneumatic units such us SMC,FESTO and so on

13.Independently printing and ink covering speed controll

Technial parameter:

piece diameter:≤175mm
piece length:≤250mm
3.Printing entire circle diameter:≤120mm
4.Max.Printing speed:1200pcs/hour
5.Power:110/220V 60/50Hz 50VA
6.Air consumption :56Litre/min(6bar)
7.Out dimension:1000x720x1250mm
8. Weight:240kg

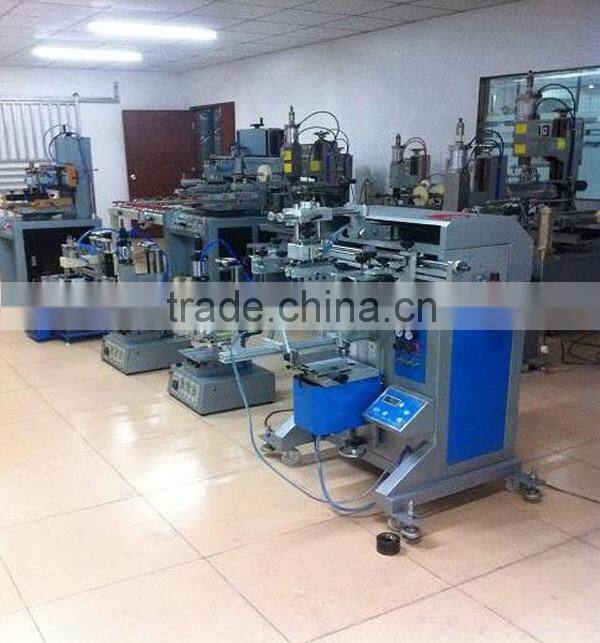

Machine pictures:
