Light Concrete Wall Panel Making Machine
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Light Concrete Wall Panel Making Machine | |
| Brick Raw Material | Cement | Processing | Brick Molding Machine | |
| Method | Vacuum Extruder | Automatic | Yes | |
| Capacity | 1.5m~2m/min | Place of Origin | Henan, China | |
| Model Number | 90*600mm | Voltage | 380V | |
| Power | 5.5kw+0.8kw | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

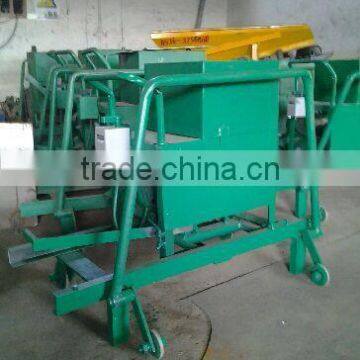

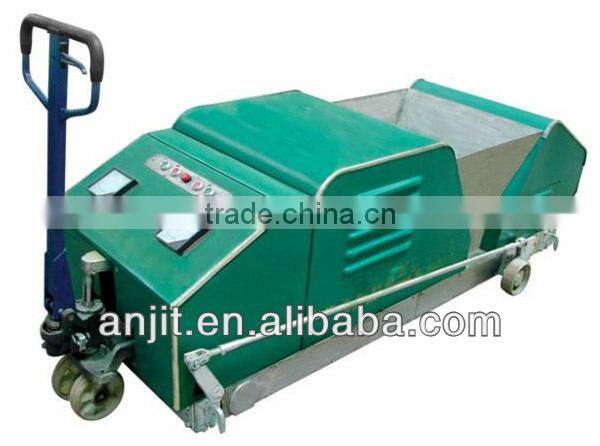

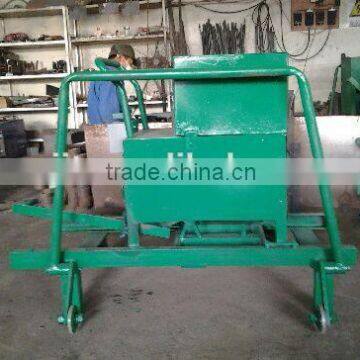

Light Concrete Wall Panel Extruding Machine
Prestretching or pretensioning rebar (1.6-3mm), up 4 pieces, and lower 4pcs,
Portland cement as the gelling agent
Low carbon steel wire as the reinforced material
Rich Materials: Expanded Perlite, Ceramsite, Cinder, Fly ash, River Sand, Grain Slag, Staw etc.
Specific of main machine:
Special technology, save cost, improve quality and efficiency.
Interior wall panel making machine: 60*600mm, 70*600mm, 90*600mm, 100*600mm, 120*600mm
Exterior wall panel making machine: 150*600mm, 180*600mm, 200*600mm

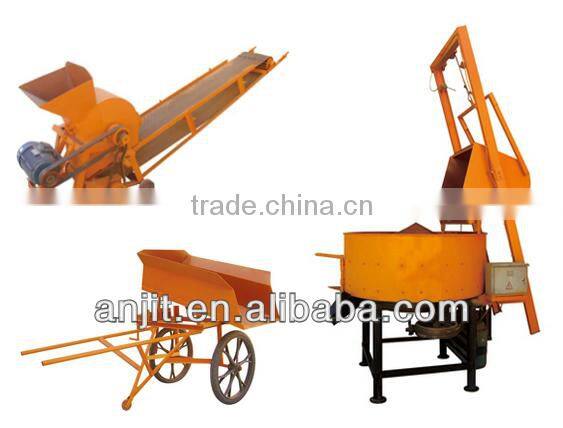

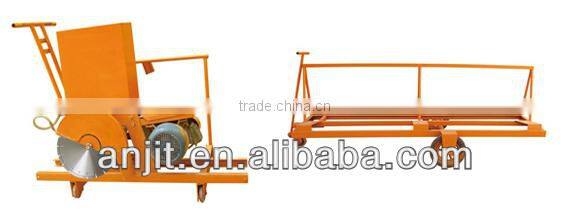

Accessories: Screen, Crusher, Mixer, Cutter, Dumper, Board Carrier, Wire Rack, etc.
Characteristics:
1- High efficiency, can produce 1.5m~2m/min board;
2- Uniform board density;
3- High mechanization degree, hydraulic lifting;
4- Save energy;
5- Long lifetime, Reamer can produce more than 80000meter boards, vibration layering can produce more than 100000meters boards.
Lightweight wall panel making machine technical parameters:
Model | Slab Width (mm) | Slab Thickness (mm) | Holes Qty.* Dia. (mm) | Forming Speed (m/min) | Motor Power (KW) | Vibrator (KW) | Weight (KG) |
80*600 | 595±2 | 78±1 | 8xΦ43 | >=1.6 | 4 | 0.8 | 1010 |
90*600 | 595±2 | 88±1 | 7Xφ58 | >=1.6 | 5.5 | 0.8 | 1050 |
100*600 | 595±2 | 98±1 | 7xΦ62 | >=1.6 | 5.5 | 0.8 | 1150 |
120*600 | 595±2 | 118±1 | 5xΦ82 | >=1.6 | 5.5 | 0.8 | 1300 |
150*600 | 595±2 | 148±1 | 5xΦ110 | >=1.6 | 5.5 | 1.1 | 1500 |
180*600 | 595±2 | 178±1 | 5xΦ132 | >=1.6 | 7.5 | 1.1 | 1800 |
200*600 | 595±2 | 198±1 | 3xΦ145 | >=1.6 | 7.5 | 3 | 2000 |
