Home > Products > Clay Brick Making Machine > Reamer Diameter 400mm Clay Brick Making Machine
Reamer Diameter 400mm Clay Brick Making Machine
- Qingdao Shanghai Tianjin
- T/T
You May Like
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Clay | Processing | Brick Production Line | |
| Method | Vacuum Extruder | Automatic | Yes | |
| Capacity | 8000-10000pcs/hour | Place of Origin | Henan, China | |
| Brand Name | Anjit | Model Number | JZK400 | |
| Voltage | 380V/50HZ | Power | 90-110kw | |
| Dimension(L*W*H) | 5500*2300*2580 mm | Certification | ISO | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

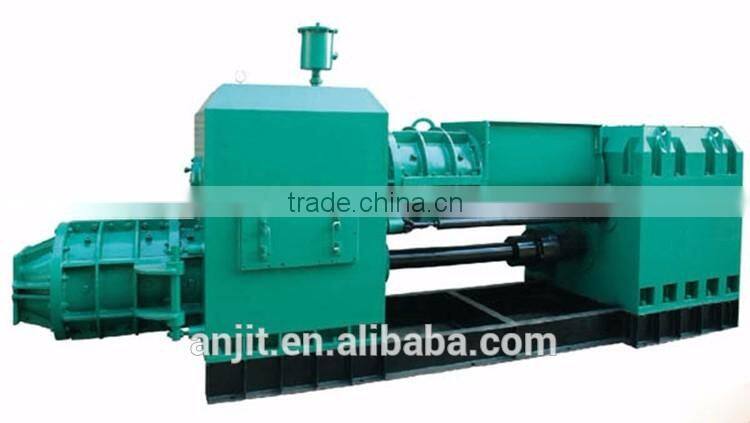

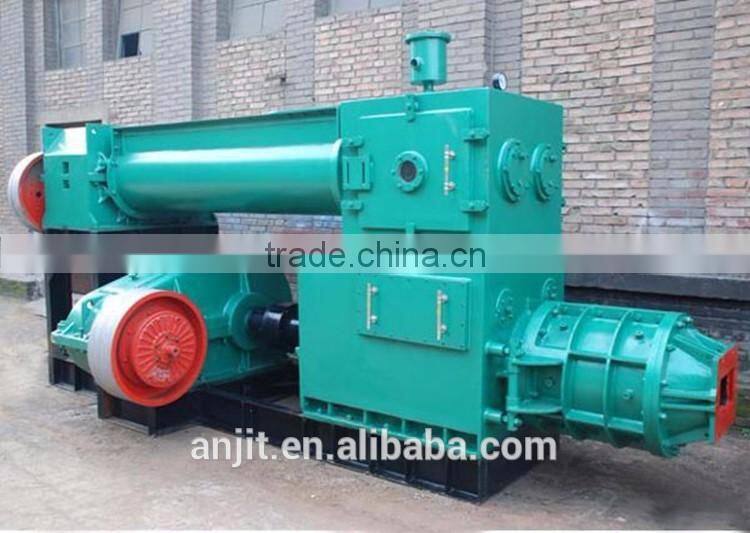

JZK400 Clay Brick Vacuum Extruding Machine
Introduction:
Clay brick making machine, also named double stage vacuum extruder, is suitable for producing all kinds of hollow bricks, cell bricks and solid bricks with clay, shale, coal gangue, as well as slag etc as its raw materials.
Characteristics:

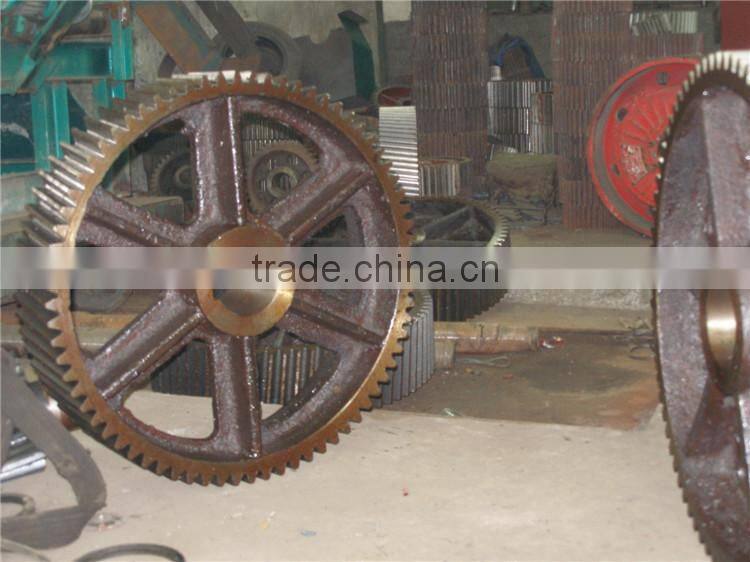

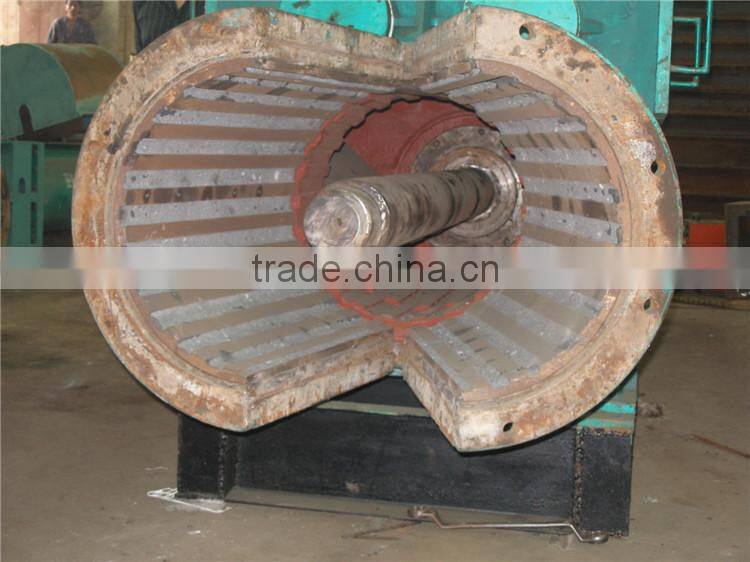

Vacuum extruder is with many advantages, such as reasonable design, compact structure, steady running, easy operation, low consumption and so on. The spiral reamer adopt wear-resistance metal spray painting technology; the upper stage mixing shaft, the reamer shaft, and the body of the machine are all passed the aging, quenching and tempering process; The reducer gearwheel adopts the spiral pressure plate patent technology on the clutch largely prolonged the service time of the machine.
Specification:
Item | Data. |
Productivity (standard brick) | 8000-10000 Pcs/h |
Reamer Dia. | 400 mm |
Max.extrude pressure | 2.0 Mpa |
Vaccum degree | -0.092° |
Power | 90-110 KW |
overall dimensions | 5500*2300*2580 mm |
Details:
Clay Brick Processing flowchart:
In order to offer you professional data, please let's us know your detail requirements:
1- How many pieces of clay bricks per hour or per day you want to make?
2- What's your clay brick size?
3- If you need hollow clay brick, please send us your hollow brick drawing.
Contact us now by the following way:
Contact Us
- Zhengzhou Anjit New Equipment Co., Ltd.
- Contact nameJenny Chen Chat Now
- Phone86-371-65316537
- Address#8 Yunshan Road,High&New Tech Industries Development Zone, Zhengzhou, Henan
