Qingdao XINCHENG sea rubber yokohama marine floating dock fender
- 200 Piece / Pieces per Month
- Qingdao
- T/T
You May Like
-
Made in China Safety equipment use for ship to ship of pneumatic boat rubber fender
-
High performance marine spares CCS certification of rubber inflatable ship fender for sale
-
Used for boat yokohama marine fender for sale
-
CCS certification high performance marine spares of inflatable ship fender
-
Factory professional manufacturing Reduce ship collision marine foam filled fender in China
-
High energy absorption with CCS CCC certification of marine fender for ship or dock
Product Details
| Place of Origin | Shandong, China | Brand Name | XinCheng | |
| Model Number | XC.NO.F157 | Part | Other, dock fender |
Product Description
Qingdao XINCHENG sea rubber yokohama marine floating dock fender
1. Value for Money, you will get the best price.
2. Unrivalled Expertise, we promise trustworthy product quality and service.
3. Good product lifespan and quality warranty.
4. Environment friendly and anti-collision.

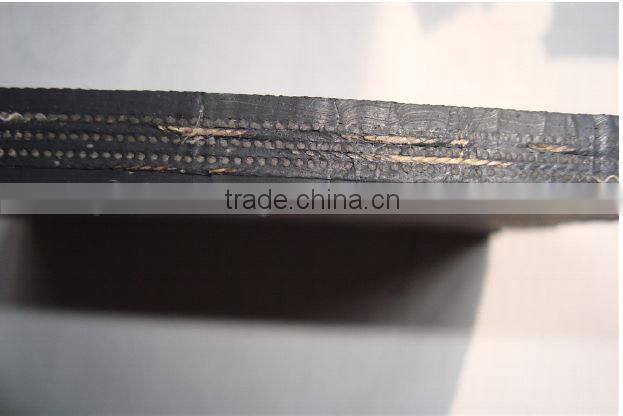

♦—— Fiber layers:

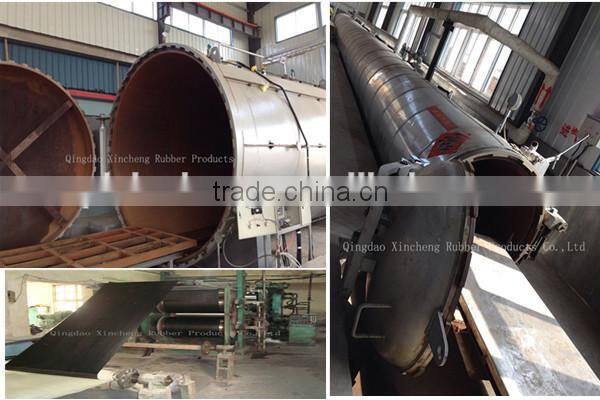

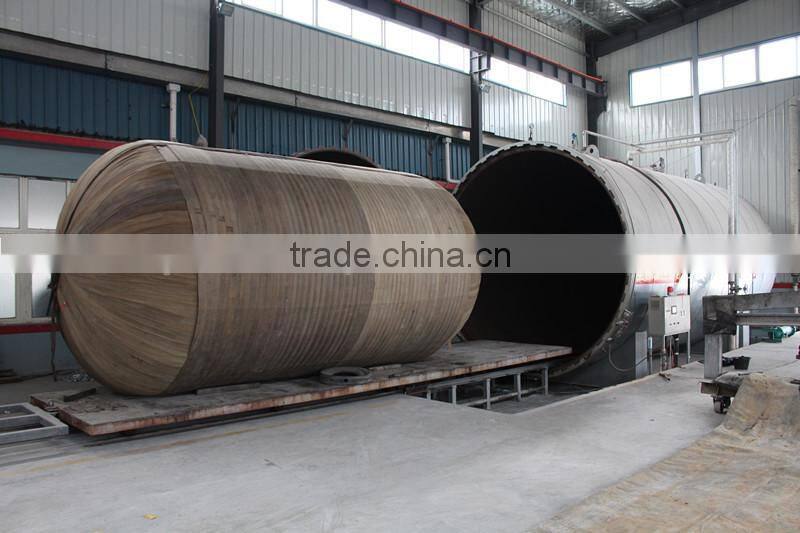

♦—— Our equipment :
Comparing with traditional bumper style rubber fender, it has the following advantages:
1. More energy absorption.
2.Less reverse impact on ships.
3.Less weight.
4.Easy installation.
5.Softer and economical. etc.
So, it is widely used by large tankers, LPG vessels, ocean platforms, large docks, harbor and wharfs.
...............................................................................................................
♦—— The structure of dock fender :
♦—— The specification of dock fender :
size D×L(m) | Initial pressure(Po) is 0.05MPa | Initial pressure (Po) is 0.08MPa | ||||
Weight kg | R(kN) | GEA(KJ) | Weight kg | R(kN) | GEA(KJ) | |
0.5×1.0 | 25 | 64 | 6 | 25 | 83 | 8 |
0.6×1.0 | 32 | 74 | 8 | 32 | 96 | 11 |
0.7×1.5 | 50 | 137 | 17 | 50 | 178 | 24 |
1.0×1.5 | 80 | 182 | 32 | 80 | 235 | 44 |
1.0×2.0 | 100 | 257 | 45 | 125 | 335 | 63 |
1.2×2.0 | 120 | 297 | 63 | 165 | 386 | 86 |
1.35×2.5 | 165 | 427 | 102 | 226 | 554 | 140 |
1.5×3.0 | 315 | 597 | 153 | 370 | 751 | 211 |
1.7×3.0 | 405 | 639 | 191 | 436 | 830 | 263 |
2.0×3.5 | 590 | 875 | 308 | 632 | 1138 | 424 |
2.5×4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
2.5×5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
3.0×5.0 | 1880 | 2104 | 1210 | 2155 | 2709 | 1571 |
3.0×6.0 | 2160 | 2583 | 1485 | 2470 | 3292 | 1888 |
3.3×4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
3.3×6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
3.3×6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
Height: the height of rubber fendernon- coxcombing, Inaccuracy of weight: ±10% Inaccuracy of reaction force: ±10% | ||||||
NOTE: A, Other sizes besides the above also can be customized.
B, All fenders conform to the latest ISO 17357 directives.
C, All kinds of foam filled marine fenders can be available.
D, Can be delivered in various sizes with chain - vehicle/ aircraft tyre net.

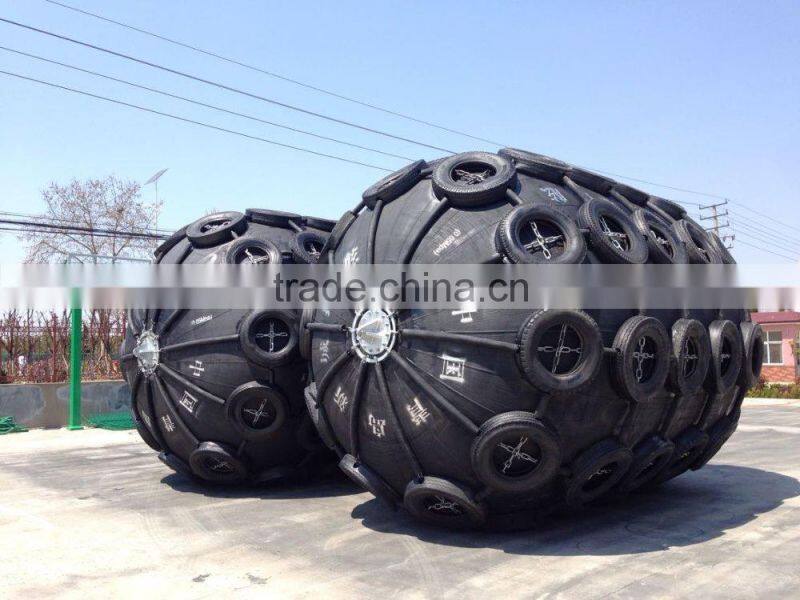

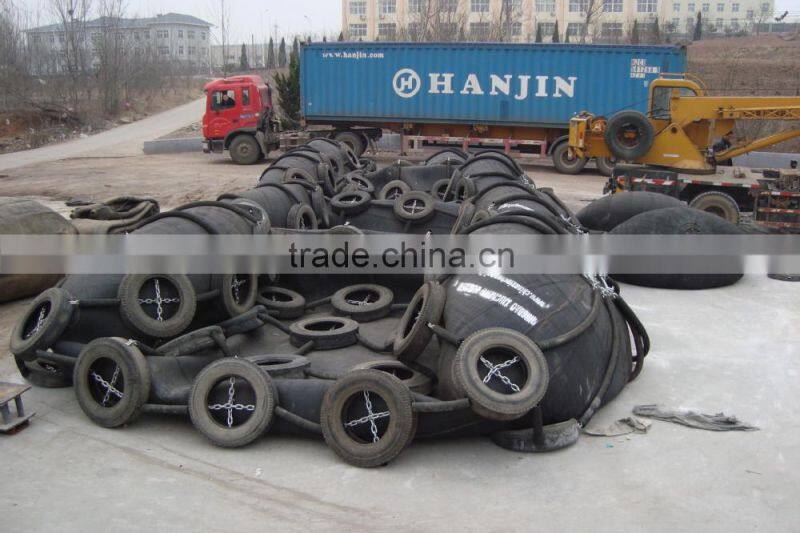

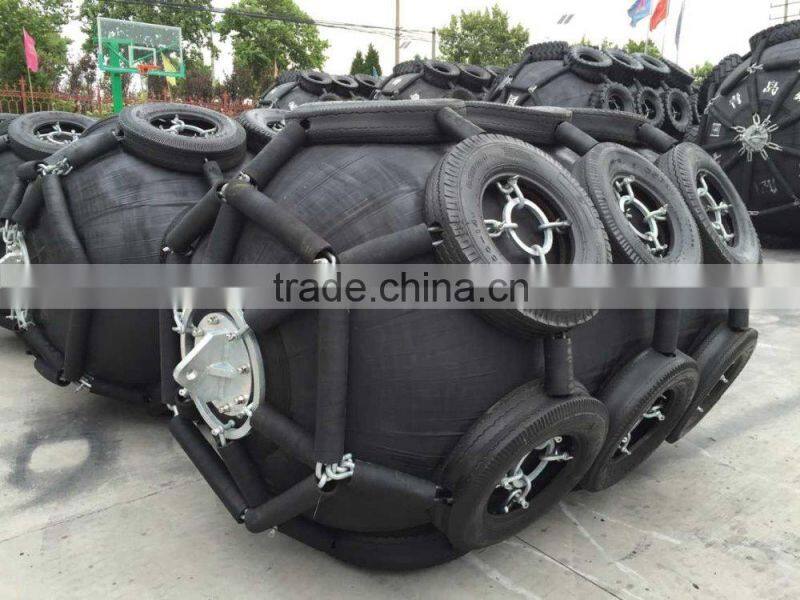

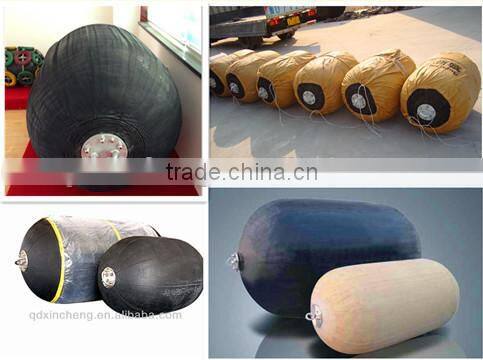

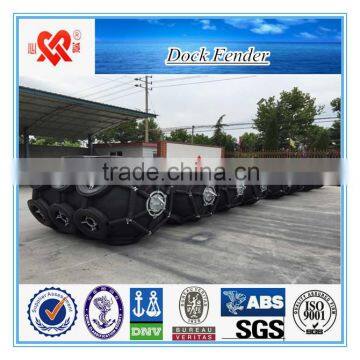

♦—— The photos of dock fender :
♦—— Pressure Test:

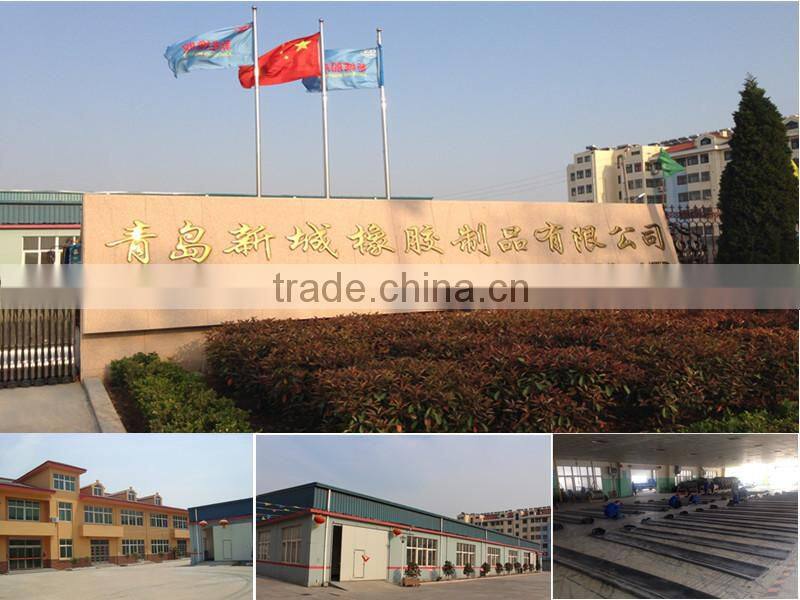

WELCOME TO VISIT OUR FACTORY!
We are looking forward to build business with you. If you have any questions, please feel free to contact me.
