Made in China High Quality Inflatable Marine Fender System

Specifications

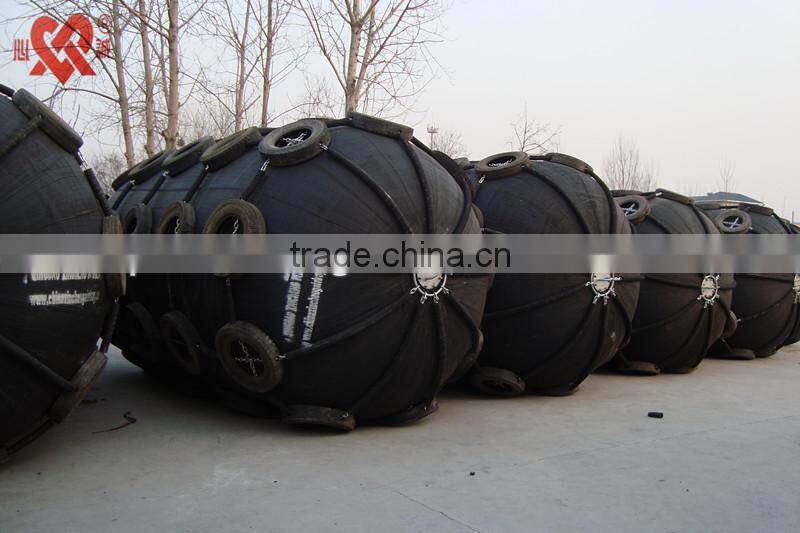

Pneumatic Marine Rubber Fender also known as Rubber Yokohama type fender or Marine Rubber Fender.

Pneumatic Rubber Fender is the advanced anti-collision device for Marine application in the world. It is made of

synthetic nylon lines and compressed rubber sheet. With inner compressed air, it can float on the water and widely

used as protecting medium. It is usually used as an important protecting medium to prevent a collision in craft works and mooring works.

 Pneumatic Rubber Fender (Yokohama Rubber Fender) produced by Xincheng is used very commonly in

the world areas. Compared with Foam Filled Rubber Fender, Pneumatic Rubber Fender owns some advantages

include energy absorption, less reaction, compression deformation, easy floating and installation etc.

Pneumatic Rubber Fender can used in many different occasions, like between ship to ship, ship to dock etc.

Why customers choose our Xincheng Marine Rubber Fenders ?

1. Value for Money, you will get the best price

2. Unrivalled Expertise, we promise trustworthy product quality and service.

3. Good product lifespan and quality warranty

The advantages of Xincheng Pneumatic Rubber Fenders:

1. Good elasticity, absorb the impact energy ,it won’t compression deformation under the pressure

2. Installation is very simple

3. Reasonable price and good quality

4. Environmental protection, it won't bring the pollution problems to our environment

 Purpose

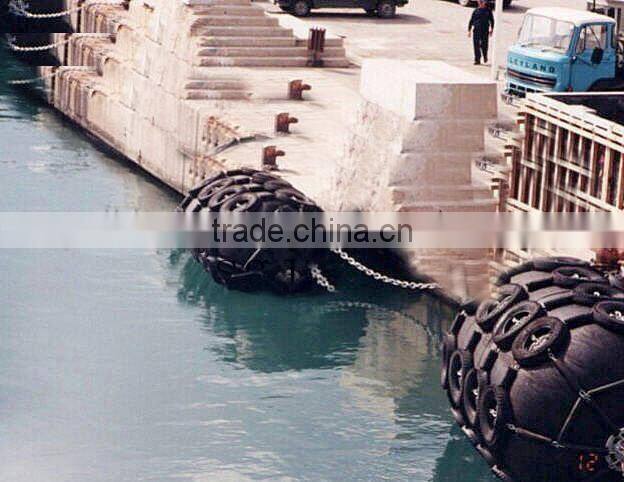

1. Installed in the terminal and dock, used the ship shore and landing.

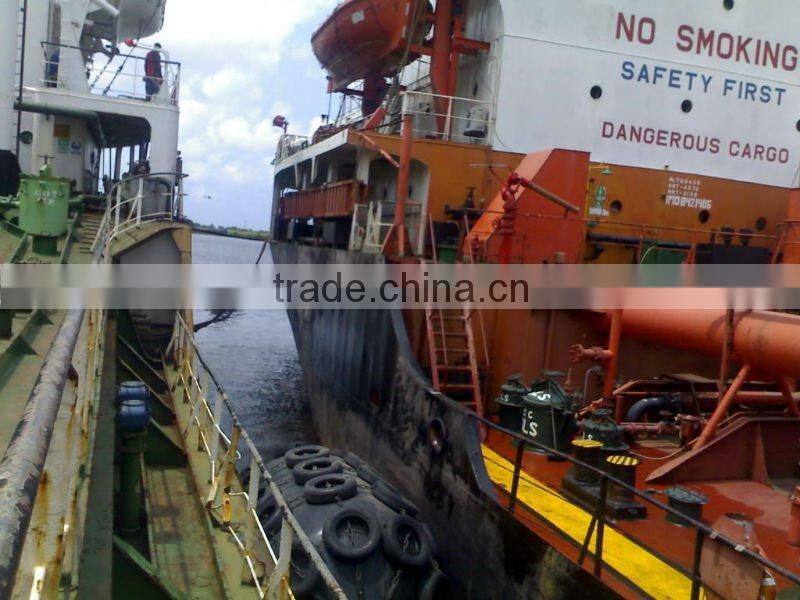

2. Installed in the ship board ,used the ship close to ship.
3. .can as float rod on the sea.
4 .can used carry goods on the sea
5. used airproof pipe

The basic structure of Pneumatic Rubber Fender:

1. The outer rubber

Outside on the ball of rubber layer, which is used to protect by skeleton material and lining rubber ball from

 external force damage or wear.

2..the inner plastic

On the ball inside the rubber layer, which is used to prevent gas leakage and stay on the ball pressure.

3. Cord fabric layer

Composed of hanging plastic cord fabric, the lacquer that bake frame materials

4. Volume line ring

Placed in by ball end (or both) of steel ring, for fixed end cord fabric layer

5. The end of the flange

On the ball at the ends of the metal parts, can be installed charging valve and relief valve.

The specification of Pneumatic Rubber Fender:

Inflation process:

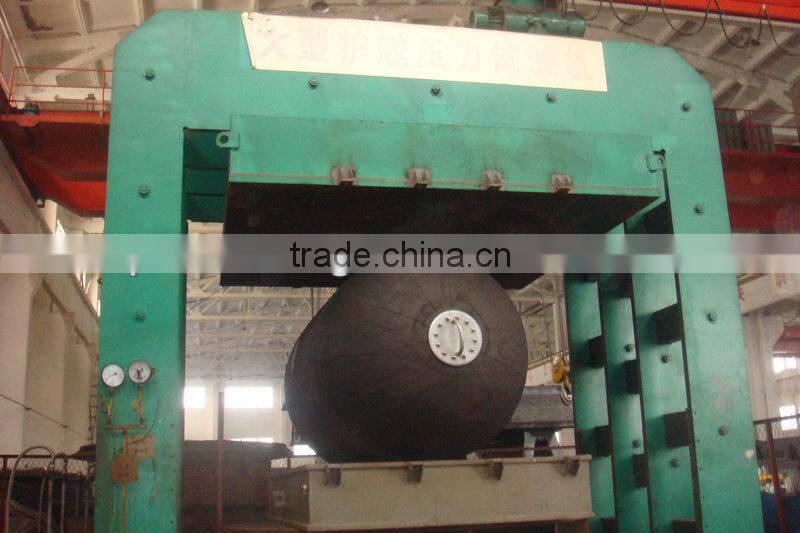

Rubber Fender Pressure Test:

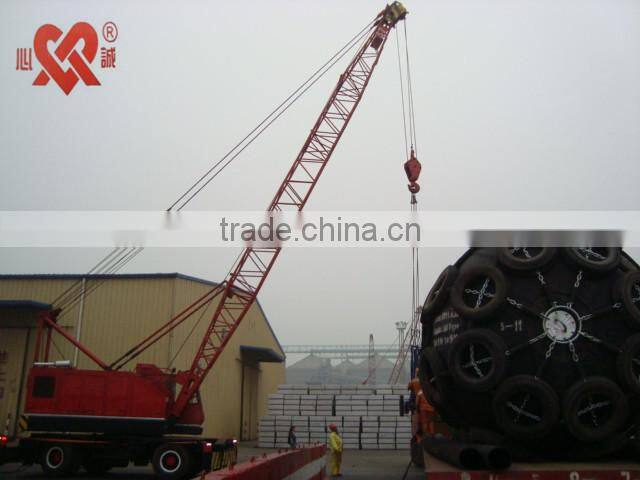

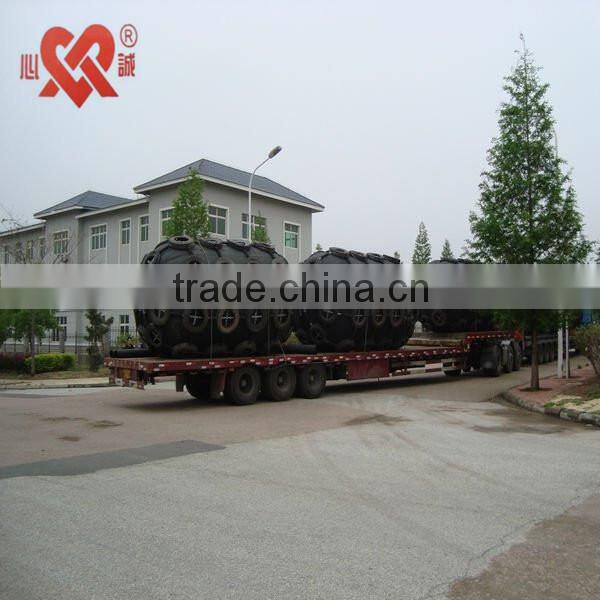

   The transportation and storage of Marine fender:

1. the fender should be keep clean and keep away from hard things in the process of loading and unloading.

2.In the process of transportation, the fender should keep tight and not loose.

3. After the goods to the appointed site, it should use the suitable lifting equipment to unloading

the fender to ensure avoiding admage and impact.

The Certifications of Our Company:

Our company always adhere to the principle of "quality first" and  provides our customers with good products and services.

We are looking forward to  build business with you. If you have any questions, please feel free to contact me.
