Home > Products > Vibrating screen > Self -centering Vibration Screen / Mining Equipment/Linear Vibrating Screen

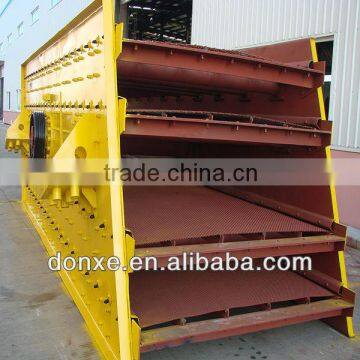

Self -centering Vibration Screen / Mining Equipment/Linear Vibrating Screen
- 10 Set / Sets per Month
- QINGDAO/SHANGHAI
- T/T
You May Like
-
High Efficiency Vibrating Screen For Mining Industry
-
High screening efficiency stainless steel mining equipment vibrating screen
-
Hot sale three layer circular vibrating screen with good quality
-
YK/YZ series Round Vibrating Screen
-
2014 china hot sale vibrating screen
-
China hot sale liner vibrating screen /vibration sieve for separating powder
Product Details
| Condition | New | Type | Linear | |
| Application | Other, mining and construction | Place of Origin | Shanghai, China | |
| Brand Name | DONXE | Model Number | 2YA 1548 | |
| Power(W) | 15000 | Dimension(L*W*H) | 5111x2585x3053 | |
| Weight | 4000kg | Certification | ISO9001:2000 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Long screen line.Correct to screen all kinds of specification products.
Reliable structure.
Convenient maintenance.
Brief Introduction of Vibrating Screen
Vibrating Screen earns this name by reason of its approximately circular movement. It is of multilayer and high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. This kind of screen is of long streamline, many specifications and clear screening for different specifications.
Working principle of vibrating screen
It uses eccentric block to produce strong exciting force. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance. It adopts tire clutch with capability of flexible connection and stable operation. It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise.
Technical parameter of vibrating screen
Model | Layer of Screen | Double Ampli-tude (mm) | Size of Sieve Pore | Max Feeding Size | Capacity | Motor Power | Vibrating Frenquency | Screen Specification | Total Weight (kg) (Excluding Electric) | Overall Dimensions (L×W×H) (mm) |
2YA1237 | 2 | 8 | 4-50 | 400 | 16-90 | 7.5 | 960 | 1200×3700 | 3600 | 4010×1900×1195 |
3YA1237 | 3 | 8 | 4-50 | 400 | 16-90 | 7.5 | 960 | 1200×3700 | 4200 | 4010×1900×1650 |
2YA1548 | 2 | 8 | 5-50 | 400 | 22.5-162 | 15 | 870 | 1500×4800 | 5980 | 5110×2170×1195 |
3YA1548 | 3 | 8 | 5-50 | 400 | 22.5-162 | 15 | 870 | 1500×4800 | 6600 | 5110×2170×1650 |
2YA1848 | 2 | 8 | 5-80 | 400 | 32-276 | 18.5 | 870 | 1800×4800 | 7080 | 5110×2470×1195 |
3YA1848 | 3 | 8 | 5-80 | 400 | 32-276 | 18.5 | 870 | 1800×4800 | 7600 | 5110×2470×1650 |
2YA1860 | 2 | 8 | 5-100 | 400 | 65-586 | 22 | 870 | 1800×6000 | 8400 | 6260×2540×1195 |
3YA1860 | 3 | 8 | 5-100 | 400 | 65-586 | 22 | 870 | 1800×6000 | 9100 | 6260×2540×1650 |
2YA2160 | 2 | 8 | 5-100 | 400 | 81-720 | 30 | 730 | 2100×6000 | 9780 | 6260×2980×1380 |
3YA2160 | 3 | 8 | 5-100 | 400 | 81-720 | 30 | 730 | 2100×6000 | 11800 | 6260×2980×1780 |
2YA2460 | 2 | 8 | 5-100 | 400 | 90-810 | 37 | 770 | 2400×6000 | 13600 | 6260×3280×1500 |
3YA2460 | 3 | 8 | 5-100 | 400 | 90-810 | 37 | 770 | 2400×6000 | 15600 | 6260×3280×1910 |
