wire CLC cutting machine
USD $10,000 - $15,000
/ Set
1 Set(Min.Order)
- 200 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Interlock Block Making Machine | |
| Brick Raw Material | Other, cement,flyash,fine sand... | Processing | Brick Cutting Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 0.864m3/time | Place of Origin | Henan, China | |
| Brand Name | Anjit | Model Number | GYC-60B | |
| Voltage | 380V/50HZ | Power | 1.5KW+0.55KW+0.55KW | |
| Dimension(L*W*H) | 2160*2220*2280mm | Certification | ISO9001:2008 | |
| Warranty | 12months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
GYC-60B New Wire Cutting Machine
GYC-60B New Wire Cutting Machine is improved on the basis of the GYC-60A wire cutting machine, It is specially used to cut various foam concrete blocks. Easy operation, high efficiency.
New wire cutting machine main performances:
- Six shafts equipped with bearings, reduce the friction, and increase the rope wire lifetime.
- Both horizontal and vertical cutting are cutting both way, keep the blocks more stable, and get good shape blocks.
- Lifting speed could be also adjusted under the chain drive and lifting motor, more stable.
- Two cutting motors equipped on the cutting frame, save space, and make the structure more impact.
- Steel doors instead of the guard grids, more easy for daily maintenance.
- Add cover on the top of the cutting machine, make the cutter elegant appearance.
- Improved the control panel too, it is available for 380V/50HZ.
Technical Data:
Item | Data |
Overall dimension (L*W*H) | 2160*2220*2280mm |
Cutting platform size (L*W*H) | 1300*1300*600mm |
Net cutting size (L*W*H) | 1200*1200*600mm |
Motor | 1.5kw*1set, 0~560r/min adjusted |
550w*2sets, 0~560r/min adjusted | |
Effective hoisting height | 800mm |
Total weight | 1200kg |
Cutting cycle | 3-6mins |
GYC-60B Cutter testing:

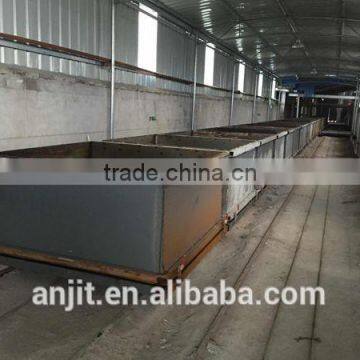

Block mould & Demoulder:
