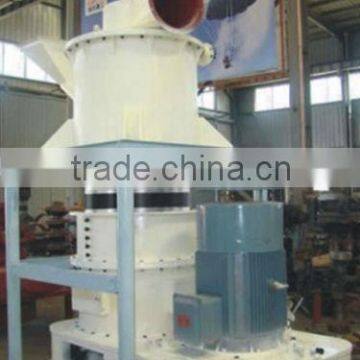

HGM Series Micro-powder Grinder

Specifications

Description of HGM Series Micro-powder Grinder
HGM Series of Three-rings and Medium-speed Micro-powder Grinder is widely used in making fine powder or ultra-fine powder, and the raw materials should be non-inflammable and non-explosive under the Moh's hardness less than 6 grade such as limestone, calcite, dolomite, kaolin, bentonite, talc, illite, pyrophillite, barite, meerschaum, fluorite, potash ore, etc. The lifetime of spare parts is relied on the hardness of raw materials, and is lowered once the Moh's hardness is up to 4-6 grades.

Advantages of HGM Series Micro-powder Grinder
1.Three-dimensional structure
2.Land-saving
3.The screen-passing rate can reach to 99%
4.The transmission is steady and reliable
5.The transmission device of mainframe adopts airtight gear case and zonal wheel
6.Centralized control for the electric system, convenient to operate

Working Principle of HGM Series Micro-powder Grinder
The material in the Silo will fall down into the Feeding tube evenly through the Vibrating Feeder, and then fall onto the upper scattering plate, after that will scatter on the gap between the roller and ring. The material into the inner wall of the rollers will be reground, and then fall down onto the lower scattering plate. And the fine powder conforms to the standard will be discharged into the Dispersive Twin-pipe Cyclone Separator, and then be discharged. And the massiveness will enter the grinding wall to be reground. The air current with the dust will enter into the lower part of the Pulse Bag Dust Catcher, and then be discharged through the Rotational Discharging Device after filtering dust.

Main Technical Parameters
