China Factory of CE Approved Anti Collision Tower Crane (QTZ5610 QTZ5013)
- Tianjin Or Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
-
China Factory of CE Approved Mobile Tower Crane (QTZ5610 QTZ5013)
-
China Factory of CE Approved Over Head Tower Crane (QTZ5610 QTZ5013)
-
China Factory of CE Approved Inner Climbing Tower Crane (QTZ5610 QTZ5013)
-
Beijing Manufacturer CE Standard Automatic Tower Crane Drawing
-
Beijing Manufacturer CE Standard Automatic Used Tower Crane in Dubai
-
Beijing Manufacturer CE Standard Automatic Used Crane in Uae
Product Details
| Application | construction, Construction | |||
| Rated Loading Capacity | 6t | Rated Lifting Moment | 56, 630 KN.M | |
| Max. Lifting Load | 6t, 6T | Max. Lifting Height | 141 | |
| Span | 56m, 56M | Place of Origin | Beijing, China | |
| Brand Name | JIuhong | Model Number | QTZ5610 | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Beijing Jiuhong Heavy Industry Machinery Co., Ltd , a leading manufacturer of construction machinery for 14 years Construction elevator, Suspended platforn ,Material hoist, Consrete spreader are our major products .
To provided satisfied productions and serices is our eternal pursuit and promise . Beijing Jiuhong Heavy Industry hopes to cooperate with you sincerely. anti collision Tower Crane

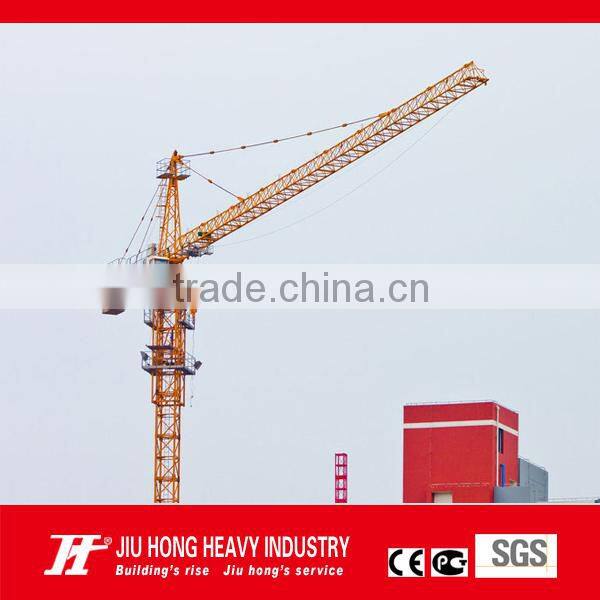

Qtz63(5610) Tower Crane
Technical Parameters
Model | QTZ63B(5610) | QTZ63B(5013) |
Jib Length (M) | 56 | 50 |
Free Height (M) | 41 | 41 |
Max. Possible Height (M) | 161 | 161 |
Max. Load (T) | 6 | 6 |
Tip Load (T) | 1.0 | 1.3 |
Wall-attached Device for Max Height (sets) | 6 | 6 |
Main Material (mm) | Standard Mast Section 135×135×10 (Square Steel Tube) | Standard Mast Section 135×135×10 (Square Steel Tube) |
Mast Section Dimension (m) | 1.835×1.835 ×2.5 | 1.835×1.835 ×2.5 |
Hoisting Speed (a=2) (m/min) | 80/40/10 | 80/40/10 |
Min. Stable Falling Speed (m/min) | 5 | 5 |
Slewing Speed (r/min) | 0-0.62 | 0-0.62 |
Radius-changing Speed (m/min) | 40/20 | 40/20 |
Jacking-up Speed (m/min) | 0.6 | 0.6 |
Total Motor Power (kw) | 55.2 | 55.2 |
Power Supply | 380V/50HZ | 380V/50HZ |
Weight of Independent Structure (T) | 36.80 | 36.80 |
Counterweight (T) | 14.85 | 14.85 |
Base Form | Embedded Type (Outrigger Stationary) | Embedded Type (Outrigger Stationary) |
Number of Containers Needed for Shipment (Free Height) | 6 * 40HC containers | 6 * 40HC containers |
Main Technical Parameters anti collision Tower Crane
1) Nominal Lifting Moment: 800KN.m
2) Working Range: 3-56m
3) Max. Lifting Capacity: 180t
4) Independent Standing Height: 45m
5) Attached Standard Height: 180m
6) Lifting Speed: 0-80m/mim
7) Slewing Speed: 0-0.7r/min
8) Radius Changing Speed: 0-47.3m/mim

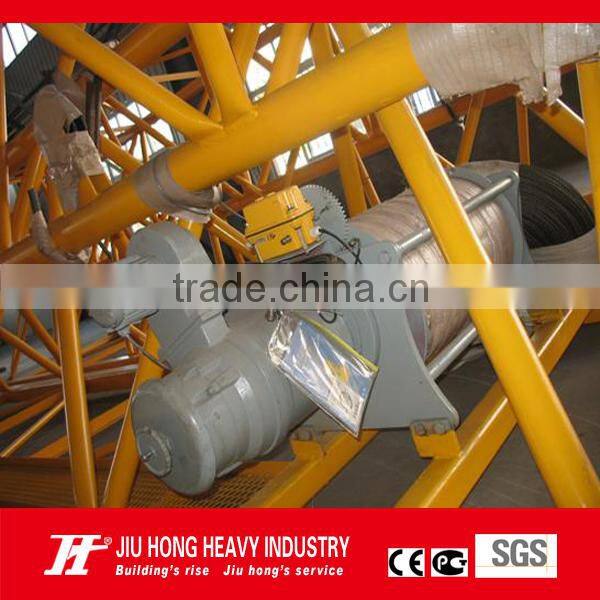

trolley mechanism:
6t Qtz63(5610) Tower Crane
6t Qtz63(5610) Tower Crane
Operator cabin:
Production line :
anti collision Tower Crane
Beijing Jiuhong Heavy Industry hopes to cooperate with you .
Please feel no hesitation to contact us for details!
Tel: 008615206649412 skype : elina.cui8
