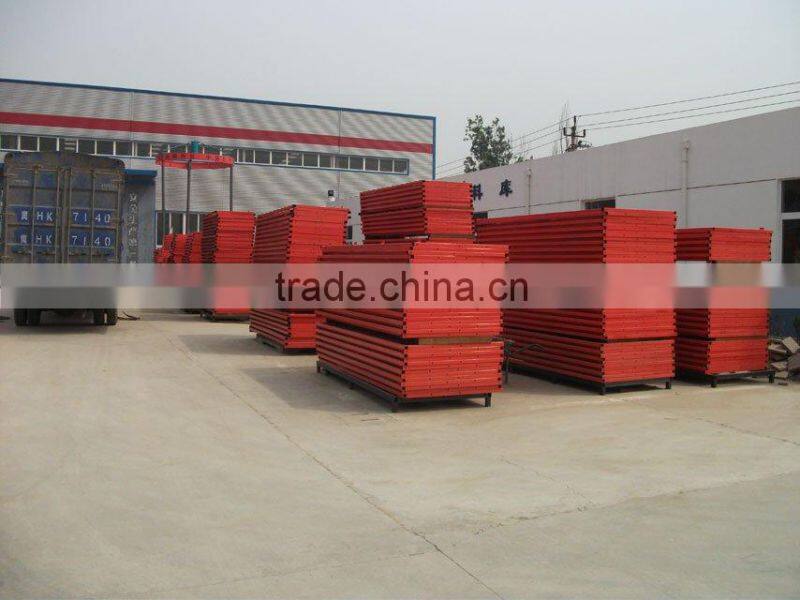

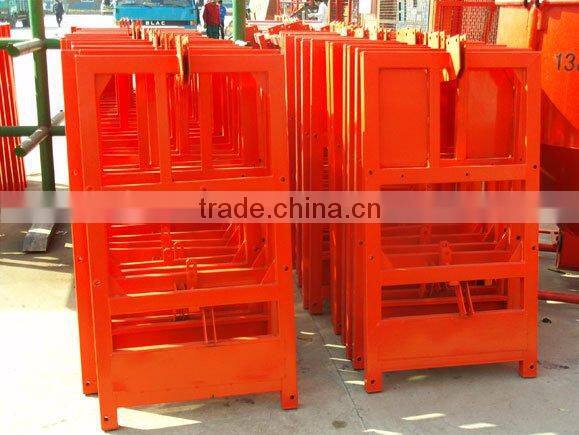

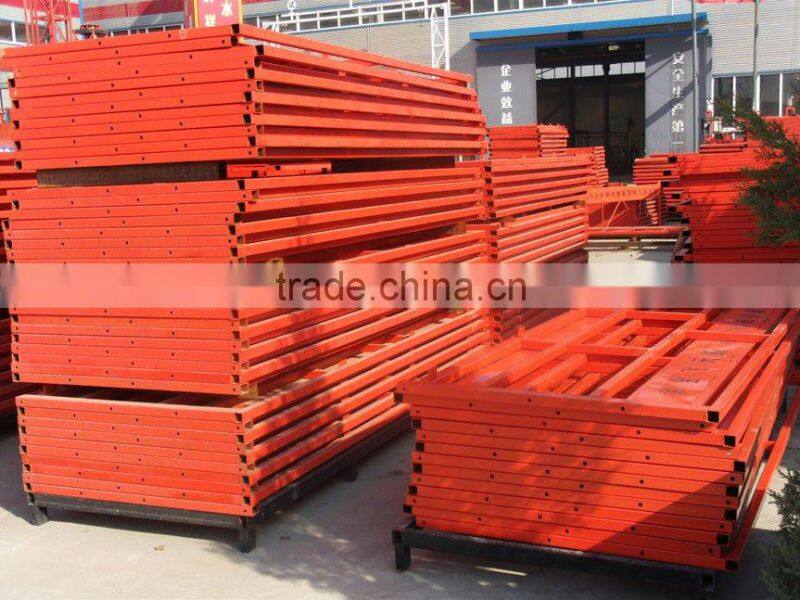

ZLP Work Platform/cradle/gondola
- Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | Jinfei Tianhong | |
| Model Number | ZLP-1000 |
Product Description
Specifications
1.quality approved new design2.wide catogories
plete models
4.wide application

Name: Cradle | Technical Parameter | ||
Rated load | 1000Kg | ||
Lifting Speed | 8-10m/min | ||
Platform Dimension:LXWXH(mm) (Spray plastics corrosion-resistant) | 7500X720X1500 | ||
Lifting Height | 100m | ||
Cable | 100m | ||
Wire rope | Specially-made wire rope 9.1mm | ||
Hoist | Pulling power | 7.84KN | |
Electric motor | model | ||
Permission force of impact | Power | YEJ90L-4 | |
Voltage | (A-type)1.8KW(B-type)2.2KW | ||
Rotational speed | 380V | ||
Braking moment | 1420rpm | ||
30KN | 15Nm | ||
Safety Lock | Permission force of impact | 30KN | |
Locking cable Angle | 3o-8o | ||
Suspension mechanism(galvanized) | Front beam overhang | 1.3m~1.5m | |
Support adjustable overhang | 1.44m~2.14m | ||
Counterweight | 1200KG | ||
20'ft container | 6sets | ||
ZLP series temporarily installed suspend access equipment is climbdecoration electrical machinery,mainly used for
high-level mult-storey buildings and exterior construction and decoration and fittingout works.
For example,plasterig,pulp,veneer,thr installation of curtain walls,and paint coatings,
as well as cleaning.Use of this product may be revealed scaffoldfree,and greatly reduce
the construction cost,efficiency has been greatly increased,the product is the simple flexible,
eay to use,safe and reliable.
