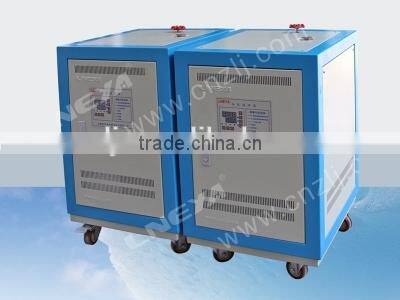

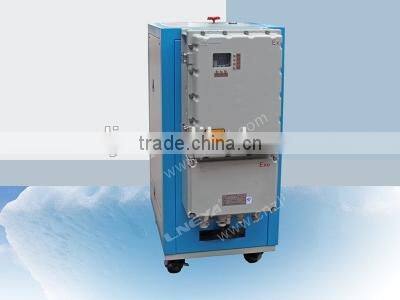

Mini lab using heating circulator heating chiller UC-A020
- 200 Set / Sets per Month
- Shanghai
You May Like
-
Hot sale high temperature control machine Heating circulation Heating box LY-1820
-
50~200 degree closed system Laboratory using heating circulator LY-5020
-
Apply to reactor Mini lab using heating circulator heating box UC-1820
-
High-Precision heating circulator heating chiller with large heating capacity UC-A2520
-
Industrial using high temperatue control machine heating circulator UC-A1520
-
50~300 degree Industrial heating thermostat Heating circulators UC-A2530
Product Details
| Brand Name | LNEYA | Model Number | UC-A020 | |
| Place of Origin | Jiangsu, China |
Product Description
Heating Circulator UC-A020
Description:
1.UC series with function from high temperature to cooling process, from 300℃~50℃.
2.Equipped with heating cooling container, with large heat transfer area, fast heat-up and cool-down, small heat transfer oil demand.
3.Can heat-up and cool-down continuously.
4.The whole cycle is full closed,there is no oil mist at high temperature, heat transfer oil can not be oxidized and browning.
5.With function of internal PT100 for correcting internal circulation.
6.The whole system is closed with expansion tank, the expansion tank and liquid circulation are thermal insulation, do not participate in liquid circulation, regardless of high or low temperature, the medium in expansion tank is limited to 60℃.
Advantages:
Small space required
Low filling Volume
High Pump Capacity
Rapid & efficient filling of the complete
application with venting
+60 °C max. expansion tank temperature
Simple operation
High level of safety through constant
monitoring
Technical Parameters:
Model | UC-1820 | UC-5020 | UC-A020 | UC-3030 | UC-5030 | UC-A030 | |
Temperature range ℃ | 50℃~170℃ | 50℃~200℃ | 50℃~200℃ | 50℃~300℃ | 50℃~300℃ | 50℃~300℃ | |
Controller | PID adaptive controller | ||||||
Temp. Control optional | Heat-conducting medium outlet temp. control | ||||||
Communication protocol | MODBUS RTU Protocol, RS 485 Interface | ||||||
Temperature feedback | Heat-conducting medium temperature feedback PT100 | ||||||
Temp. accuracy | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | |
Heating power | 2kW | 5.5kW | 10kW | 3kW | 5.5kW | 10kW | |
Cooling capacity | 300℃ |
|
|
| 3kW | 5.5kW | 10kW |
200℃ | 2kW at 170℃ | 5.5kW | 10kW | 2.5kW | 5kW | 9kW | |
100℃ | 1.3kW | 4kW | 8kW | 1.3kW | 4kW | 7kW | |
65℃ | 0.6kW | 1.8kW | 3.4kW | 0.6kW | 1.8kW | 3kW | |
| There is a heat exchanger in the system, it needs to cool by filling water, open the water valve automatically as request. | ||||||
Circulation pump | Max10L/min 0.7BAR | Max35L/min 2BAR | Max50L/min 2BAR | Max15L/min 2BAR | Max35L/min 2BAR | Max50L/min 2BAR | |
Heater | Orient electric heater | ||||||
Independent Temperature limiter | LNEYA | ||||||
Cooler | KAORI Plate heat exchanger | ||||||
Operation panel | Display setting temperature and testing temperature; Touch screen display | ||||||
Safety protection | Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection. | ||||||
Closed | The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature. | ||||||
Connection size | DN15 | DN20 | DN-20 | DN-20 PN-10 Connection flange | |||
Dimension | 320*420*500 | 500*550*800 | 500*550*800 | 500*550*800 | 600*600*1250 | 600*600*1250 | |
Weight | 35kg | 78kg | 88kg | 85kg | 95kg | 105kg | |
Power | AC 220V 50HZ 2.2kW (max) | AC 380V 50HZ 5.9kW (max) | AC 380V 50HZ 10.8kW (max) | AC 380V 50HZ 3.2kW (max) | AC 380V 50HZ 5.9kW (max) | AC 380V 50HZ 10.8kW (max) | |
Case material | Cold rolled steel | ||||||
Optional | Optional 7-inch color touch screen controller, temperature curve record, data export to excel format. | ||||||
Optional | SUS304 case material | ||||||
Optional power | 220V 60HZ three-phase, 440V~480V 60HZ three-phase | ||||||
