1032 New Type Corrugated Machine

1: Why Us?


We are reckoned as one of the leading manufacturers and exporters of roll forming machines and various other machines. Owing to our quality proven range, we have been able to become a preferred choice of our customers over other competitors due to the following reasons:
· Efficient quality control
· Procurement of basic material from authentic vendors
· Pool of experienced and proficient team
· Industrial expertise


2: Application

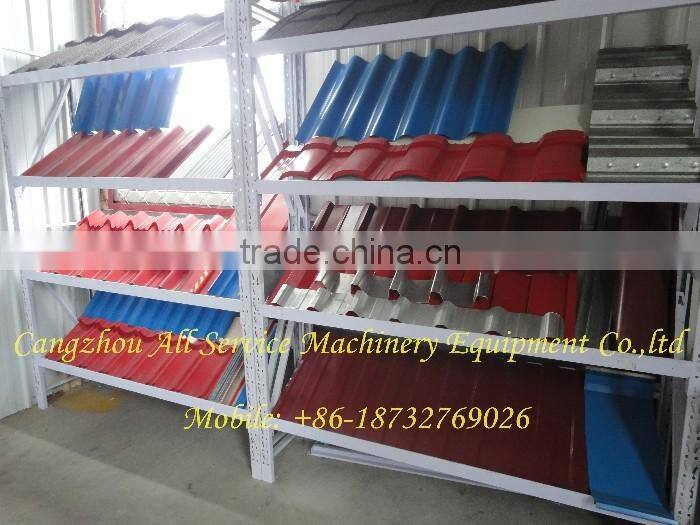

The roll forming machines can produce various of steel roof and wall panel; it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

3: Our advantages

Professional engineers team and sale team
Quickly reply you inquiry and questions
Competitive price and high quality machine configuration
Near Tianjin Port, delivery fast.
Exported for 17 years.
Design as customers need.

Customer in my factory:

4: Product Description

Technical parameters of 1032 new type corrugated machine

A. Technical Specification

1. Type and Specification: 1032 corrugated machine

2. Technique parameters of the processing line

1).Suitable material: aluzinc/galvanized steel/colored coated steel coil

2).Thickness of the plate: 0.27-1.0mm

3). Input width of the plate: 1220mm

4). Output width of the plate: 1032mm

5). Shaft material: 45# steel, quenching and tempering; shaft diameter: 80mm

6). Roller material: 45# steel, forging and hard chromium plating

7). Chromium plated roller surface: 0.05mm

8). Roller station/steps: 14 rows / stands

9). Forming speed: 18--25m/min

10).Wall thickness of the main forming machine: 30mm steel plate

11).Main forming machine body: 350mm H steel

12).Transmission chain is: 1.0’’; Reducer is 3kw Xingxing Cycloid which works stably and no noise.

13). Hydraulic motor

14). Voltage: 380V 50HZ 3-phase or as your requirement

15). Weight: about 3.7 tons

16). Dimensions of major structure: 4,800*1,650*1,150mm

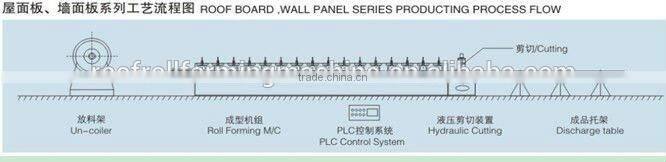

3. The production process chart of corrugated machine

Processes: Manual decoiler—Roll forming machine—PLC system—Hydraulic system—Mold pressing —Post cut—Stacking

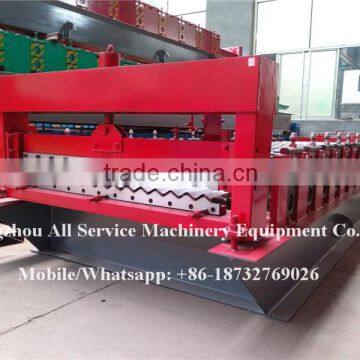

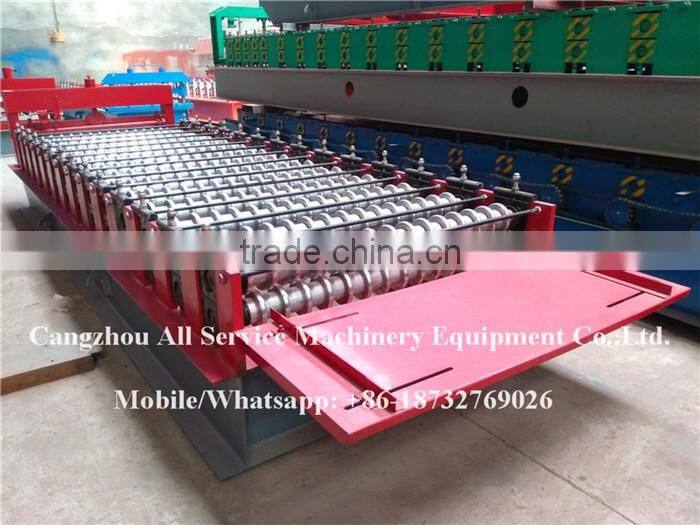

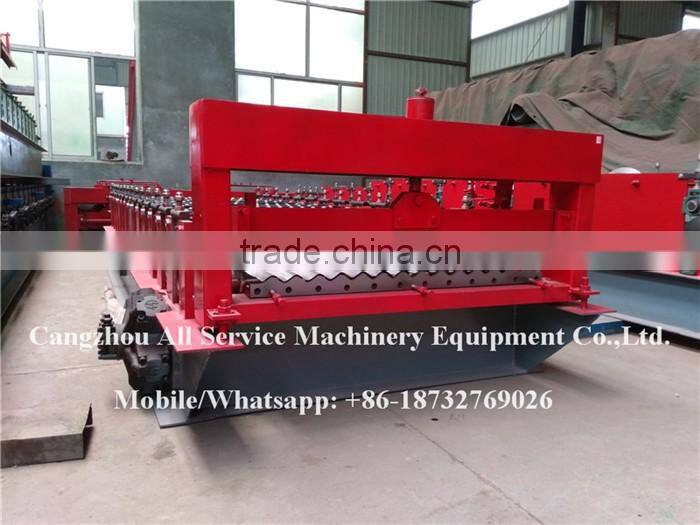

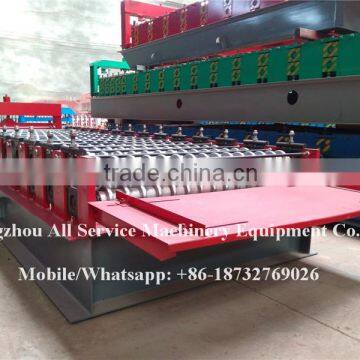

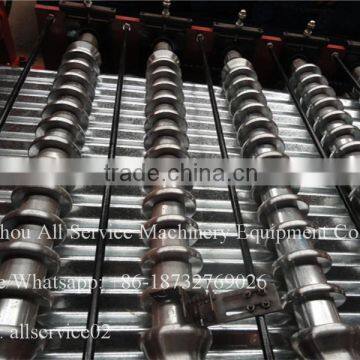

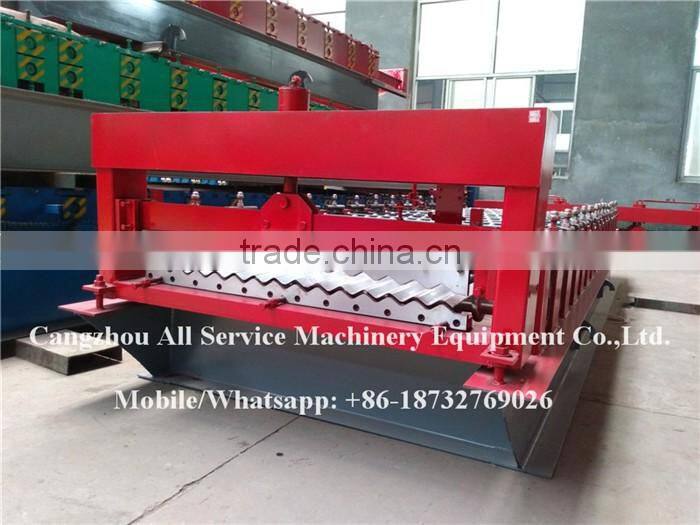

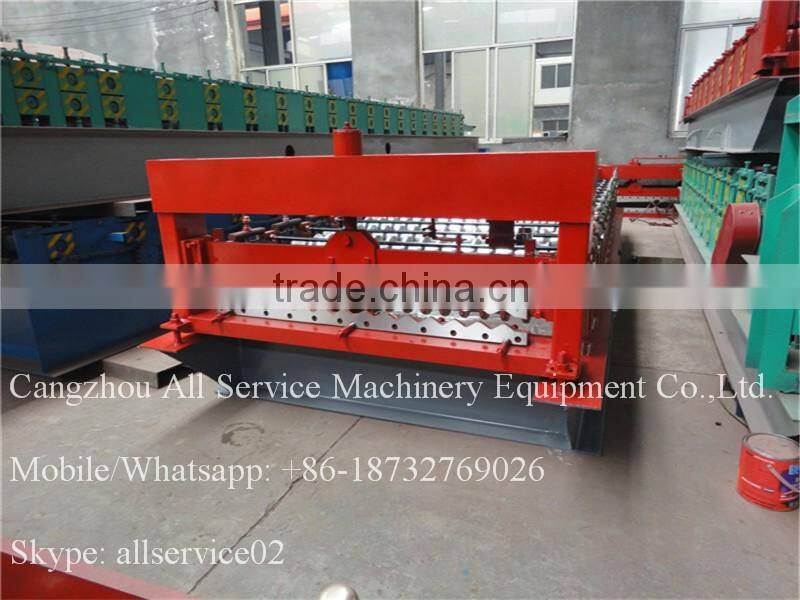

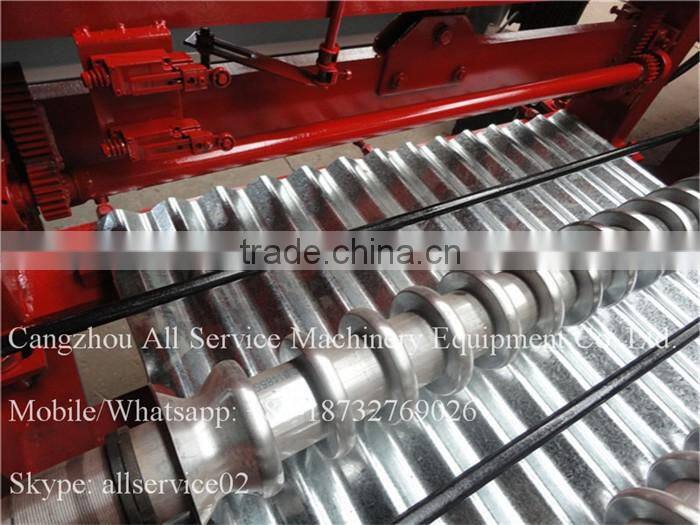

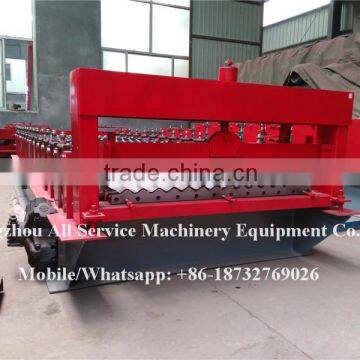

5: The detail pictures of 1032 new type corrugated machine

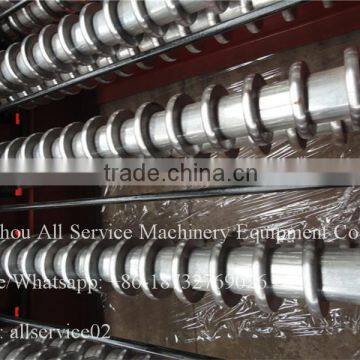

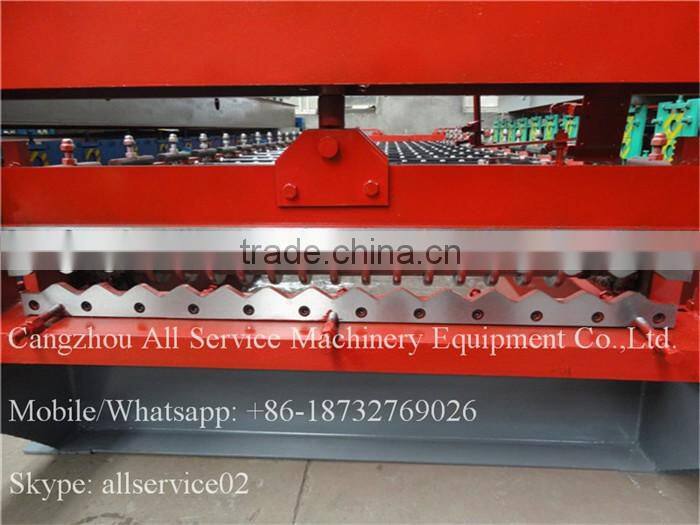

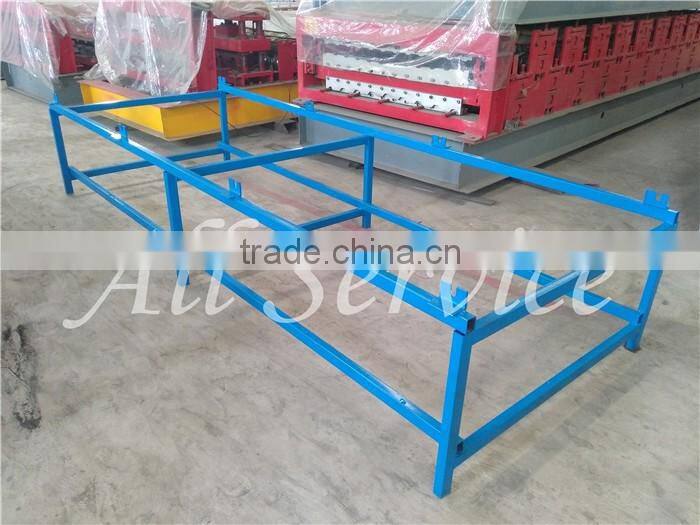

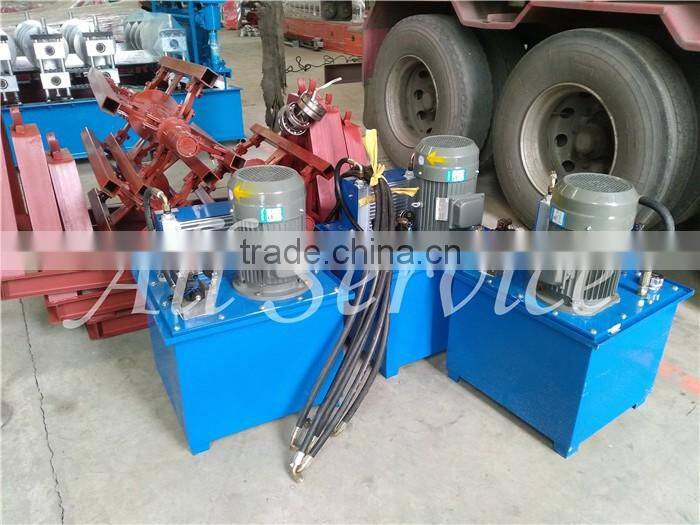

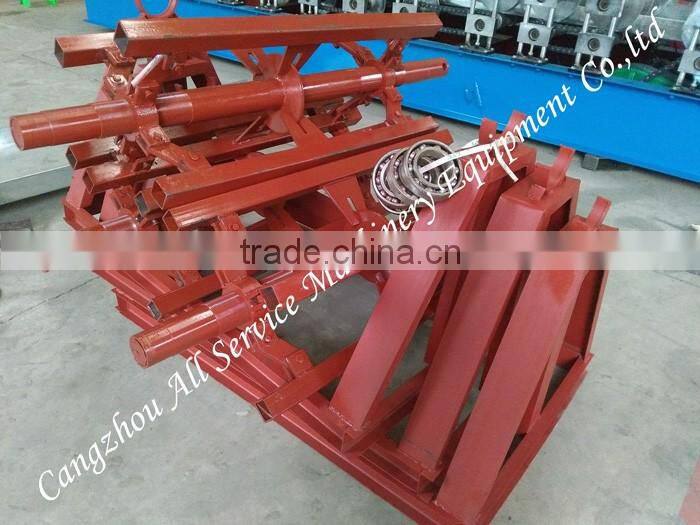

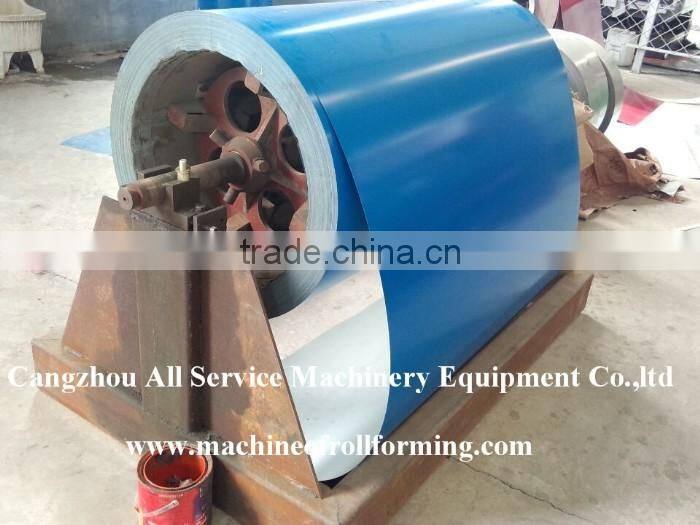

6: Other parts of the machine

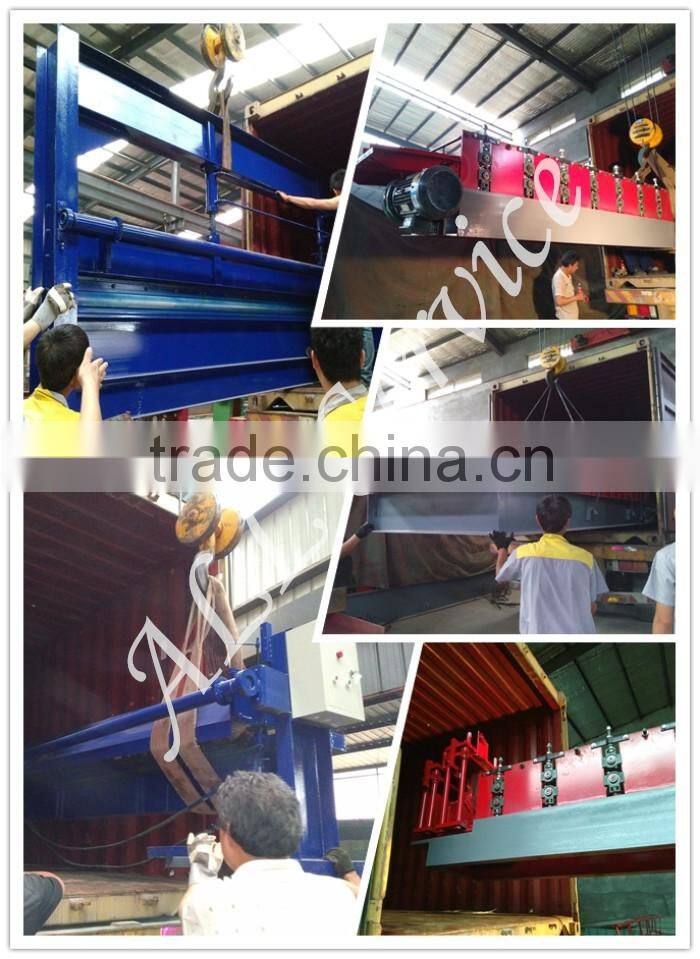

7: Packaging and shipping

1. Main machine and un-coiler are nude in container. (If need, we can also packed with water-proof plastic)
2. PLC control system is packed with water proof paper coverage.
3. All machines need one 20' or 40'container to hold.

8: Our Services

1: One stop service for customized machine
2: Offer installation & operating training
3: One year warranty of the whole machine
4: Life-long technical support for free

9: FAQ

1. Does one machine can only produce one style panel profile?
Not exactly. For wider and double layer making machine. It can produce more than 4 kinds of panels.

2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

4. How to get a quotation?
a. Give me the profile drawing and thickness, this is the important.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.

5. What can you do if the machine broken?
Our machine's warranty period is 12months! If the broken parts can't repair, we can send the new parts replace the broken parts free, but you need pay the express cost by yourself. If after warranty period, we can go through negotiation to solve the problems, and we supply the technical support for the whole life of the equipment.

6. Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.

7. How long the machine could be made?
Generally speaking, common corrugated roof machine could be made within 45 working days.

If you need machines in a hurry, we can make it for you less than a month.
