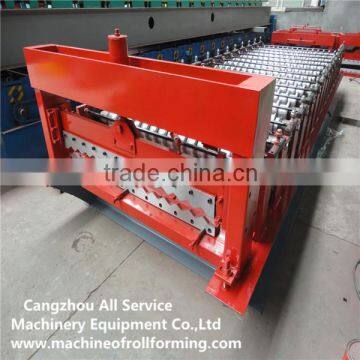

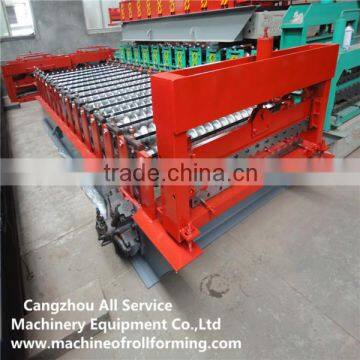

Metal Corrugated Roofing Sheet Roll Forming Machine
- TIANJIN XINGANG
- T/T
You May Like
-
Galvanized Corrugated Roofing Sheet Roll Forming Machine
-
Good Quality Corrugated Roofing Sheet Roll Forming Machine
-
All Service Supplier Roofing Corrugated Sheet Roll Forming Machine
-
Corrugating Iron Sheet Roll Forming Making Machine
-
Corrugated Roofing Profile Roll Forming Machine
-
Corrugated Roll Forming Machine Ppgi Roofing Sheet Making Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | AS | Model Number | according customers' request | |
| Power(W) | 5.5 Kw | Voltage | 380V 50Hz 3phases, 380V | |
| Dimension(L*W*H) | 6500*1300*1100 | Weight | 3.5T | |
| Certification | CE/ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Parameters of the metal corrugated roofing sheet roll forming machine :
No. | Spc. | |
1 | suitable material | Color Steel plate, galvanized sheet |
2 | Feeding width | 1200mm |
3 | Rows of rollers | 15 rows |
4 | Main power | 5.5kw |
5 | Hydraulic power | 4kw |
6 | Main frame | 300 H steel |
7 | Thickness of raw material | 0.3-0.8mm |
8 | Transportation system | Chain transportation |
9 | Thickness of chain | 1.0inches |
10 | Productivity | 8-10m/min |

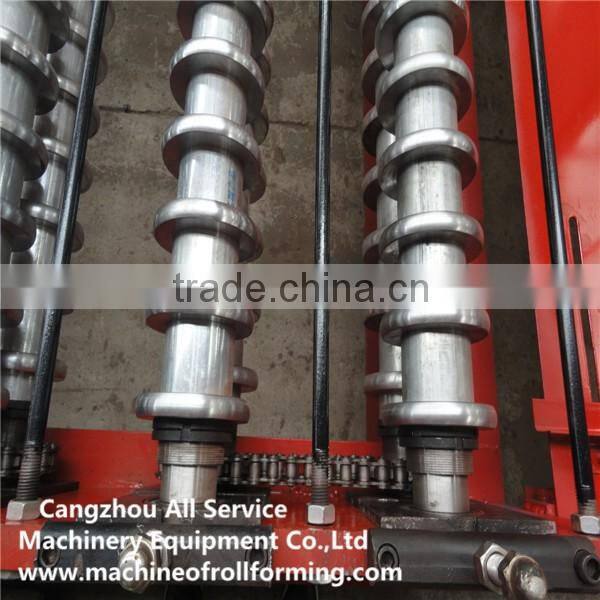

11 | Out diameter of shaft | 70mm (solid shaft) |
12 | Material of shaft | Material of shaft |
13 | Roller material | 45# steel polished and coated with chrome HRC55-60° |
14 | Shear mould | Gr12 |
15 | Voltage | 380V 50Hz 3phases |
16 | Control system |
PLC Frequency Control System with touch screen |
Working flow:
Decoiling the sheet — Sheet guiding — Roll forming — Measure
length Cutting the panel— panels to the supporter
Components of machine:
Decoiler | 1set |
Feeding & guiding device | 1set |
Main roll forming machine | 1set |
Hydraulic cutting system | 1set |
Controlling system | 1set |
Run out table | 1set |

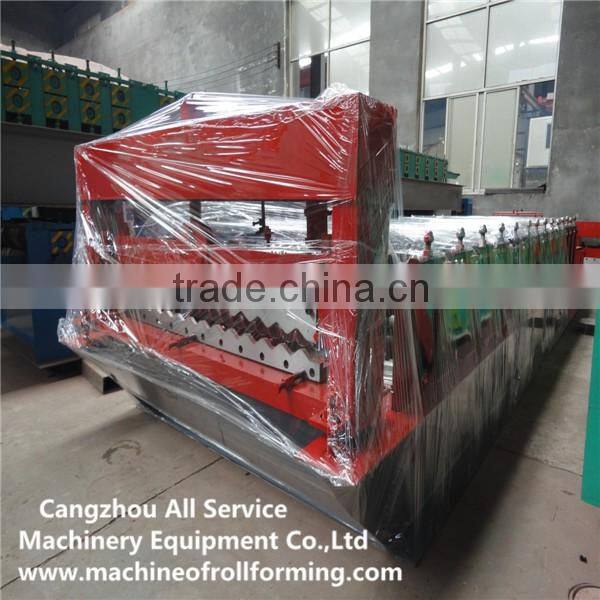

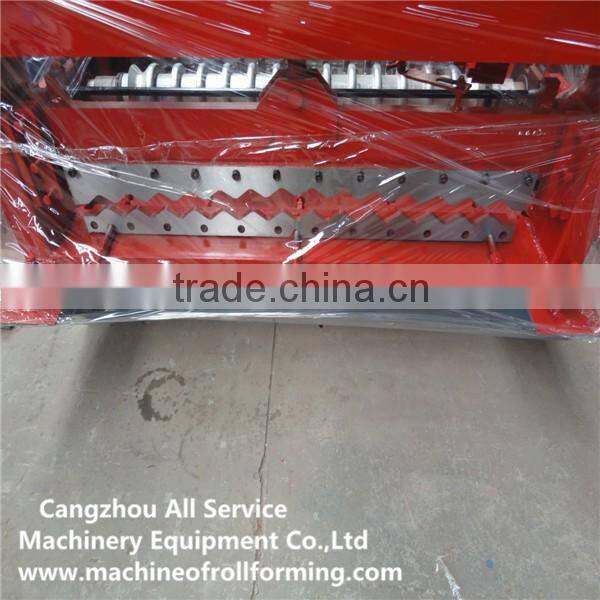

1:Nude in container with plastic film.
2:We can do the packaging according to your need.

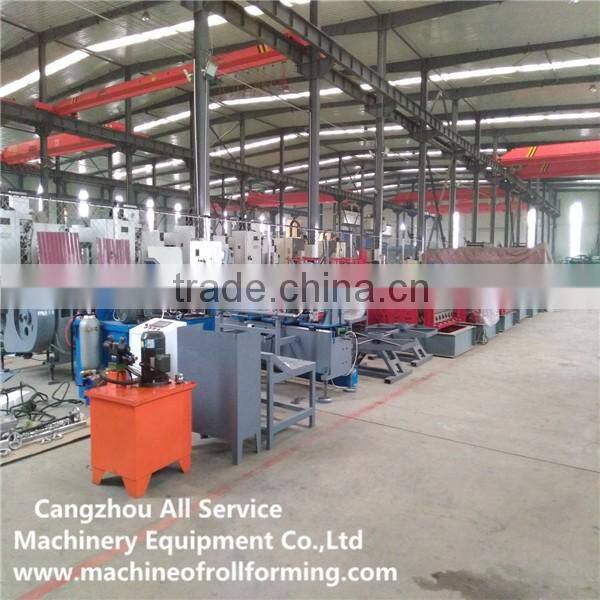

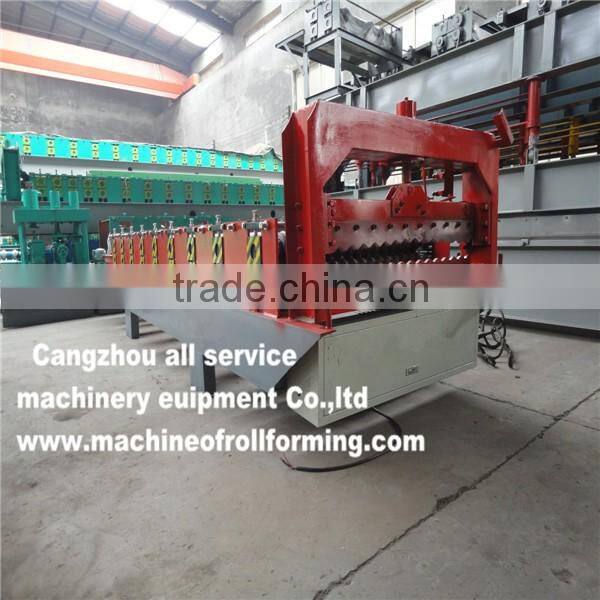

Our machines at customers' workshop:
1 | One-year quality assurance for all the machine |
2 | Technical staff available to service machine overseas |
3 | Permanent free for technical support |
4 | Design and produce according to your sample or drawing |
We are well recognized manufacturer and supplier of Cold Roll Forming Machine which are supplied to various industries across the nation. Our products are technically advance and designed with the use of latest standard features and functions. These products are highly durable and easy to use. We guarantee superior quality which are duly tested and provided in stipulated time frame.
Customers show:
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. How to get a quotation?
a. Give me the profile drawing and thickness, this is the important.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
5. What can you do if the machine broken?
Our machine's warranty period is 12months! If the broken parts can't repair, we can send the new parts replace the broken parts free,but you need pay the express cost yourself.If after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
6. Can you be responsible for transport?
Yes,please tell me the destination port or address.We have rich experience in transport.
7. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
8. How long the machine could be made?
Normally speaking, common roof profile roll forming machine could be made within 40 working days.
If you need machines in a hurry, we can make it for you less than a month.
