850 Corrugation Roofing Sheet Roll Forming Machine
- Tianjin Xingang
- T/T
You May Like
-
Automatic Corrugated Metal Roofing Tile Roll Forming Machine
-
Good Quality Corrugated Metal Roofing Tile Roll Forming Machine
-
AS850 Type Corrugated Metal Roofing Tile Roll Forming Machine
-
Metal Color Steel Roofing Sheet Roll Forming Machine
-
Metal Color Steel Roofing Tile Roll Forming Machine
-
1032 New Type Corrugated Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 7-15M/MIN | Place of Origin | Hebei, China | |
| Brand Name | AS | Model Number | 850 | |
| Power(W) | 3+3kw | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 7.35*1.2*1.5 | Weight | 3.5T | |
| Certification | CE/ISO9001 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1:Product Description:

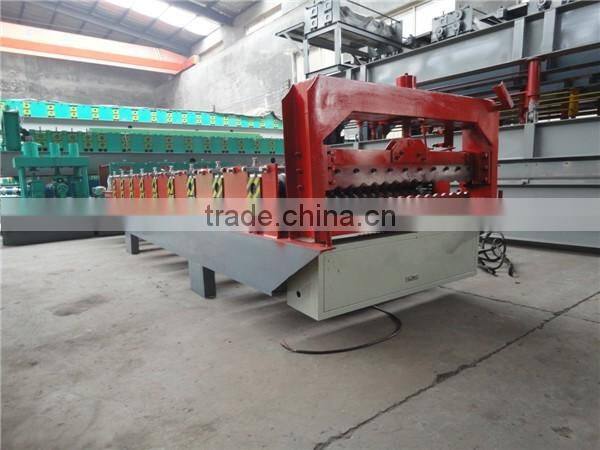

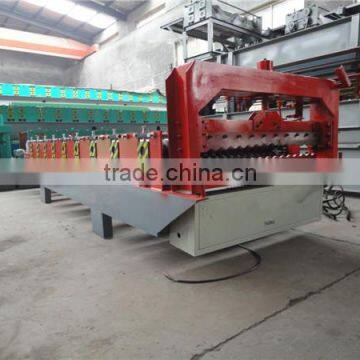

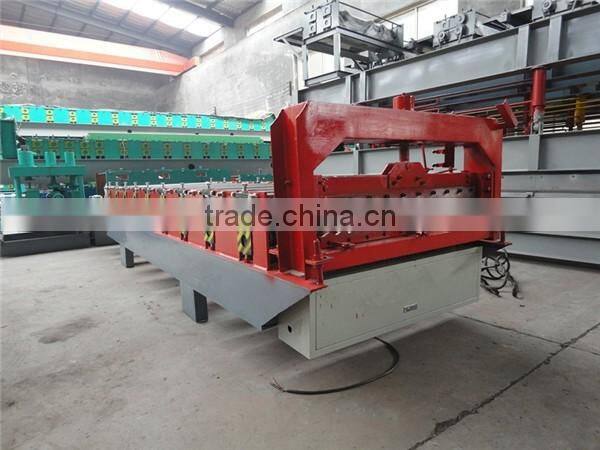

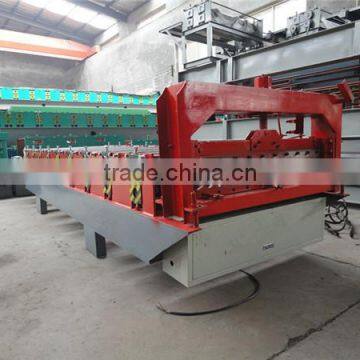

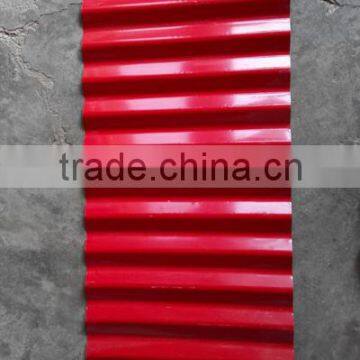

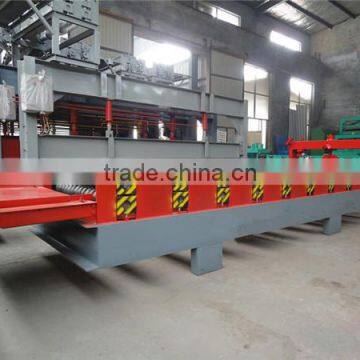

850 corrugation roofing sheet roll forming machine
The details information of 850 corrugation roofing sheet roll forming machine :
| Steps of forming | 9 rows |

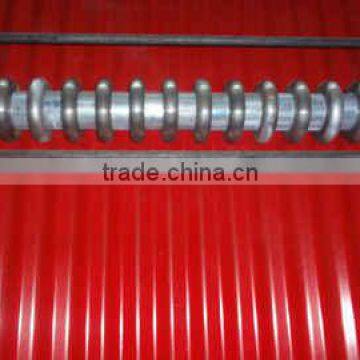

| Roller material | high grade NO.45 forged steel with 0.05mm hard chrome plating on the surface of plate. |
| Shaft material | high grade NO. 45 carbon wrought steel |
| Cutting blade | Cr 12 mould steel with quenched treatment |
| Diameter of shaft | 70 mm |
| Thickness of medium plate | 14mm |
| Main frame | 300 H steel |
| Main motor power | 3KW+3KW |
2: Packaging and shipping:
1:Nude in container with plastic film.
2:We can do the packaging according to your need.
3:Our services:
1:Our engineer can go to overseas to install the machine.
2:We can supply some parts for free.
3:Technical support is for free.
4: Company information:
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. How to get a quotation?
a. Give me the profile drawing and thickness, this is the important.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
5. What can you do if the machine broken?
Our machine's warranty period is 12months! If the broken parts can't repair, we can send the new parts replace the broken parts free,but you need pay theexpress cost yourself.If after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
6. Can you be responsible for transport?
Yes,please tell me the destination port or address.We have rich experience in transport.
7. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
8. How long the machine could be made?
Normally speaking, common roof profile roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.
