Gost Wedge Gate Valve Rising Stem Gate Valve With Hand Wheel
- TIANJINXINGANG SHANGHAI PORT NINGBO PORT
- T/T Credit Card PayPal
You May Like
-
Russian Standard Gost Gate Valve Metal Seated Flanged Casting Gate Valve
-
PYL Factory Gost Rising Stem Gate Valve 20#steel DN80 Gate Valve
-
GOST Flanged Gate Valve Ss304 Electric Driven Gate Valve
-
Russia Standard A216 Gate Valve Gost Stem Gate Valve DN65
-
BD VALVULA High Quality Industrial Full Sizes Gate Valve for Water Supply Pump
-
DN50 DN100 DN150 Standard Industrial Pump Water Supply Gate Valve Online
Product Details
| Standard or Nonstandard | Standard | Structure | Other, Gate, wedge gost gate valve | |
| Pressure | Low Pressure | Power | Manual | |
| Material | Casting | Temperature of Media | Other, Medium Temperature, Medium Temperature | |
| Media | Base | Port Size | DN40-DN600 GOST gate valve | |
| Place of Origin | Hebei, China | Model Number | Z41H-16C GOST gate valve | |
| Brand Name | PYL | Application | General |
Product Description
OUR PRODUCT OF GOST
GATE VALVES
THE MAIN TYPE AND MATERIALS OF OUR VALVES
| The main products of our company include: |
| (1) ANSI gate valve, DIN gate valve, GOST gate valve, Soft sealing gate valve, Knife gate vave, Flat gate valve |
| (2)Wafer type butterfly valve, flange type butterlfy valve, single eccentric butterfly valve, double eccentric butterfly valve, Three eccentric buterrfly valve |
| (3)Check valve, lift check valve, swing check valve, wafer type check valve, spring check valve |
| (4) ball valve, tee ball valve, 4 way ball valve, welding ball valve |
| (5)strainer, filter, Y type strianer |
| Materials |
WCB A216 ; Q235,ST37 ; LBC/LCC ; WC6/WC9 ; WCC ; CA15 A217 ; M-30C ; H.B/H.C ; HT250/GG25 ; GGG40 ; SS304 ; SS304L ; SS316 ; SS316L
|

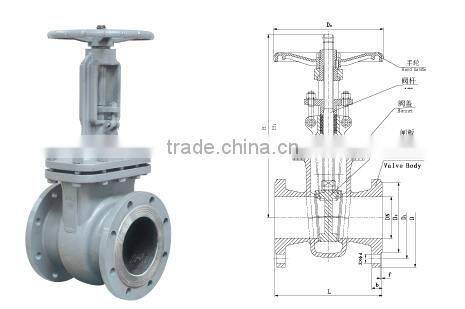

The structure of Gost wedge gate valve rising stem gate valve with hand wheel
The function of Gost wedge gate valve rising stem gate valve with hand wheel
| Type | Nominal DN(mm) | Measurement(mm) | Reference Weight (kg) | ||||||||
| L | D | D1 | D2 | b-f | Zxd | H | H1 | D0 | |||
| Z41H-16C | 50 | 180 | 160 | 125 | 102 | 16-3 | 4X18 | 288 | 341 | 180 | 14.61 |
| 80 | 210 | 195 | 160 | 133 | 18-3 | 4X18 | 343 | 426 | 215 | 24 | |
| 100 | 230 | 215 | 180 | 158 | 20-3 | 8X18 | 392 | 486 | 245 | 33.9 | |
| 150 | 280 | 280 | 240 | 212 | 24-3 | 8X22 | 559.5 | 704 | 275 | 67.03 | |
| 200 | 330 | 335 | 295 | 268 | 26-3 | 12X22 | 696 | 896 | 320 | 107.8 | |
| 250 | 450 | 405 | 355 | 320 | 28-2 | 12X26 | 815 | 1090 | 450 | 183 | |
| 300 | 500 | 460 | 410 | 370 | 28-2 | 12X26 | 886 | 1138 | 450 | 270 | |
| 400 | 600 | 580 | 525 | 480 | 32-2 | 12X30 | 1241 | 1604 | 500 | ||
The material of Gost wedge gate valve rising stem gate valve with hand wheel
| Partes name | material
|
| Valve body ,Bonnet,Handwheel | WCB |
| Disc | WCB+Stainless steel |
| Stem | stainless steel |
| Yoke nut | Brass |
| Bolt&Nutt | Iron |
| Gasket | Graphite+stainless iron |
| Packing | Graphite |
The measurement of Gost wedge gate valve rising stem gate valve with hand wheel
| Type | Nominal DN(mm) | Measurement(mm) | Reference Weight (kg) | ||||||||
| L | D | D1 | D2 | b-f | Zxd | H | H1 | D0 | |||
| Z41H-16C | 50 | 180 | 160 | 125 | 102 | 16-3 | 4X18 | 288 | 341 | 180 | 14.61 |
| 80 | 210 | 195 | 160 | 133 | 18-3 | 4X18 | 343 | 426 | 215 | 24 | |
| 100 | 230 | 215 | 180 | 158 | 20-3 | 8X18 | 392 | 486 | 245 | 33.9 | |
| 150 | 280 | 280 | 240 | 212 | 24-3 | 8X22 | 559.5 | 704 | 275 | 67.03 | |
| 200 | 330 | 335 | 295 | 268 | 26-3 | 12X22 | 696 | 896 | 320 | 107.8 | |
| 250 | 450 | 405 | 355 | 320 | 28-2 | 12X26 | 815 | 1090 | 450 | 183 | |
| 300 | 500 | 460 | 410 | 370 | 28-2 | 12X26 | 886 | 1138 | 450 | 270 | |
| 400 | 600 | 580 | 525 | 480 | 32-2 | 12X30 | 1241 | 1604 | 500 | ||
The usage of Gost wedge gate valve rising stem gate valve with hand wheel
The Gost wedge gate valve rising stem gate valve with hand wheel used in petroleum, chemical, thermal power plant under various working conditions such as the pipeline, cut off or connect pipe medium.Applicable medium: water, oil, steam, etc

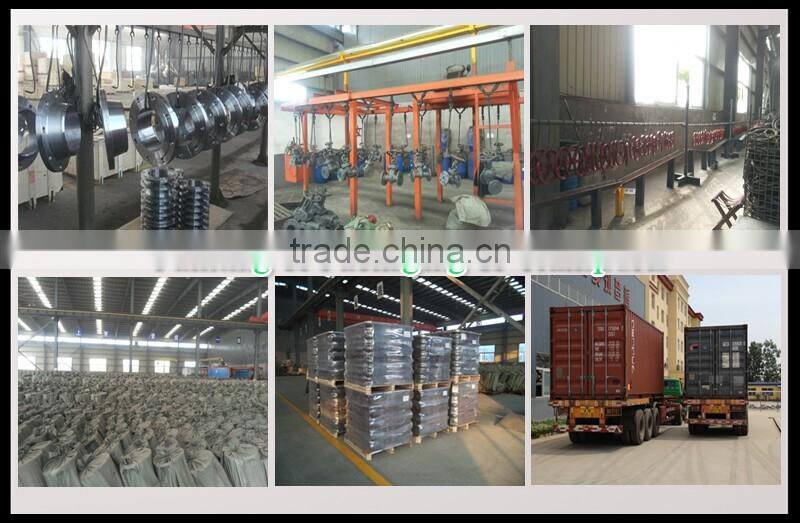

The production of Gost wedge gate valve rising stem gate valve with hand wheel
For the flanges, generally we use the wooden box and wooden pallet with plastic film, for the Gost wedge gate valve rising stem gate valve with hand wheel, we can use those two type, and also we use the Woven bag. In addtion, we can change the shape of the packaging according to customer requirements.
Except the Gost wedge gate valve rising stem gate valve with hand wheel, we can also supply the DIN standard flanges, JIS standard flanges, ANSI standard flange, and kinds of valves.
If you need the Non- standard products ,according to your drawings, we can produce the product, that you most satisfied.
In Hebei, the base of the processing and transformation of casting steel flanges (Suicheng,Baoding), and one of the largest Chinese Manufacturers of casting steel Valve are our supply chain,at the first link to ensure the clients' requirements. The delivery time is 7 -45 days .
OUR WORDL MARKET
Our main markets are South American , Spain, Italy, Russia , Middle East, Southeast Asia and other countries or areas.
1,Can i get free samples?
A: Yes,we can provide you the free sample, but you need to bear their own delivery costs.
2,Can I request to change the form of packaging and transportation?
A:Yes,We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3,Can i request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4,Can i have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear
their own the cost.
5,Can you produce the products according to my own drawings?
A:Yes,we can produce the products according to your drawings that will be most satisfy you.
If you have any questions or you are interested in our products,please don't hesitate to cantact us !!!
