YuFeng Price Automatic Labeling Machine/Shrinkage Machine / Shrink Tunnels

YuFeng Price automatic Labeling machine/Shrinkage Machine / Shrink Tunnels

automatic Labeling machine

Application

Suitable for various kinds of bottle type of fruit juice, tea beverage, dairy products, pure water, condiment, beer, sports drinks such as food and beverage

a. can set of round bottles, square bottles, elliptical bottle, bottle and body.

b. suitable for food, beverage, cleaning products, pharmaceuticals, bottle etc all kinds of plastic bottle, glass bottle, PVC, PET, PS, tin and other containers.

Feature & Advantages:

1. The standard position precision is high, and shrinkage can highlight the perfect shape of bottle.
2. High and stable mechanical structure of the whole machine adopts stainless steel protection box cover and aluminum alloy rigid frame, solid doesn't rust.
3. High quality positioning accuracy: all mechanical transmission design, using force set timescale, and various membrane materials 0.03mm-0.13mm film thickness, membrane material applies 5-10 range inner diameter can be adjusted.
4. Low maintenance cost: the spare parts of the machine is easy to change, low cost burden.
5. Reliable after-sale service: this machine various spare parts warehouse all have spare, can offer, and experienced engineers provides technical support.
6. Exclusive design :reciprocating cutting knives, adopt high technic, rigid body movements smooth, the tool life extend one times.
7. The structure of the machine is simple and easy, can ensure low failure rate, maintenance and simple.
8. Simple type center word column positioning, specifications, the operator is convenient to use easy replacement of manipulating plain, easiness, completely avoid the user's problems.

Technical Parameter:

Shrinkage Machine / Shrink Tunnels

Technical Parameter of equipment

Electrical source: AC 380V/220V 50HZ

Maximum power: 18KW

Working air pressure: 0.6 MPa

Air compressor requirement: exhaust pressure: 0.8MPa, flux: 0.25m3/min

All kinds of thermal shrinkage film for example: PE,PP,PVC,POF

Width of wrapping film: ≤600mm

Thickness of wrapping film: 0.03-0.15mm

Feeding conveyor height: 920mm(adjustable)

Length of feeding conveyor: 2600mm

Outlook dimension of equipment: 5050*3300*2100 mm

Total Weight of equipment: 1200kg

Technical parameter of packing products

Maximum packing dimension: 600*400*350 mm( big diameter bottle could be 450*300*400mm)

The length of thermal sealing & cutting knife: 700mm

Thermal shrinkage temperature: 160-250 °C

Speed: 8-12 packages

Normal bottle quantities in one package(round shape or rectangle)

4 rows  4*6   4*5  4*4  applicable bottle dimension: Φ40-Φ73mm

3 rows  3*4   3*3  3*5  applicable bottle dimension: Φ73-Φ98mm

2 rows  2*3   2*4          applicable bottle dimension: Φ98-Φ140mm

1 row   1*2                    applicable bottle dimension: Φ140-Φ300mm

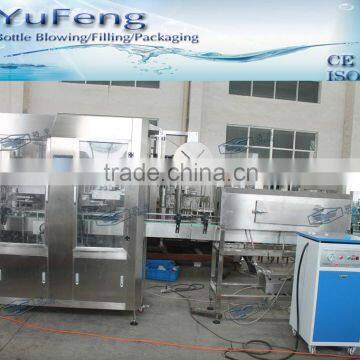

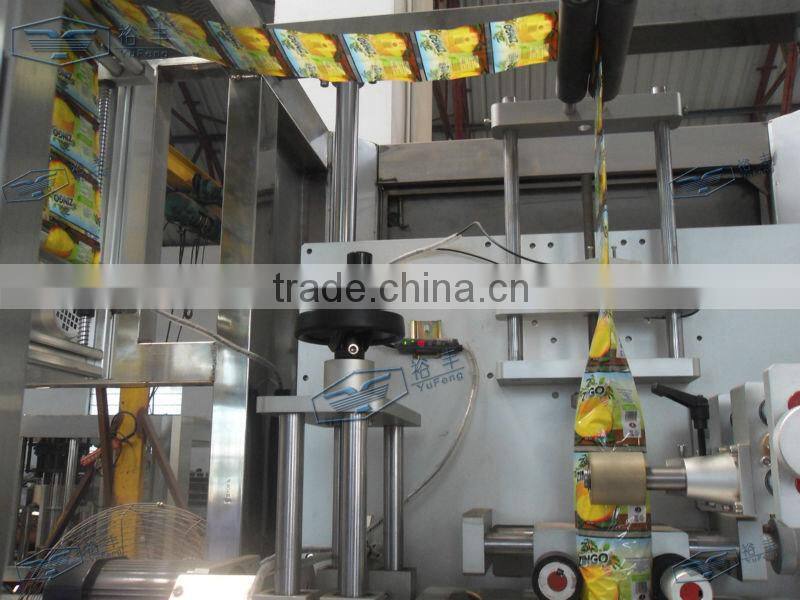

 Pictures ( automatic Labeling machine/Shrinkage Machine / Shrink Tunnels)
