Automatic soda water / drink filling machine / packing machine / bottling machine Quality Choice
- shanghai port for soda water filling machine
- T/T Credit Card
You May Like
-
3000BPH monoblock soda bottle filling machine / plant / line for PET bottles
-
Automatic 1000LPH soda water machine / sparking water machine
-
Automatic 1000LPH soft drink / soda water processing equipment / making line / production line
-
Flow meter installed 1000LPH carbonated beverage making machine / mixing machine
-
Customized 1000LPH carbonated drink processing line with dosing pump
-
DCGF40-40-12 PLC control PET bottled carbonated beverage filling machine with ring cylinder
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bottles | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V 50Hz | Power | 1.5kw | |
| Place of Origin | Jiangsu, China | Brand Name | YuFeng | |
| Model Number | DCGF8-8-3 | Dimension(L*W*H) | 1800*1000*1800mm | |
| Weight | 1500Kg | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
3000BPH monoblock soda bottle filling machine / plant / line for PET bottles
Soda water filling machine---Main parameter
Model | DGCF8-8-3 | DGCF12-12-4 | DGCF18-18-6 | DGCF24-24-8 | DGCF32-32-10 | |
Production Capacity(B/H) | 3000BPH | 2000-4000 | 4000-6000 | 6000-8000 | 8000-12000 | |
Filling Precision | <=5mm(Liquid Level) | |||||
Filling Pressure(MPa) | <0.4 | |||||
Polyester Bottle Satandard(mm) | Bottle Diameter: φ50-φ100 Height:150-320 | |||||
Suitable Cap Shape | Plastic Screw Cap | |||||
Water Pressure of Washing Bottle(MPa) | 0.18-0.25 | |||||
Water Consumption for Washing Bottle(kg/h) | 1000 | 1300 | 2000 | 2500 | 3000 | |
Spraying Position | 5 | 5 | 5 | 6 | 12 | |
Dripping Bottle Position | 2 | 2.5 | 3.0 | 3.5 | 7 | |
Gas Source Pressure(MPa) | 0.4 | |||||
Gas Consumption(m³/min) | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | |
Total Power(kw) | 5.03 | 5.03 | 5.03 | 6.57 | 8.07 | |
Total Weight(kg) | 1500 | 2000 | 3000 | 4000 | 5000 | |
Dimension(L*W*H)(mm) | 1800*1500*1800 | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3600*2200*2600 | |
Soda water filling machine---Rinsing part

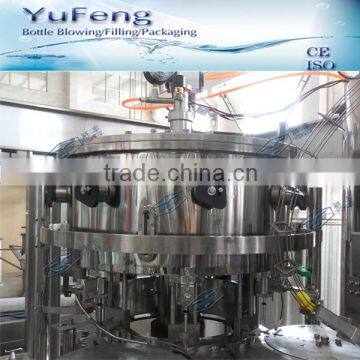

Soda water filling machine---Filling part (Nanqing valve for ref)
Soda water filling machine---Capping part
