Automatic Plastic Bottle Unscrambler (12000b/h)

Automatic Plastic Bottle Unscrambler

Description

LP series automatic bottle unscrambler is used to arrange disordered polyester bottles. The disordered bottles are carried into the bottle storage section by bottle elevator. With the help of the pushing force of the rotating disk, the bottles enter their position. With the function of the turning bottle device and the air-flow, the bottles are ordered into bottle stand-up-position and are carried into the next process with the air conveyor system. The machine adopts PLC control and the production capacity can be adjusted. In addition, the machine can automatically eliminate distorted and crowded bottles.

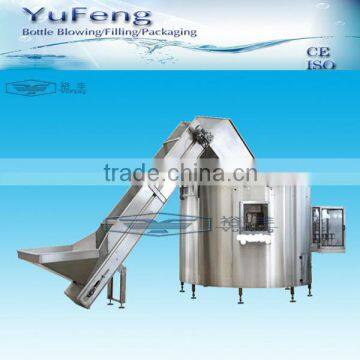

The following pictures are from YuFeng factory:

Bottle unscrambler for ref

Characteristics

- Automatically arrange bottles to the working position.

- Brand PLC control and motor.

- The machine is adopted high quality stainless steel which can be anti-corrosion, rust prevention, and long-life time use.

- The material of rotating disk is nylon or POM

- Easy operation and maintenance.

Parameter

1. Working station: 14

2. Production capacity: 8000-10000BPH

3. Maximum production speed:10000BPH

4. Air pressure: 0.7MPa

5. Air consumption: 1.5M3/ min

6. Suitable bottle type: diameter: Φ50mm-Φ96mm, height:165mm-310mm

7. Power of main engine: 1.5KW

8. Power of bottle elevator: 0.75KW

9. Overall dimension: Φ2240mm×2200mm

10. Total weight: 3200Kg
