Mini Truck Mounted Crane Bucket Crane Truck
- shanghai or any port in china
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Application | Construction | |
| Rated Loading Capacity | 2000 Kg | Rated Lifting Moment | 2T.M | |
| Max. Lifting Load | 2000kg | Max. Lifting Height | 9 m | |
| Span | 7.7m | Place of Origin | Hubei, China | |
| Brand Name | CLW | Model Number | CLWCRANE 022 | |
| Certification | ISO CCC | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

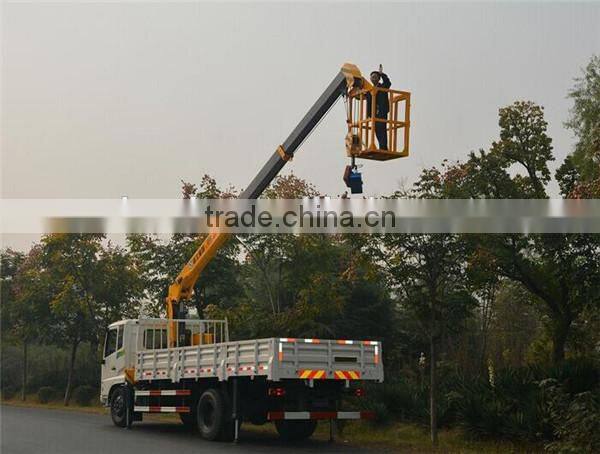

mini truck mounted crane bucket crane truck
paramater of crane truck
Item | unit | Parameter | ||||||||
Vehicle model |
| 3 Tons Truck with crane (LHD) | ||||||||
Horse Power | ps | 95 | ||||||||
Overall dimension | Mm | 5995*2165*2850 | ||||||||
Internal dimension | mm | 3150*2000*550 | ||||||||
GVW | Kg | 5690 | ||||||||
Rated loading capacity | 3000 | |||||||||
Mass in working order | 2690 | |||||||||
Wheel base |
| 3360 | ||||||||
F/R track base |
| 1385/1425 | ||||||||
Approach/departure angle |
| 24/14 | ||||||||
Exhaust/Hp | ml/ps | 2771/95 | ||||||||
Max speed | Km/h | 90 | ||||||||
Tire specification | 6.50-15 | Engine type | 4JB1-TC1 | |||||||
Traction system | 4*2 | transmission | 5-speed | |||||||
Number of axles | 2 | Electric system | 24v | |||||||
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2 | |||||||
Equipment | 1.Crane can be selected 2.Hydraulic valve is universal in the world on the safe side; three point floating type to protect crossbeam of the truck; all hydraulic pressure and 360°turning; new H-shape type; high precise drawn tube;24°tie-in. | |||||||||
Crane(XCMG Brand) | Number of sections | 2 | ||||||||
Max working radius | 7.7m | |||||||||
Max lifting height | 9m | |||||||||
Max lifting weight | 2000Kg | |||||||||
Working radius (m) | 2.1 | 3.0 | 4.0 | 5.5 | 7.0 | |||||
Loading weight(Kg) | 2000 | 1000 | 800 | 400 | 310 | |||||
Turing scope | 360° | Self-load of crane | 850Kg | |||||||
Hydraulic pressure | 16mpa | Tank volume | 25L | |||||||
Engine | diesel engine,4JB1-TC1 ,95hp | |||||||||
Production cycle | 30 workdays | |||||||||
| ||||||||||

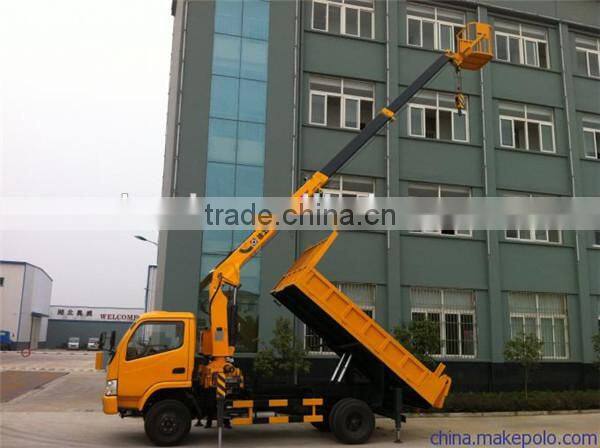

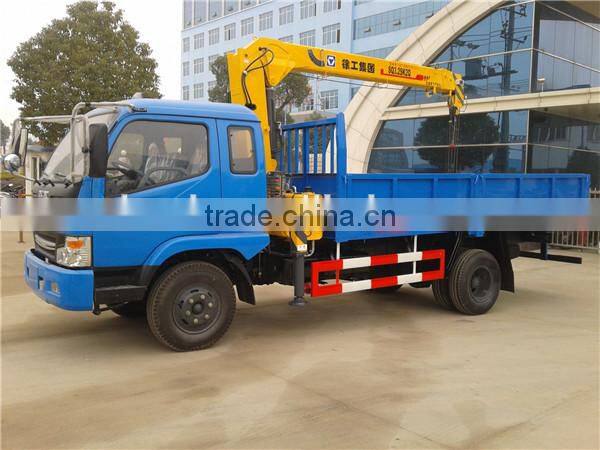

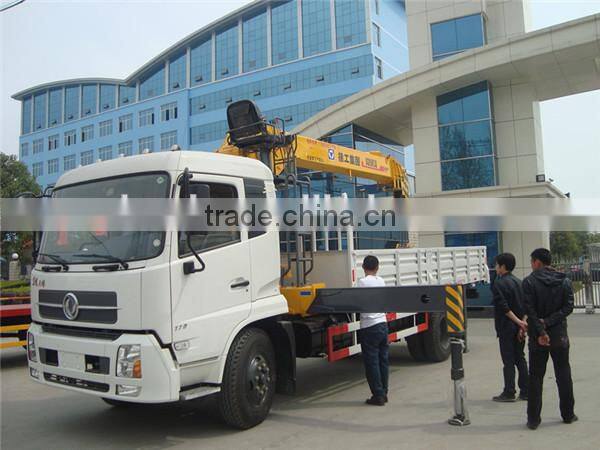

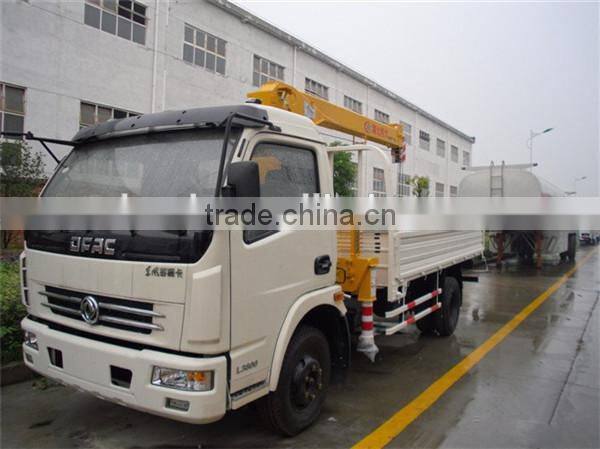

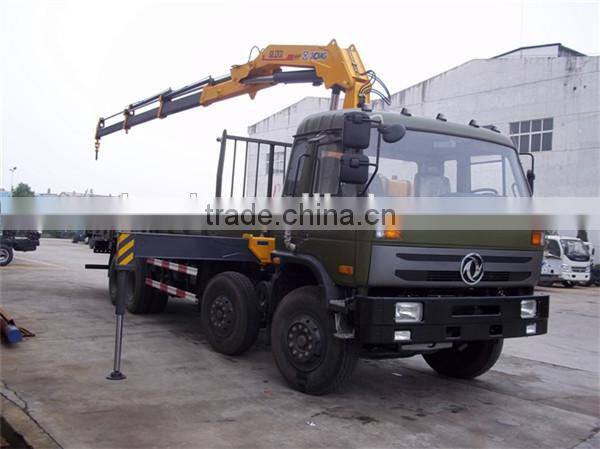

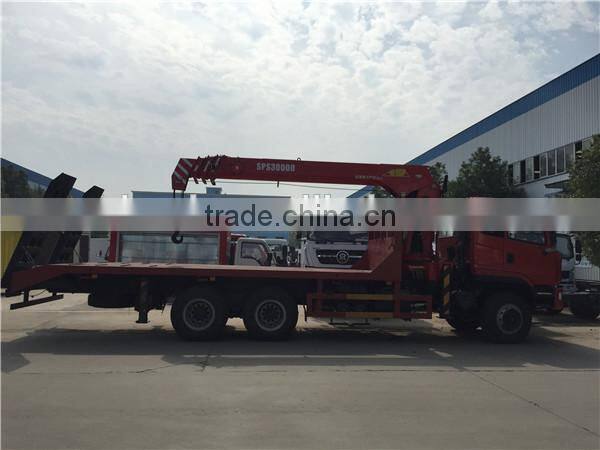

More picture of crane truck

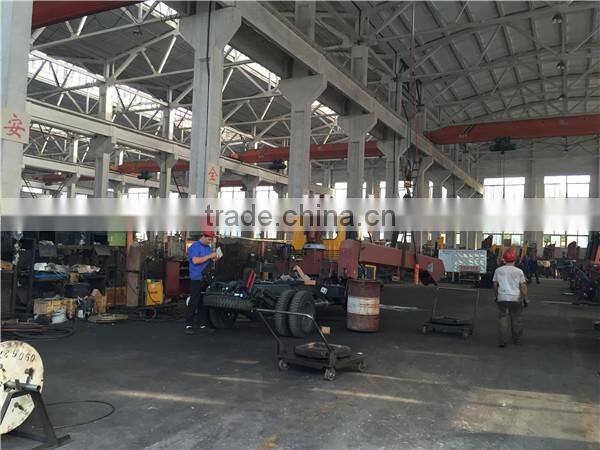

Picture of crane workshop

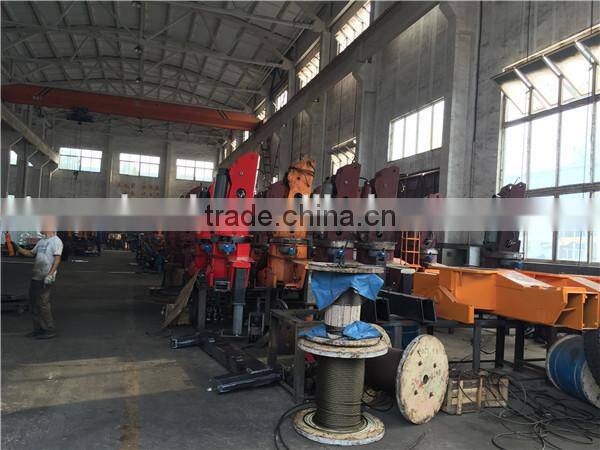

factory pictures
Packaging: nuked.
shipping: by bulk ship or RO-RO ship or container ship, it according customer's requirement.
Paymemt: T/T, 30% deposit, balance before delivery from Suizhou
1.12 months for three key parts(axles, engine and transmission)
2.easily damaged parts guarantee repairment.
fessionly provide configuration and installation scheme
Contact Information
Sales manage Alice tang
Email: clw19890913(@)
Tel/whatsapp/wechat: 0086-15926459597
Skype: alice891335
