Ups Power Supply Elevator Powerware Ups 1500 Watts

FOB Price

US$ 0.9 - 0.99 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

- Built-in phase auto adapt function
- Generator compatible
- Maintenance bypass available
- Isolation transformer available

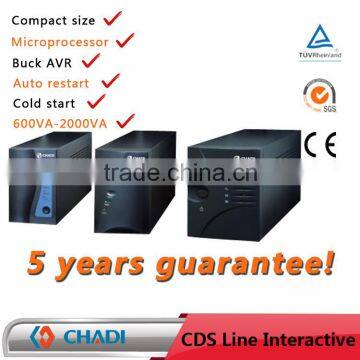

Ups Power Supply Elevator Powerware Ups 1500 Watts

Product Description

Brief Introduction
CDS-A series protect your power issue on personal computers. It provides comprehensive protection in a small and economic package. Not only offering greater comprehensive power protection against surges and spikes, it also provides pure voltage with built-in AVR stabilizer. The UPS continue providing clean and stable power to connected equipment while its embedded microprocessor controller guarantees high reliability, perfect for home or small office application.




Main Features
• Compact size • Excellent microprocessor control guarantees high reliability • Boost and buck AVR for voltage stabilization • Auto restart while AC is recovering • Simulated sine wave • Off-mode charging • Cold start function • Generator compatible (option)

MODEL	CDS-L600	CDS-L1000	CDS-L2000
Capacity	600VA/360W	1000VA/600W	2000VA/1200W
INPUT
Voltage	110/120 Vac or 220/230/240 Vac,Tolerance ±25%
Voltage range	81-145 VAC / 162-290 VAC
Frequency	60/50 Hz (Auto sensing)
OUTPUT
voltage range(battery mode)	110/120 VAC or 220/230/240 VAC±10%
frequency range(batttery mode)	50Hz ±1Hz
Transfer time	typical 2~6ms,not more than 10ms
wave form(time)	simulated sine wave
BATTERY (EXTERNAL EXTRA)
Battery Voltage	12 Vdc		24 Vdc
Floating charging voltage	13.7 Vdc ± 2%		27.4 Vdc ± 2%
Max charging current	2.5A/6A/10A pre-setable	5A/10A/15A/20A pre-setable
Indicators
Line mode	Green lighting
Battery model	Yellow flashing
Fault	red flashing
ALARMS
Battery mode	Sounding every 10 seconds
Low battery	Sounding every second
Overload	Sounding every 0.5 second
Battery replacement alarm	Sounding every 2 seconds
Fault	Continuously sounding
PROTECTION
full protection	over-load, over dis-charge and over-charge protection
PHYSICAL DATA
Product Dimension WLH (mm)	358.5 x 96.8 x 146.5	395 x 145 x 220
Packed Dimension WLH (mm)	379 x 186 x 260	415 x 165 x 270
Packing Method	Carton box, multiple pachages on pallets
N. weight (kg)	5.4	9.9	13.4
G. weight(kg)	7.4	11.9	15.4
ENVIRONMENT
temperature	0℃~40℃
Humidity	0-90 % RH (non-condensing)
Noise Level	Less than 40dB
* Product specifications are subject to change without further notice
