LCD Floor Stand Advertising Machine TFT Type Indoor Application
- Shenzhen
- T/T L/C Credit Card PayPal
You May Like
-
Touch Screen Kiosk / Touch Kiosk
-
Self-service Equipment Kiosk Manufacturer / Customized Retail Kiosks
-
Fast Food Kiosk / Take-away Restaurant Self-ordering Cash Payment Machine
-
Self-service Bill Payment Kiosks for Fast Food
-
Touch Screen Airtime Vending Machine
-
Unattended Visa Card and Cash Payment Terminal with Touch Monitor
Product Details
| Place of Origin | China | Brand Name | Hunghui / OEM | |

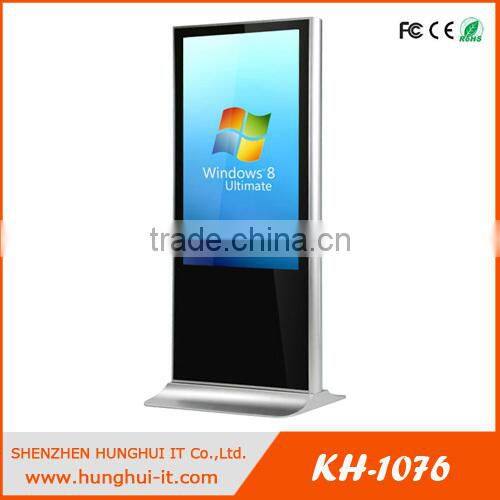

| Model Number | KH-1076 | Type | TFT | |
| Application | Indoor | Panel Size | 46inch | |
| Max Resolution | 1920*1080 | Viewing Angle | 178°/178° | |
| Pixel Pitch | 0.297x0.297mm | Color | 16.7 | |
| Contrast Ratio | 1400:1 | Brightness | 450cd/m2 | |
| Response Time | 8ms | Input Voltage | AC100V-240V (50HZ-60HZ) |
PE foam, Carton Case & Wooden Crate
Product Description
Product Quick details:
| Advertising Billboard Technical Specification | |
| Advertising Panel Parameters | Panel size: 32inch/42inch/46inch/47inch/55inch/65inch |
| Panel Brand: LG/Samsung Grade A class | |
| Panel Type: LCD (LED backlight mode) | |
| Max. Resolution: 1920*1080 (Full HD) | |
| Brightness: 450cd/m2 | |
| Dot Pitch: 0.630mm(H)x0.630mm(W) | |
| Contrast: 1400:1 | |
| View Angle: 178°/178° | |
| Panel Life: above 50000 hours | |
| Media Format | MP3 |
| MP4 (AVI: DIVX/XVID) | |
| MPG2 (DVD:VOB/MPG2) | |
| MPEG1(VCD:DAT/MPG1) | |
| JPG | |
| WMV | |
| VOB | |
| H.264 etc | |

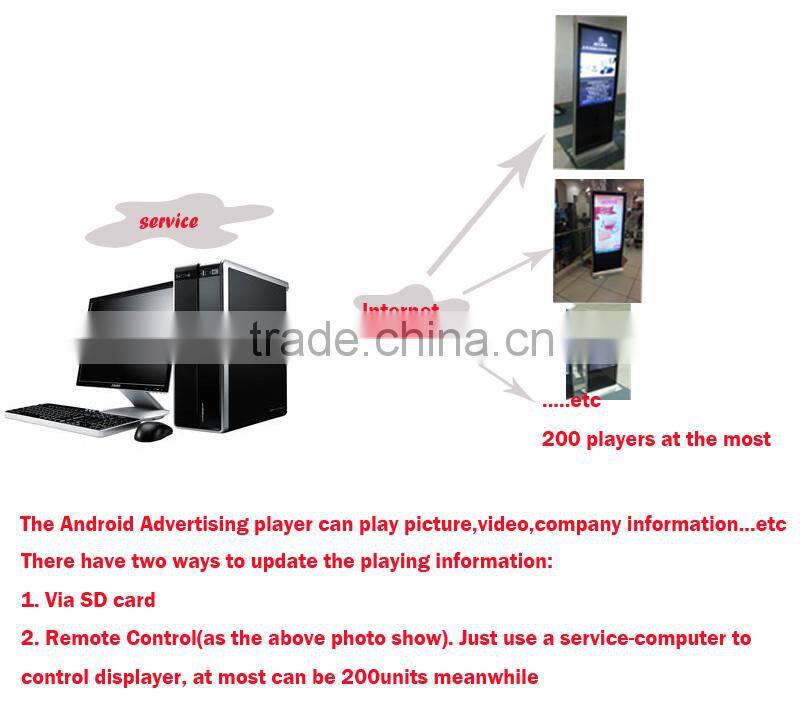

| Play From | Built-in Memory Flash |
| Background sever (Internet version) | |
| Power Supply | AC100V-240V, Frequency 50-60Hz |
| Working Temperature | 0℃~40℃ |
| Working humidity | 20%~80% |
| Advertising Function | |
| *It support 1080p, Landscape play/Vertical play; Split screen play;Scrolling marquee;Time switch;USB data import…etc function | |
| *Can turn on or off advertising player automatically on schedule | |
| *Play advertising program circularly and automatically | |
| *Build-in clock and calendar function | |
| *Audio system: build-in two speakers stereo | |
| *Support shockproof and dustproof function | |
| *Support software update function | |
| *Support functions of copying files between card and card (such as CF card to SD card, or SD to CF card etc.) | |
| Available Function | |
| *Machine Frame: We can customize the frame according to your requirements | |
| *Machine Colors: Different colors available, normally is black or silver | |
| *Opening Logo: The screen will show your logo when turn on the machine (For Free) | |
| *Menu Language: English, Chinese, Russian ,French, German, Italian, Spanish | |
| Optional Components | |
| Touch Panel | |
| Active Touch Area | 938mm x 532mm |
| Max Resolution | 4096×4096 |
| Transparency | > 90%, Up to 100% |
| Scanning Speed: | >80Scans/S |
| Response Speed | <8ms |
| Touch precision | 0.625mm |
| Minimum Touch object: | ≥5mm |
| Touch Intensity | Over 60,000,000 Single Point Touch |
| Communication | RS-232 Interface Port, USB Port |
| Life Time | >10 Year |
| Android Controller Parameters | |
| CPU | Allwinner A20, Cortex-A7, 1.0GHz ,Dual core |
| Storage | 4G (NAND FLASH) |
| Memory | DDR 3 1G |
| Storage Extension | Up to 32Gb SD/TF Card extension, also support SATA Driver extension |
| WiFi | High-performance WIFI 802.11b/g/n |
| I/O Port | 4xUSB,3xCOM,1xSATA,4xUART Extension port,1x RJ45, 1 X HDMI, 1 X VGA |
| Android | Android 4.2.2 |
| PC Version | |
| CPU | Intel Core dual core, i3 , I5, I7 |
| RAM | 4 GB DDR3 1333 RAM |
| Graphics | Integrated with CPU |
| Audio | 6 channel sound chip |
| NETwork interface card | 10/100/1000Mbits/sec Ethernet LAN connectivity included |
| Wi-Fi | High quality strong WiFi module included(802.11 n/g/b) |
| H.D.D. | 3.5 inch 500GB SATA |
| Speak | 2 built-in high quality stereo speaks (5w) |
| Mouse/Keyboard | Bluetooth suit (Optional) |
| Pre-Installed OS | Windows 7 /8 (without license) |
Control software can be provided after order confirmed.
- Fast response: Our Sales representative will respond your inquries within 12 working hours;
- Pre sales technical consultation: Our engineer team has more than 10-year experiences in kiosk industry, we will always offer you suitable solutions according to requirements;
- Software development support: Android system administor software and AD software will send after order confirmed
- software development, and we could also provide software developing service if you could provide necessary APIs
- Fast and on time delivery: We guarranty on time delivery, you could receive goods at expected time;
- Warranty: free warranty for 12 months, and lifetime maintenance support.
- Business Organizations: Supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
- Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
- Non-profit Organizations: Telecommunications, post offices, hospital, schools;
- Public Places: Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
- Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
- Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Product Features for 55 inch Digital Signage Touch Screen Advertising Display stands:
Playing advertising program automatically or circularly.
Free switching between split screen and full screen
Mixed displaying of videos and images can meet different requirements.
Support picture playing against backgroundmusic function.
Capable of setting scrolling text on the screen
4 groups of auto power-on/off timer, able to set those 4 groups of time a day
Files can be copied between different cards
External flash memory card capability: 1GB -32GB optional, such as CF, SD card and U-disk etc.
A protective layer of high light-penetrating steel glass on the LCD screen is adopted.
Outer shell is made by extra quality metal material, which is painted by powder-spray craftwork.
Parameter for IR Touch Screen:
-Active Touch Area: 938mm x 532mm
-Outline Dimension: 983± 2.0(W) X 576± 2.0(D) X 11.2mm± 0.5(H)
-Active Touch Area: 938mm x 532mm
-Outline Dimension: 983± 2.0(W) X 576± 2.0(D) X 11.2mm± 0.5(H)
-Touch Max Resolution: 4096×4096
-Transparency: > 90%, Up to 100%
-Scanning Speed: >50Scans/S
-Response Speed: <12ms
-Touch Type: Horizontal Multi Dot Touch Screen (Vertical way is optional)
-Touch precision: 0.625mm
-Minimum Touch object: ≥5mm
-Touch Intensity: Over 60,000,000 Single Point Touch
-Operation System: DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX
-Operating Voltage: DC 5V ±5%
-Power Supply: Keyboard Serial Interface
-Power: <1W (Current<200mA)
-Communication: RS-232 Interface Port, USB Port
-Vandal-Proof: Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break
-Temperature Operating: -41°C ~70°C
-Temperature Storage: -50°C ~85°C
-Altitude: 3000m
-Noise: None
-Life Time: >10 Year
Mini-PC Configuration Specifications
-CPU: Intel Atom N525 dual core 1.8G processor
-Main board: MCP7A-ION
-Chip: Nvidia MC79
-Capacity of RAM: 4G
-Hard Disk: 320GB
-Integrated Graphics: NVIDIA Geforce 9400
-Frequedcy: 533MHZ
-Video: Realtek AL C662 HAD7.1
-Network interface card: RTL8111C Gigabit Ethernet Controller for 10/100/1000 M/S Ethernet Lan Connectivity
-Mouse and keyboard: Wireless (Optional)
PE foam, Carton Case & Wooden Crate, Lead time: About 35 days after order and drawing confirmed.
