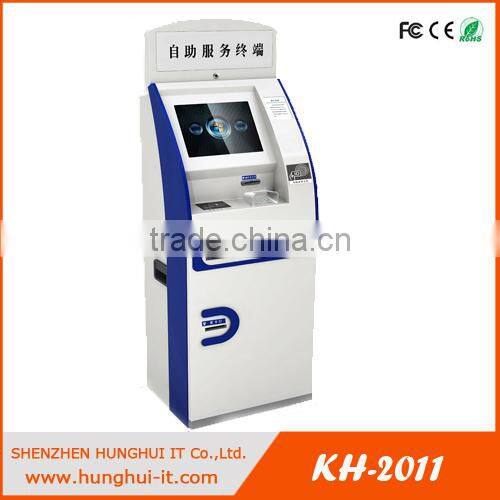

Multi-functional Payment Kiosk for Utility Bills

Self-service POS Terminal Basic Configuration

Items

Specification Details

Monitor

Screen Size

15", 17", 19", 22"...etc

Resolution

WSXGA+, 1024*768 / 1280*1024

Brightness

350cd/m2

Contrast

1000:1

View Angle

178 V/H

Touch Screen

Screen Size

15", 17", 19", 22"

Screen Type

SAW(Surface Acoustic Wave) touch, Infre Red Touch, Optical

Resolution

4096x4096

Feature

High Transparence, Precision and Durability

Computer Parts (can be customized)

Motherboard

Gigabyte H61

CPU

Intel Pentium G2030, dual core 3.0GHz, Cache 3MB, Intel HD Graphics (I3/I5/I7 optional)

RAM

DDR3 1333 2G/4G/8G

H.D.D

3.5inch 500G HDD, 16Mb Cache, 7200rpm, SATA 2.0 interface

Audio Chip

Integrated Realtek ALC887 8 channel audio chip

NIC

Onboard Gigabit Network Card

I/O Interface

8*USB2.0, 1*VGA, 1*LTP, 1*RS-232, 1*RJ-45, Integrated Network Card, Sound Card

Power Supply

Delta / Li-teon / Great Wall / HUNT-KEY

Stereo loudspeaker, 8Ω, 2x5W

Kiosk Cabinet

Material

Cold-rolled Steel ST12 SPCC with1.5mm-2.0mm thickness

Coating

Car painting technology / powder coated

Steel cabinet sprayed metallic paint, Anti-rust, Anti-acid, Anti-dust

Feature

Easy service access through front and back

Color or Logo

Customizable

Parts

*Independent power supply *Multimedia speakers *Internal ventilation system

Input Voltage

AC 110V-240V

Package

Safe packing with bubble foam, PE cotton and in poly wood case

Warranty & Service

1. The standard warranty time is 12 months free warranty. Warranty period can be prolonged by 2 parties agreement.

2. We guarantee that each unit is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.

3. During the warranty period, we can repair or replace the defective unit for free; After the warranty time, we will repair the defective unit and charge part cost.

4. When you receive the package, please open and check it before signing, if the product is damaged, ask a "Damage proof" from the delivery company.

5. Any question, please contact us by email or Trade Manager, emails will be responsed within 12 working hours. Also you can contact us by skype hunghui-rita directly.
