Home > Products > Temperature Transmitters > rtd Sensor Temperature Transmitter Manufacturer
rtd Sensor Temperature Transmitter Manufacturer
- 8000 Piece / Pieces per Month
- Chongqing
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | Haichen | |
| Model Number | Pt 100, Pt10 | Usage | Industrial | |
| Theory | Temperature Transmitter | Accuracy | A | |
| Temperature Range | -200~800℃, -40°C ~ +85°C |
Product Description

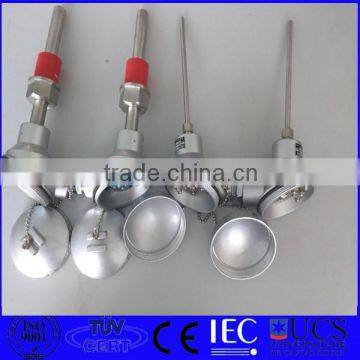

rtd Sensor Temperature Transmitter Manufacturer
Product description
1.material:304SS
2.tube size:8*300mm (L150*l150mm)
3.thread:1/2NPT
4. thermocouple structure : with thread , with aluminum junction box
5.Output signal:4~20mA
6.temperature:-200~800℃
7..certificaton:ISO9001
rtd Sensor Temperature Transmitter Manufacturer
Instruction
The transmitter outputs 4 ~ 20 mA signal, proportional to the measured temperature, to displayers, recorders or computers. It is embedded in the connection head of a thermocouple or RTD assembly. It is widely used in oil, chemical industry, metallurgy, power, light industry and other departments
Specifications
Thermalresistance | Measurementrange, | Minimumrange | Error(whicheverislarger) |
Ω | 0-400Ω | 10Ω | 4mΩor0.08% |
Pt100 | -200-850℃ | 10℃ | 0.2℃or0.08% |
mV | -10-100mV | 5mV | 0.08% |
K | -270-1372℃ | 50℃ | 0.5℃or0.08% |
E | -270-1000℃ | 50℃ | 0.5℃or0.08% |
S | -50-1768℃ | 500℃ | 1.4℃or0.08% |
B | 400-1820℃ | 500℃ | 2℃or0.08% |
J | -210-1200℃ | 50℃ | 0.5℃or0.08% |
T | -270-400℃ | 50℃ | 0.5℃or0.08% |
R | -50-1768℃ | 500℃ | 1.4℃or0.08% |
N | -270-1300℃ | 50℃ | 1℃or0.08% |
